6 Take the threaded stem and insert the end
with flange nut number 1 from the rear of
the engine past the rearmost bearing seat.
Insert it further through the bearing seats
and the new bearings until flange nut 1
protrudes from the front of the engine.

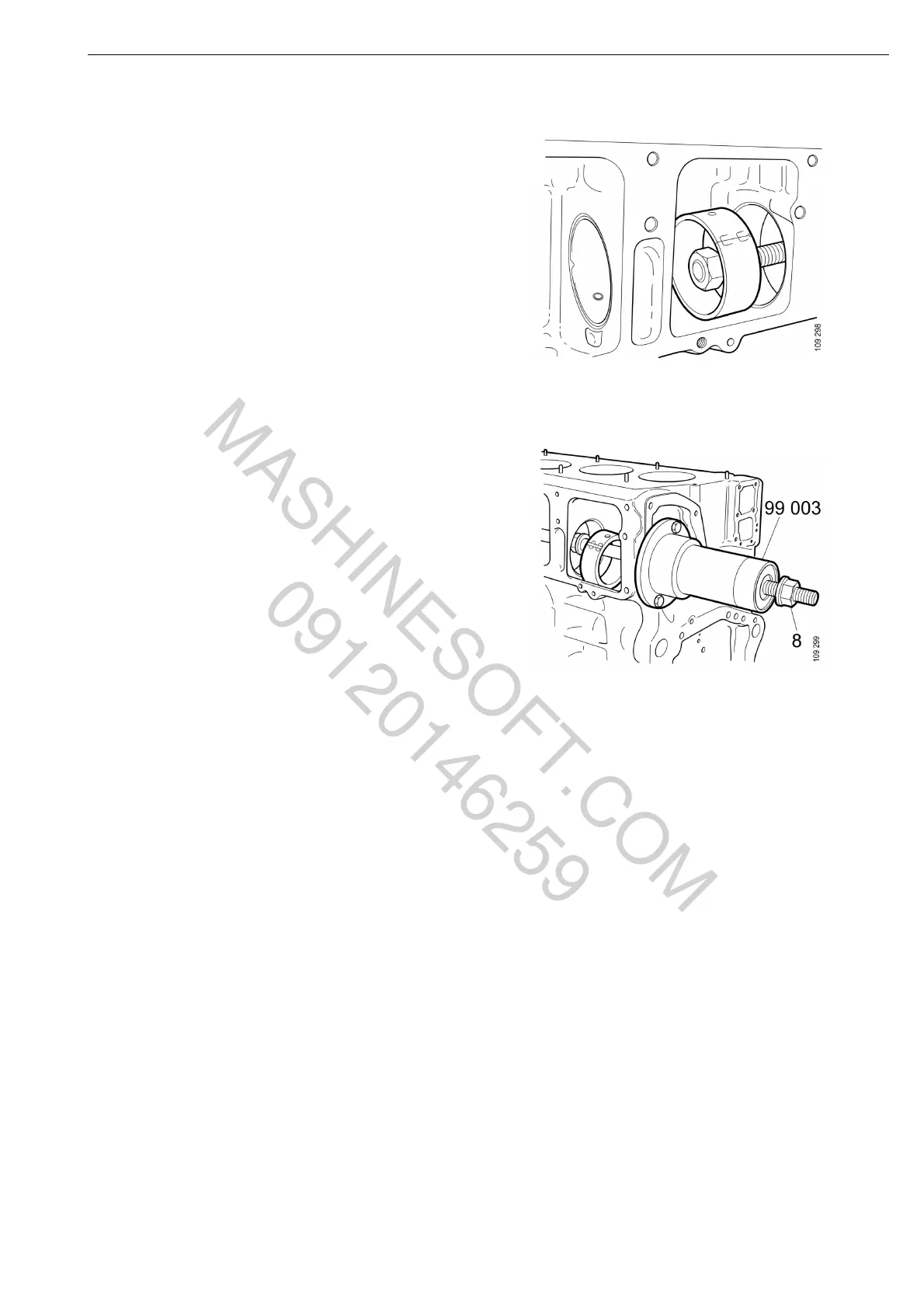

7 Screw the flange part of tool 99 373
securely onto hydraulic cylinder 99 003
with two M6x12 bolts. Press together
cylinder 99 003 if not already in neutral
position.
8 Screw the flange securely to the hydraulic
cylinder at the rear of the engine with two
M10x25 bolts.
9 Screw flange nut 8, from tool 99 373, onto
the threaded stem.
Cylinder block
