Scania DC11 - Page 68

68
©
Scania CV AB 2011, Sweden
01:03-02

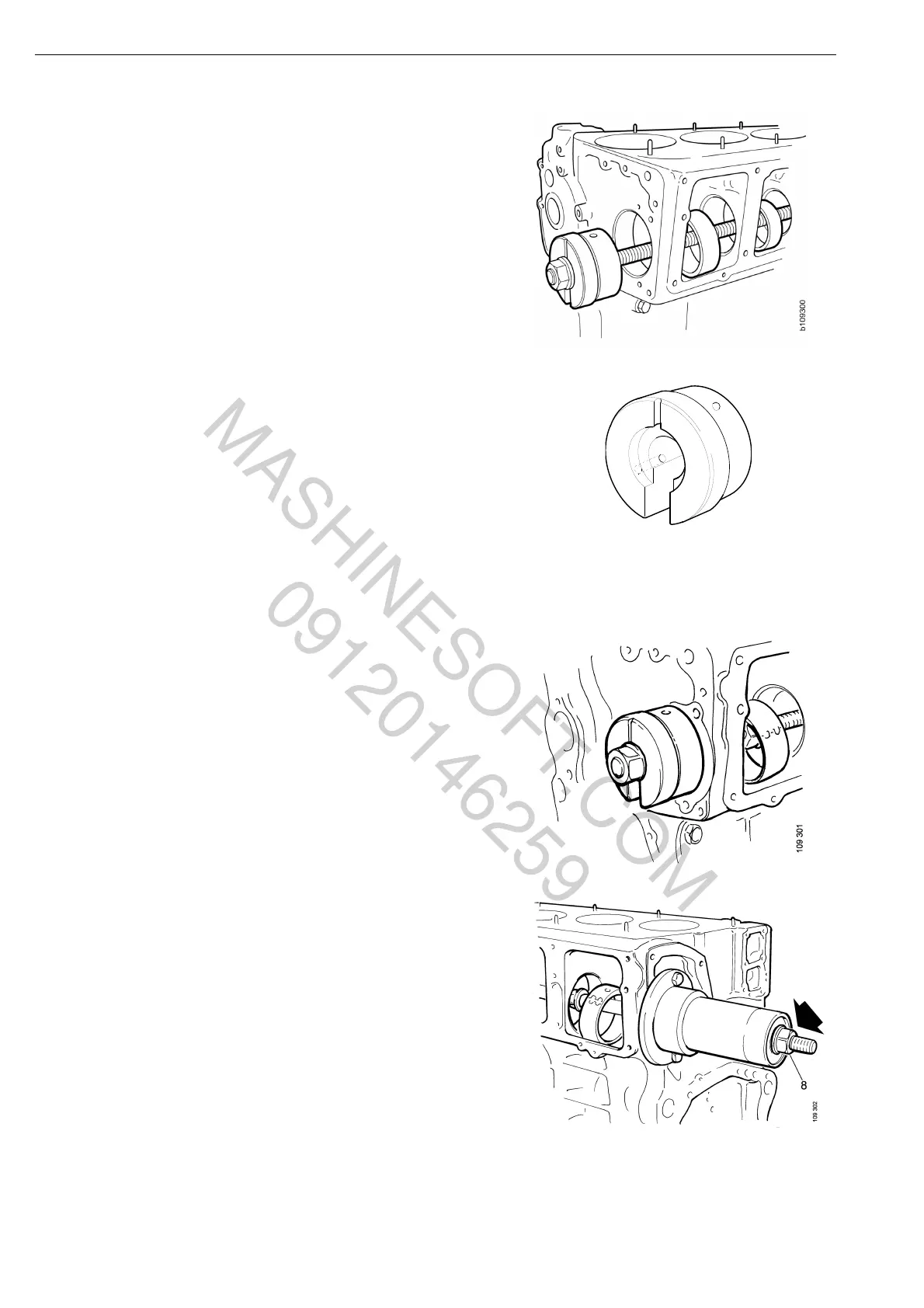

10 Hang a new bearing on the stem at the front
of the engine.
11 Place the press drift on the threaded stem
and place the bearing on the drift.
Note: The recess in the bearing joint must be
turned towards the flange on the press drifts.
Secure the bearing on the drift by placing the
spring-loaded ball in an oil way. The bearing is
correctly located on the drift when the ball and a
marking hole are centred on the bearing oil hole.
The bearing is correctly located on the drift
when the ball and a marking hole are centred on
the bearing oil hole.
109 689
12 Clean around the bearing contact surface.
Note: The marking on the drift must be
uppermost and vertical so that the oil hole in the
bearing will be central to the oil ways.
13 Hold the press drift with the new bearing
against the old. Secure the threaded stem
between the press drift and hydraulic
cylinder 99 003 by tightening flange nut 8
on the stem.
Secure the threaded stem by tightening
flange nut 8.
Cylinder block
