Scania DC11 - Page 71

01:03-02
©
Scania CV AB 2011, Sweden
71

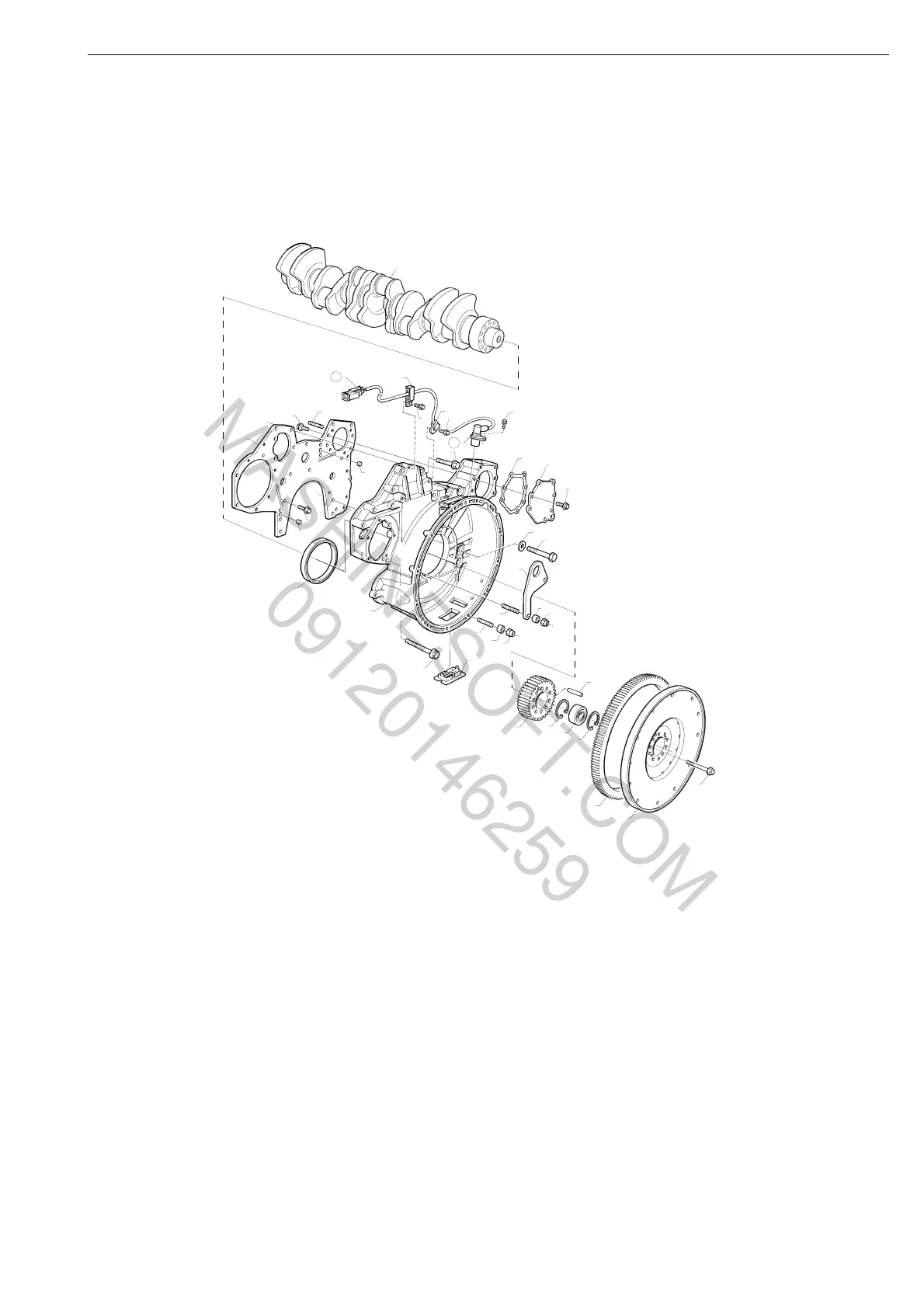

Flywheel housing
Exploded view
3
4
12
13
15
16
14
15
16
11
6
18
9
8
10
17
19
21
21
5
20
23
7
24
24
25
2
22
1
17
27
33
32
33
30
29
31
28
26
100029
1 Flywheel housing
2 Sealing ring
3 Bolt
4 Washer
5 Flange screw
6 Flange screw
7 Flange screw
8 Cover
9 Gasket
10 Flange screw
11 Cover
12 Lifting eye
13 Stud
14 Stud
15 Spacer
16 Lock nut
17 Rotational speed sensor
18 Flange screw
19 Clamp
20 Clamp
21 Bolt
22 Timing gear plate
23 Stud
24 Pin
25 Flange screw
26 Crankshaft
27 Crankshaft gear
28 Pin
29 Flywheel
30 External ring gear
31 Bolt
32 Ball bearing
33 Circlip
Flywheel housing
