Scania DC11 - Page 78

78
©
Scania CV AB 2011, Sweden
01:03-02
Removal
1 Remove the screw for the pulley and extract
the pulley using puller 587 321 and support
drift 98 647.

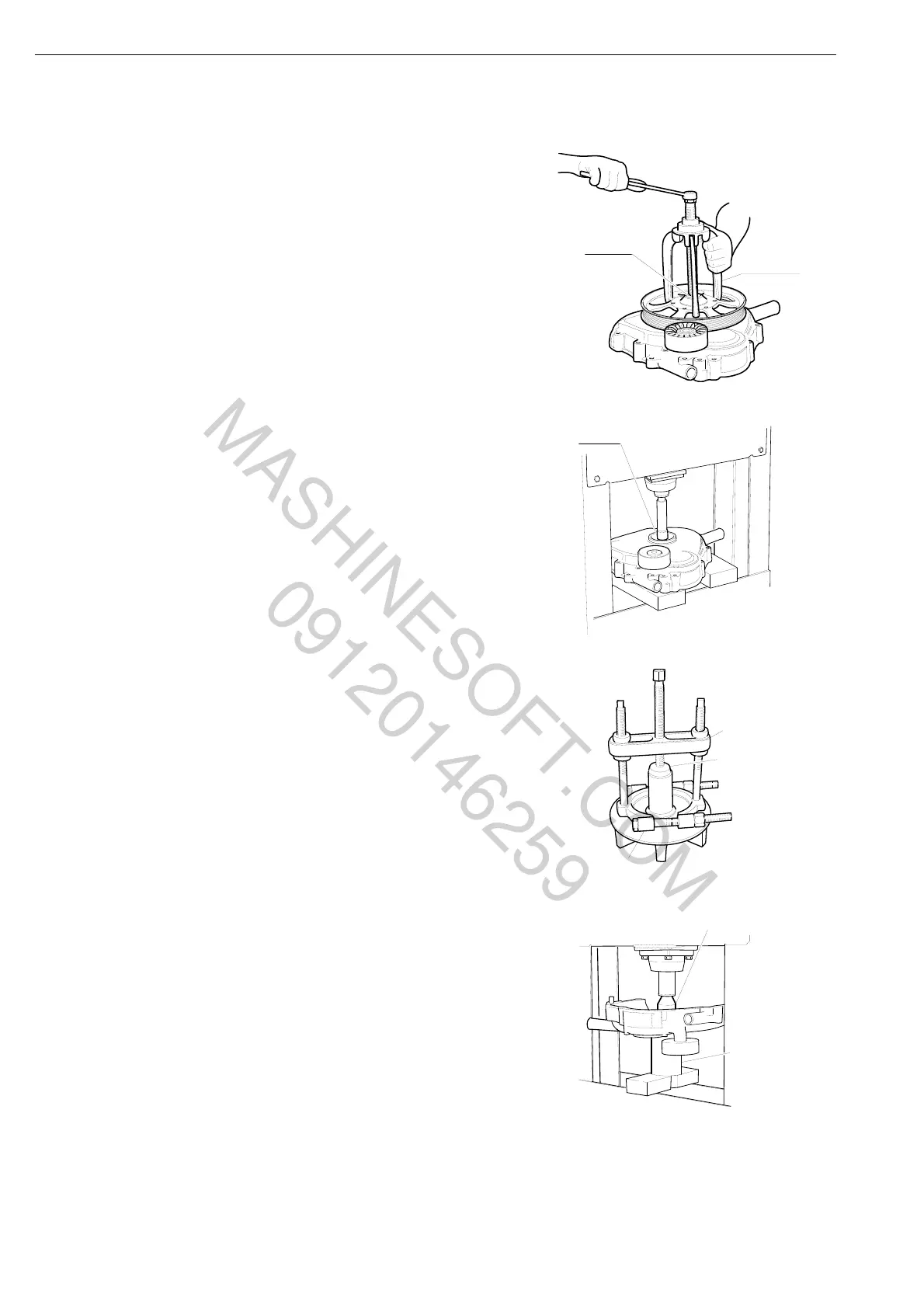

01_1373
587 321
98 647
2 Remove the retaining ring.
3 Press the shaft out of the fan coupling
housing using drift 98 622.
01_1374
98 622
4 Extract the bearing inner race from the
spindle using pullers 587 318 and 587 319
and drift 98 647.
01_1375
587 319
98 647
587 318
5 Place the extracted bearing inner race on the
bearing in the fan housing. Press the bearing
out of the fan housing. Use drift 87 752 and
counterholding tube 98 334.
01_1376
98 334
87 752
Fan coupling
