Some Definitions:
I = Feed rate in kg/hr or t/hr
Material amount discharged from belt
per unit time
Z = Delivery rate in kg or t
Material amount fed out = feed rate x feed time
V = Belt speed in m/s
Q = Belt load in kg/m
Material weight on one belt meter
Measuring Principle:
Belt load Q and speed V are continuously measured
and multiplied.
The result is feed rate I used to determine delivery
rate.
I in kg/hr
Q in kg/m
V in m/s
Measurement techniques:
n
Precision AC voltage amplifier with continuous
correction of zero point and range
n
Highly resolving analog-to-digital converter
The integrated method is designed to efficiently
suppress line voltage interferences.
n
16-bit microcontroller
n
Unlimited storage of counter readings,
configuration and calibration data.

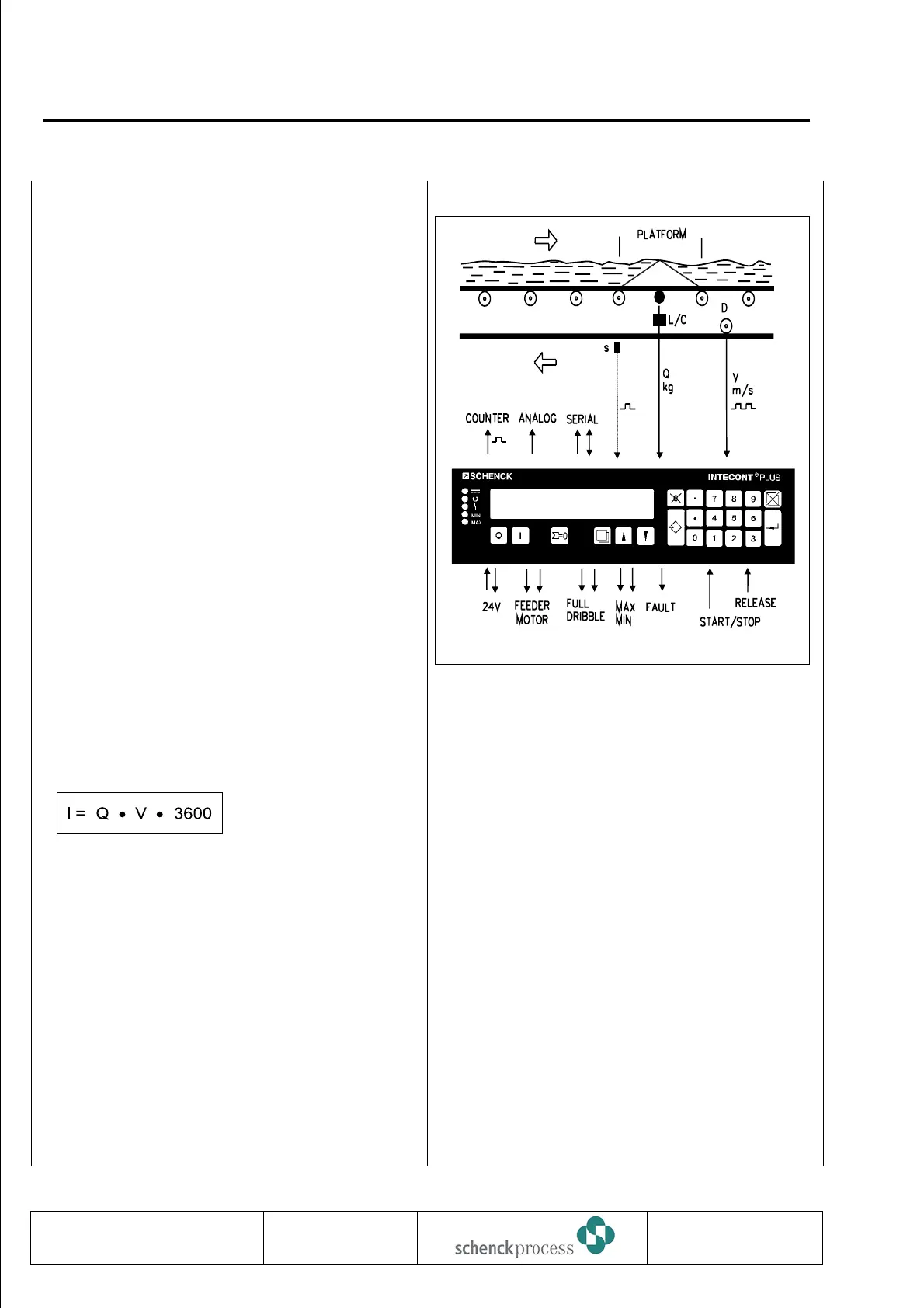

The basic diagram shows all inputs and outputs.
L/C = Load cell for acquisition of belt load Q
D = Speed transducer
S = Belt circuit sensor for automatic belt
influence compensation BIC
(non-standard)
24 V = Power supply
V = Speed transducer
Q = Load cell
ANALOG= Analog output selectable for feed rate,
belt load, belt speed
SERIAL = Serial interfaces for printer and host
computer
MIN = Relay output for limit value monitoring
Open = MIN value exceeded down
