SCOTT Scotty 5000 - Page 149

REF. REGISTER BOARD
ADJUSTMENT ASS’Y
(ITEM #2)
REF. REGI STER
BOARD ADJUSTMENT
ASS'Y (I T EM # 1)
REF. PILE FEED DRIVE &
TENSIONER ASS”Y (ITEM
#3)
REF. VACUUM
BAR ASS’Y
(ITEM #5)
5-14
5 SCOTTY 5000 PARTS
F--9999--8 08/2006 Issue 1

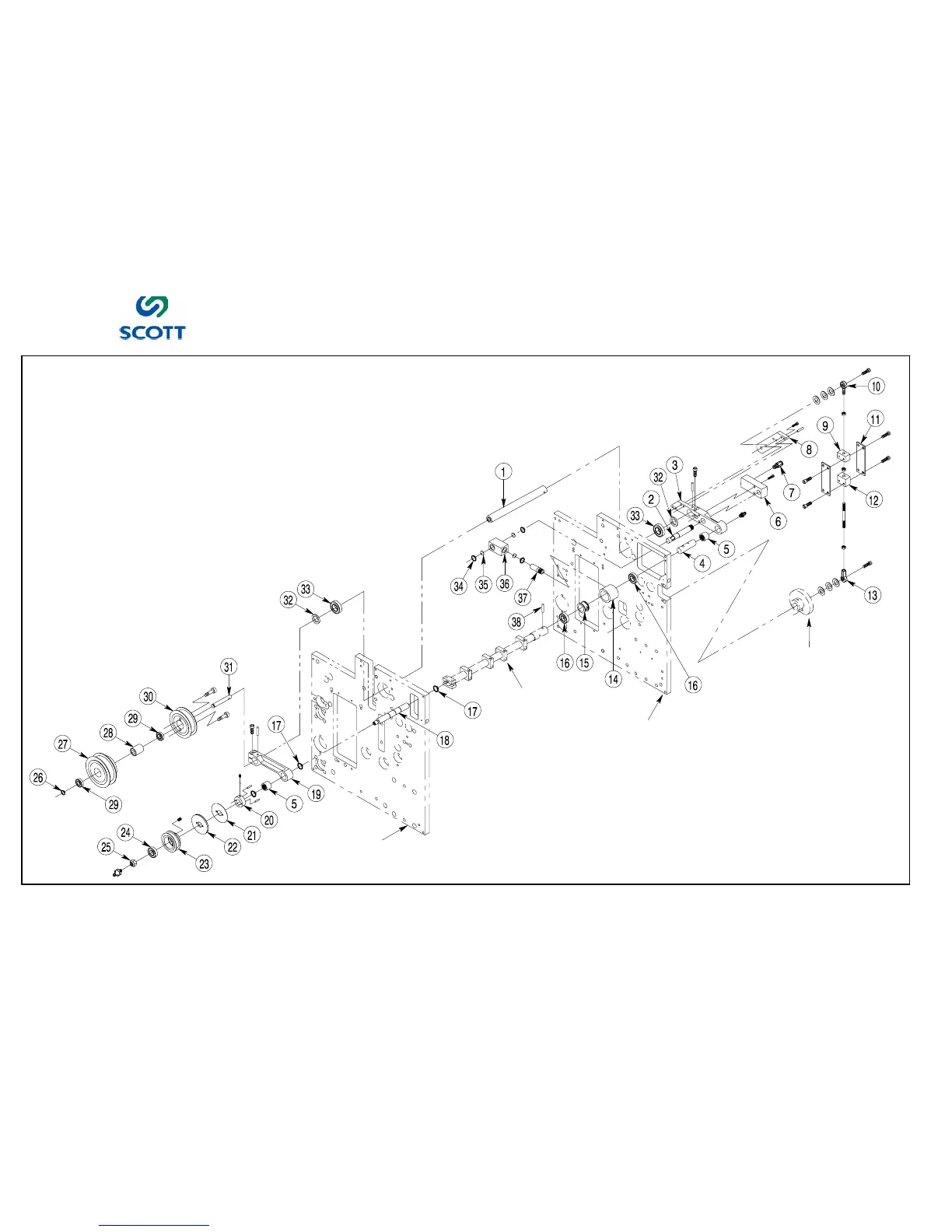

5.6 PILE FEED - VACUUM BAR DRIVE
