2 Installation
2--8
F--9999--8 Build 8 Issue 1
VACUUM
VALVE

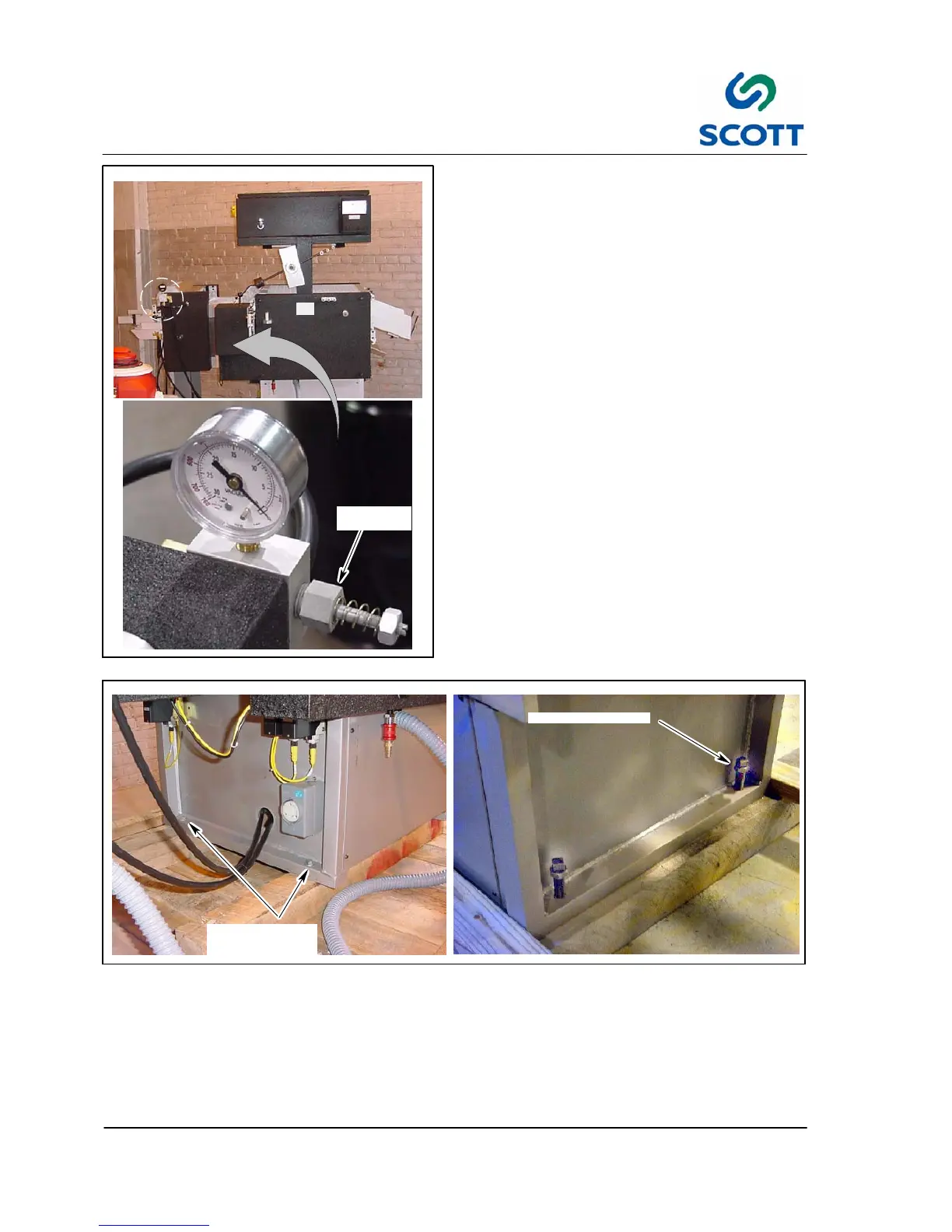

Fig. 2-10. Install Vacuum Valve
Step: 13.Install vacuum adjustment valve.
THREADED
LEVELING
HOLES (2 FRONT)
LEVELING SCREWS
Fig. 2-11. Leveling Rod Installation
Step: 14.The machine must be on a level surface. However, If machine is to be placed on an abnormally
uneven floor, machine may be leveled in the following manner:
● Install 3/4 in.--#10 threaded rods through four threaded holes In machine weldment. (See Fig. 2-11. )
● Threaded rods can then be used to level machine. Use appropriately sized jam nuts to maintain level
position when attained.
