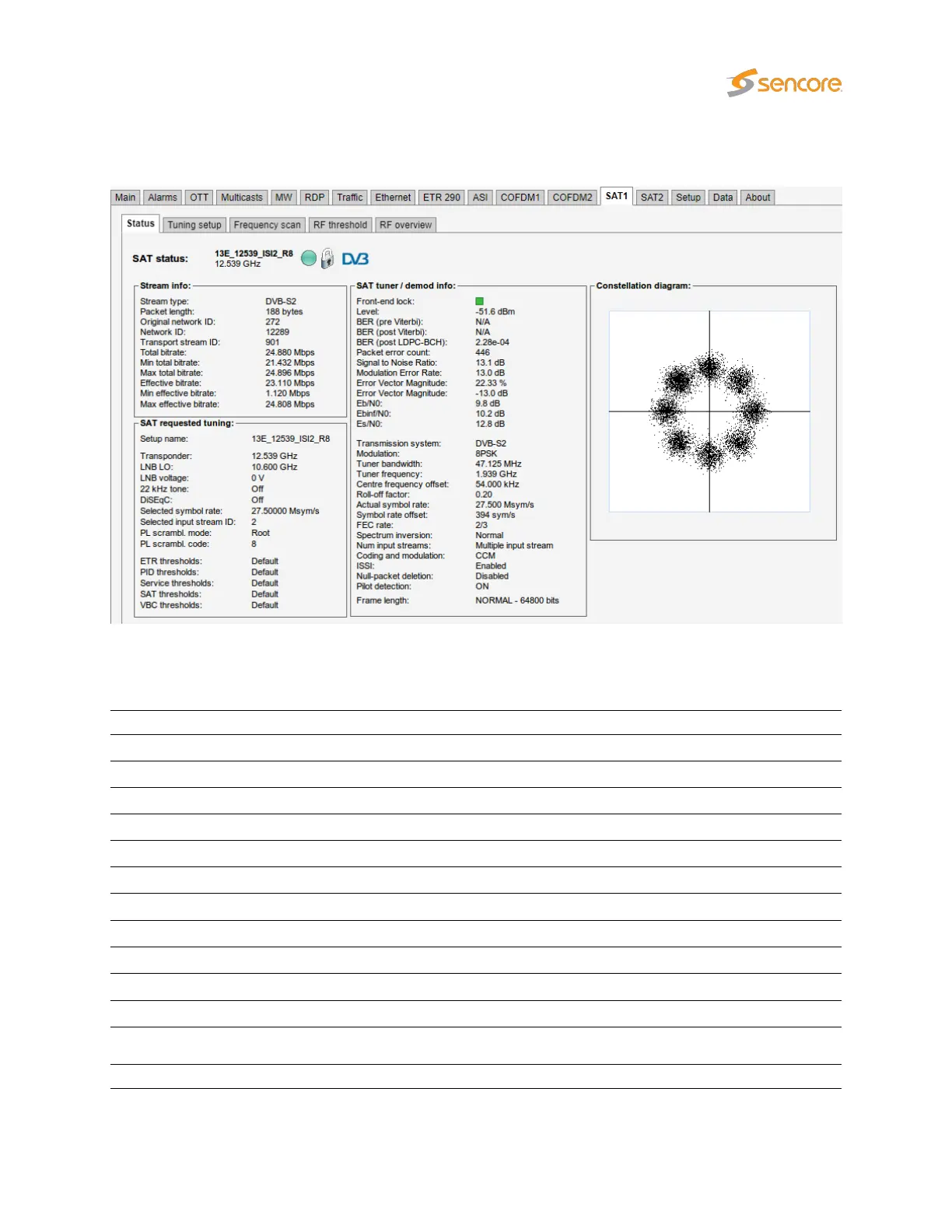

6.15.1 SAT — Status
The SAT — Status view gives an overview of the key input interface parameters.
The SAT status view displays the following information:
SAT status - Stream info:
Stream type: Indicates transmission system: DVB-S or DVB-S2
Packet length: Indicates if the transport stream packets are 188 or 204 bytes
Original network ID: The original network ID as specified in the NIT table
Network ID: The network ID as specified in the NIT table
Transport stream ID: The transport stream ID as specified in the PAT table
Total bitrate: Current total transport stream bitrate (including null packets – (PID 8191))
Min total bitrate: Minimum total transport stream bitrate (including null packets)
Max total bitrate: Maximum total transport stream bitrate (including null packets)
Effective bitrate: Current transport stream bitrate (excluding null packets)
Min effective bitrate: Minimum transport stream bitrate (excluding null packets)
Max effective bitrate: Maximum transport stream bitrate (excluding null packets)
SAT status - SAT tuner / demod info:
VB2xx GigE User’s Manual version 5.4 207
