Service thresholds:
The name of the Service threshold template assigned to the current fre-
quency
VBC thresholds:
The name of the VBC threshold template assigned to the current frequency
Please note:
If the signal power is stronger than -10 dBm there will be a warning shown by GUI. This is
to warn a user to apply some attenuation on the input to protect the analog front end on the VB256.

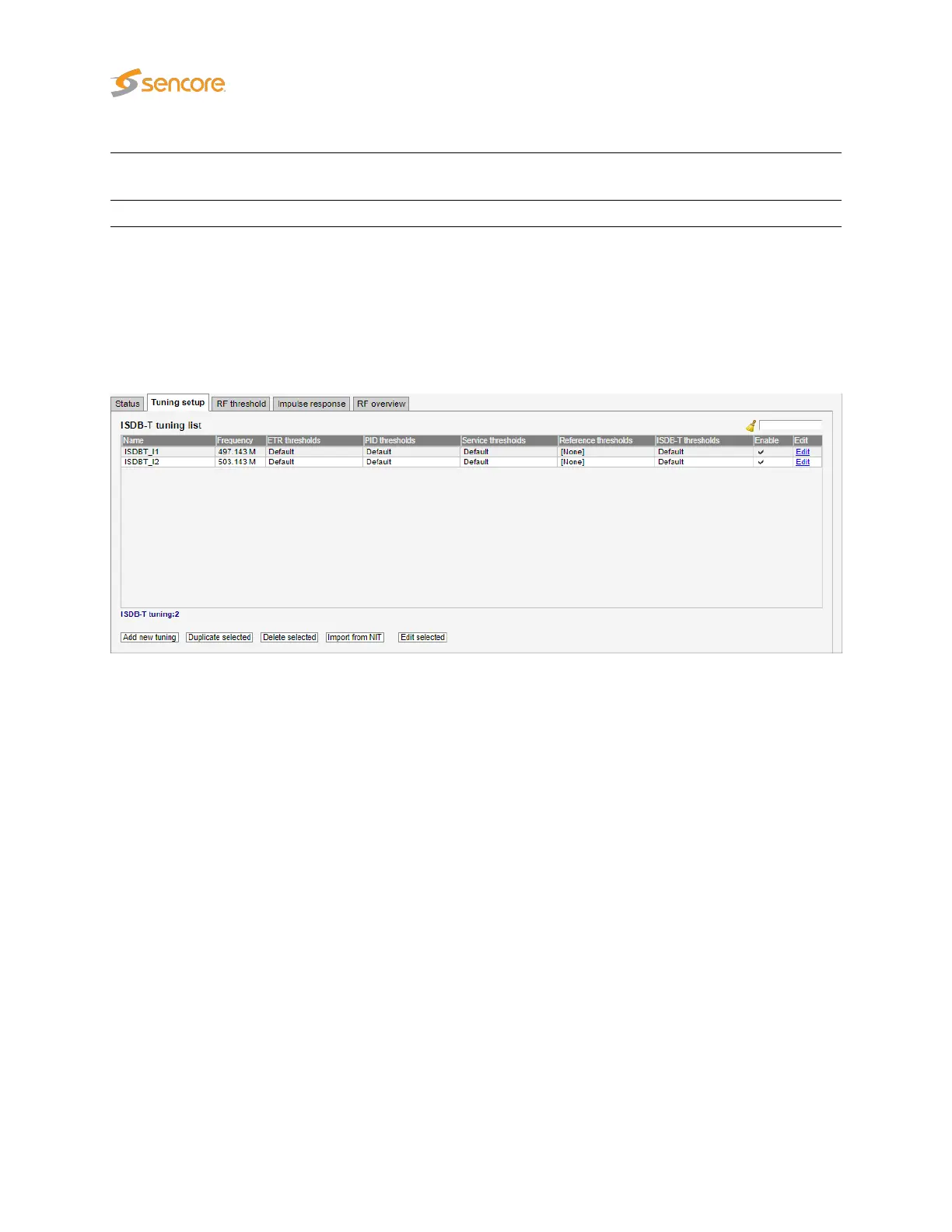

6.13.2 ISDBT — Tuning setup
In this view the operator can define frequencies that will be used by the RF demodulator for tuning.
A name is associated with each tuning configuration, and this name will be used by the probe when
referring to the stream. The frequencies and some associated key parameters are shown in the tuning
list. Each entry in the list may be edited by clicking the Edit field.
To add a new frequency to the list click the
Add new tuning
button. A pop-up window will appear allowing
the user to enter tuning parameters.
194 VB2xx GigE User’s Manual version 5.4
