: Click the blue information icon to pop up the detailed stream info.
Dst address: The multi- or unicast address
Src address: The streams source address
Name:
The stream name, as defined in the
Multicasts — Streams
view. A generic name
will be used for multi- or unicasts not defined by the user.
VLAN ID: The VLAN ID of the stream
Joined: If the stream is joined by the probe this field will read ‘Yes’.
CPU: The probe CPU used to analyze the stream (1-7)
Mapping:
The transport stream to IP mapping. Typically seven transport stream packets are
mapped into one IP packet.
Signal: The duration of stream availability
RTP drops:
The number of detected RTP drops for the stream. This is only valid if the stream is
RTP encapsulated.
CC errors: The number of detected continuity counter errors for the stream.
Bitrate: The stream bitrate

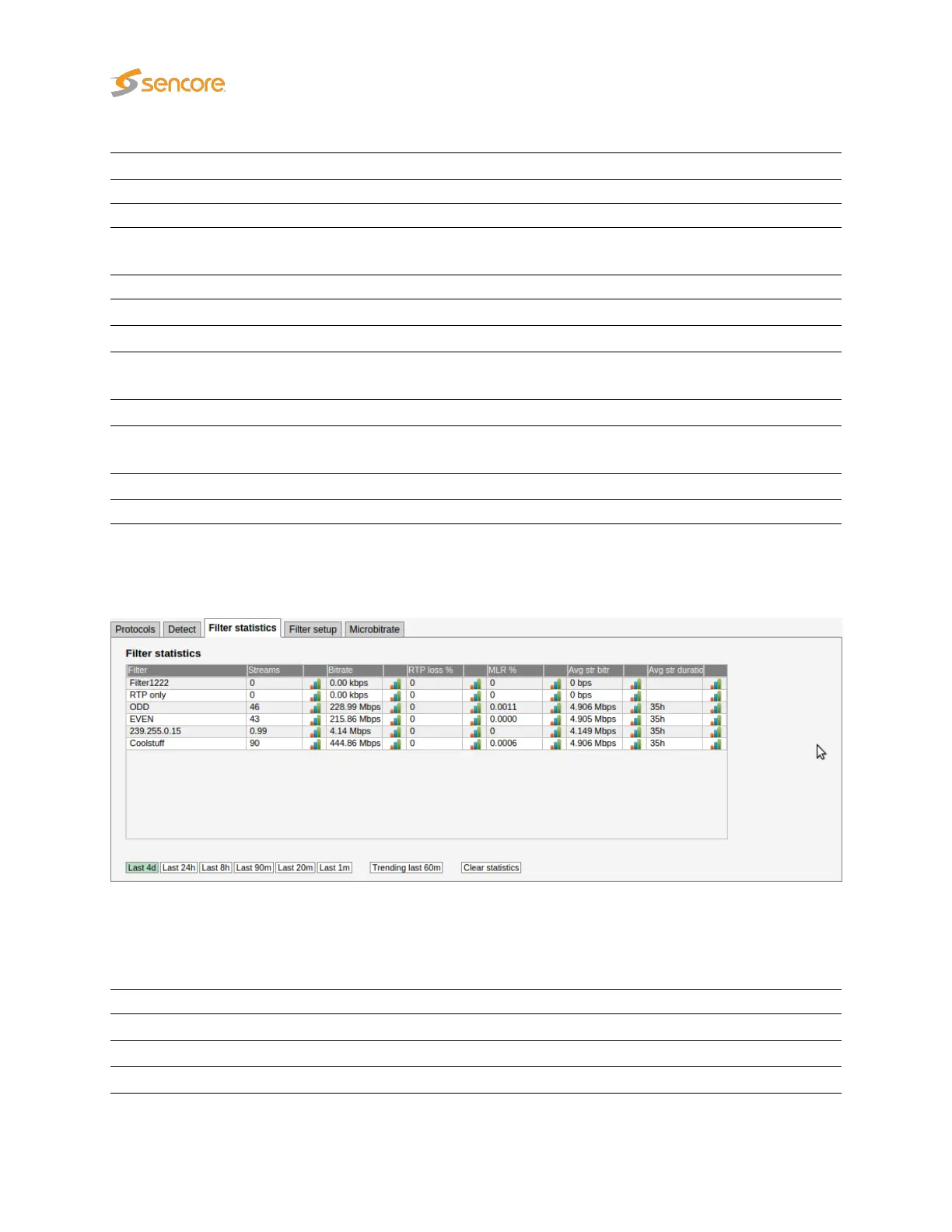

6.7.3 Traffic — Filter statistics
The
Traffic — Filter statistics
view makes it possible to view statistics for different stream types. Stream
types are defined by the user in the Traffic — Filter setup view.
Statistics is displayed for a time period selected by clicking one of the time duration buttons.
Filter statistics:
Filter: The filter name, as defined by the user in the Traffic — Filter setup view.
Streams: The number of streams matching the associated filter.
Bitrate: The total summed bitrate for streams matching the associated filter.
112 VB2xx GigE User’s Manual version 5.4
