4.4 Serial Number Location
The serial number of the Enhanced Chassis is located at the rear of the unit. The serial numbers of the
individual optional modules are located on the components side of the modules. All serial numbers can
also be found on the shipping box.
All modules except the demodulator interface modules have a serial number that is available via the web
GUI under About License.
4.5 The VB200/VB200-DC Hardware (VB220)
In the cases where redundant power supplies are not required the VB200 and VB200-DC chassis options
are suitable.
Each VB200 or VB200-DC unit consists of a 1RU chassis with 3 option slots. The unit can be equipped
with either a 100–240V AC power supply (VB200) or a –48V DC power supply (VB200-DC). The unit is
forced air ventilated, the air flow going from left to right as seen from the connector side of the unit. The
maximum power consumption of the chassis with optional modules is 50W. By default all connectors and
the power plug are located at the front of the unit. However the rack ears of the chassis may be moved to
provide for rear mounting of the unit. The rack ears are designed to support the weight of the unit.
4.5.1 Cooling System

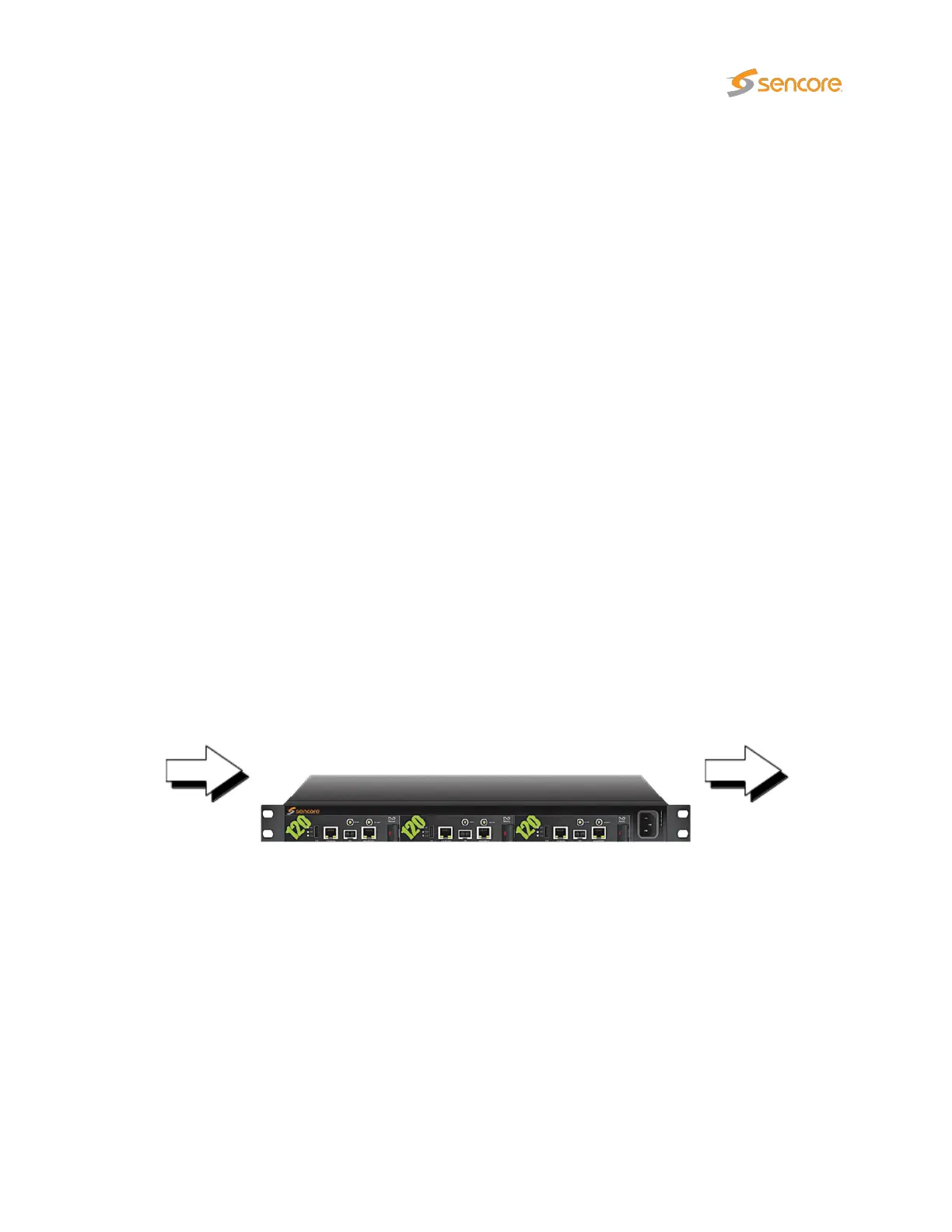

Figure 4.5: The VB200 Unit with probe boards installed – Direction of Air Flow
The chassis is equipped with three fans that suck in air from the left-hand side of the chassis as seen in
figure 4.5. The air exits on the right-hand side.
4.5.2 VB200 Power Supply
The VB200 unit is equipped with a 100–240V AC / 50W power supply.
VB2xx GigE User’s Manual version 5.4 21
