Technical data and dimension sheets
Braking resistors
Operating Instructions – MOVIMOT
®
advanced
249

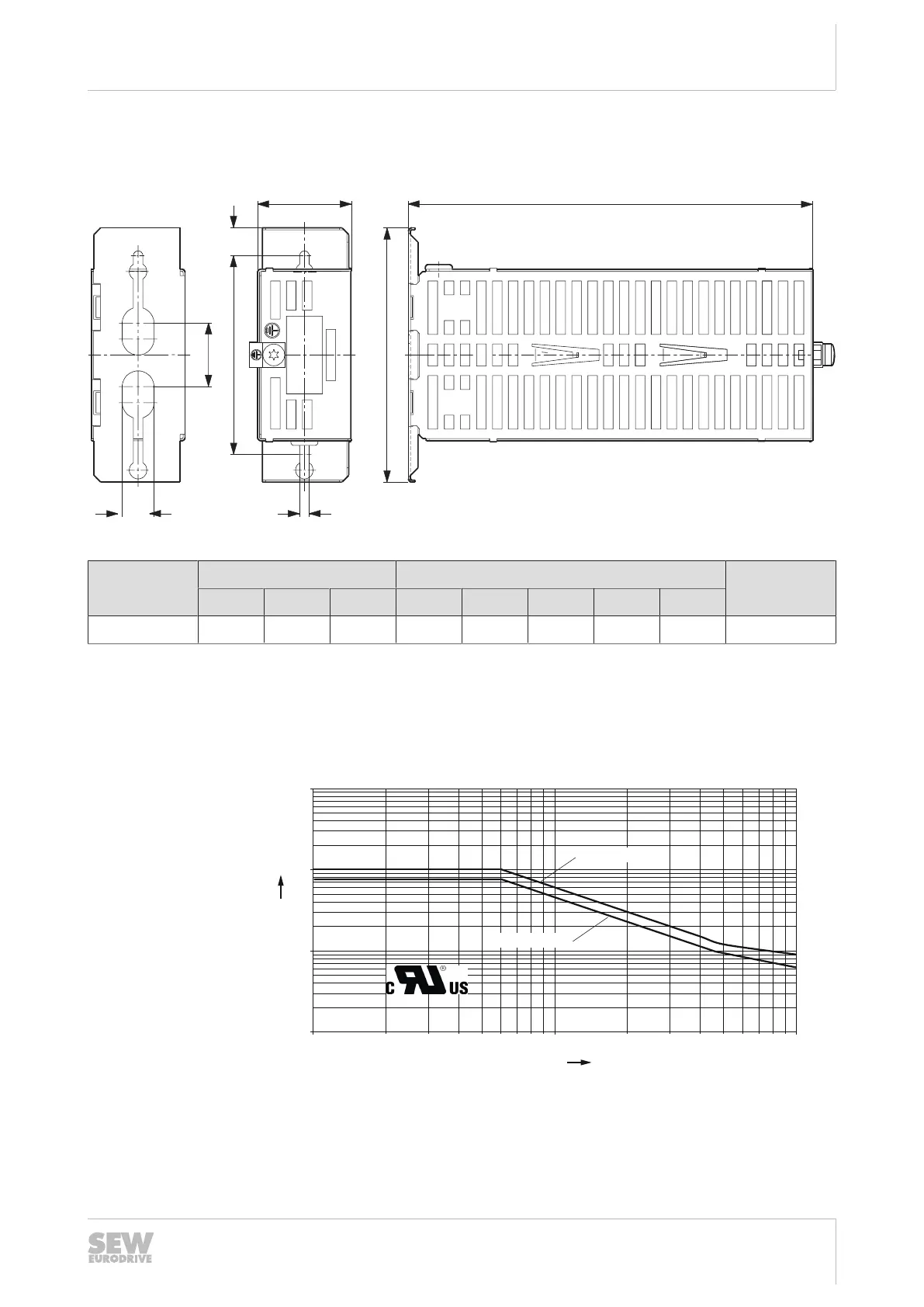

Dimension drawing for the BS-005 protective grid
The following figure shows the dimensions of the BS-005 protective grid:
e
a
A C
d
b
B
x
25842294795
Type Main dimensions in mm Mounting dimensions mm Mass kg
A B C b d e a x
BS-005 60 160 252 125 4 20 6 17.5 0.5
11.4.5 Technical data of BW150-006-T and BW100-009-T
Power diagrams
The following figure shows the rating diagrams of the braking resistors BW150-006-T
and BW100-009-T:
0.1
1
1
0
10
0
1 10 100
[1]
BW150-006-T
BW100-009-T
[2]
25298798219
[1] Power in KW
[2] Cyclic duration factor cdf in %
ED Cyclic duration factor of the braking resistor, based on a cycle time of 120s.
