SEW-Eurodrive MOVIMOT advanced DRN DBC Series User Manual

5
Electrical installation
Installation instructions
Operating Instructions – MOVIMOT
®
advanced
40
Line terminals X1a
Observe the permitted cable cross sections for installation:
Line terminals X1a Without conductor end
sleeve
With conductor end
sleeves
(with or without plastic
collar)
Connection cross sec-
tion
0.5mm
2
– 6mm
2
0.5mm
2
– 4mm
2
Stripping length 13mm–15 mm
Terminals X3 for braking resistor
Observe the permitted cable cross sections for installation:
Terminals X3 for braking
resistor
Without conductor end
sleeve
With conductor end
sleeve
(with or without plastic
collar)
Connection cross sec-
tion
0.08 mm
2
–4.0 mm
2
0.25 mm
2
–2.5 mm
2
Stripping length 8mm–9 mm
Control terminals X9
Observe the permitted cable cross sections for installation:
Control terminals X9 Without
conductor end
sleeve
With
conductor end
sleeve (without
plastic collar)
With
conductor end
sleeves (with
plastic collar)
Connection cross sec-
tion
0.08 mm
2
–
2.5mm
2
0.25mm
2
–
2.5mm
2
0.25mm
2
–
1.5mm
2
Stripping length 5mm–6mm
5.3.4 Activating line terminals X1
Adhere to the following sequence when you activate the line terminalsX1:

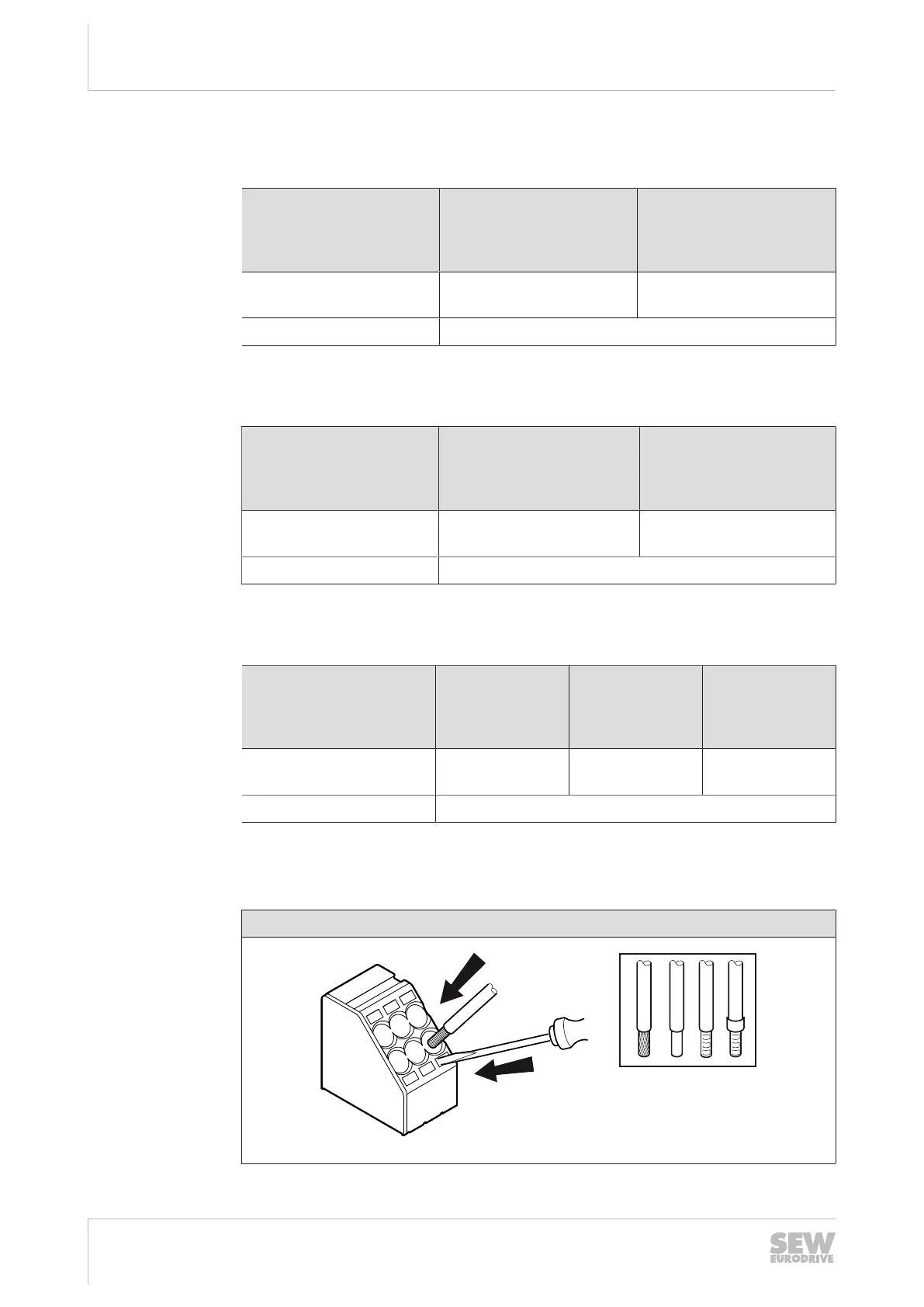

Line terminals X1 (the following figure shows a schematic illustration)
2.
1.
25649924107
25891936/EN – 05/2020
