5
Electrical installation
Plug connectors
Operating Instructions – MOVIMOT
®
advanced
63
M23 plug connector
CAUTION
Possible damage of the right-angle connector when rotated without mating con-
nector.
Irreparable damage to the thread, damage to the sealing surface.
• Do not use pliers to adjust the right-angle connector before connecting it.
CAUTION
Loss of the guaranteed degree of protection.
Potential damage to property.
• Remove the union nut from the M23 plug connector using 3Nm.
• Between plug connector and bushing is a gap of 2mm.
CAUTION
Adjusting the right-angle connector too often can damage it.
Potential damage to property.
• Adjust the plug connector only when installing and connecting the drive unit.
• Do not turn the plug connector regularly once it has been installed.
The M23 plug connectors are available in the following variants:
• [1] "Straight" plug connector
• [2] "Right-angle" plug connector
Once the mating connector has been plugged in, the "right-angle" connector can be
adjusted without using additional tools.

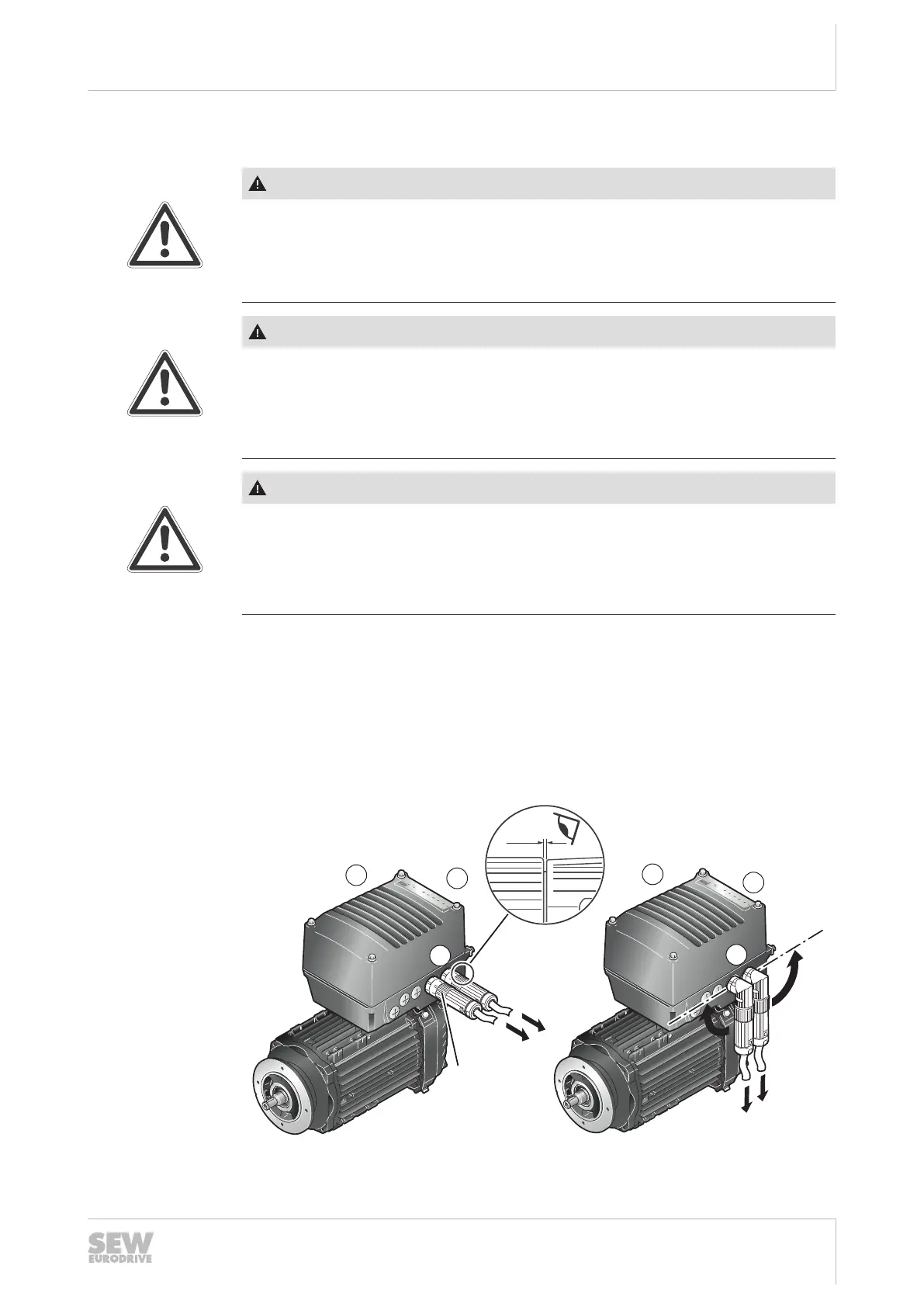

Examples of MOVIMOT
®
advanced
[1]
[2]
90 °
3
2
X
3
2
X
[4]
2 mm
3 Nm
[3]
30851325067
25891936/EN – 05/2020
