Electrical installation
Plug connectors
Operating Instructions – MOVIMOT
®
advanced
64
5.9.7 Using plug connectors assembled by yourself
The power plug connectors for assembling connection cables yourself, and the corre-
sponding assembly tool set is available for order from TE Connectivity - Intercontec
products.
Contact TE Connectivity - Intercontec products if the order designation is not available
in the online order system of Intercontec.
Order information

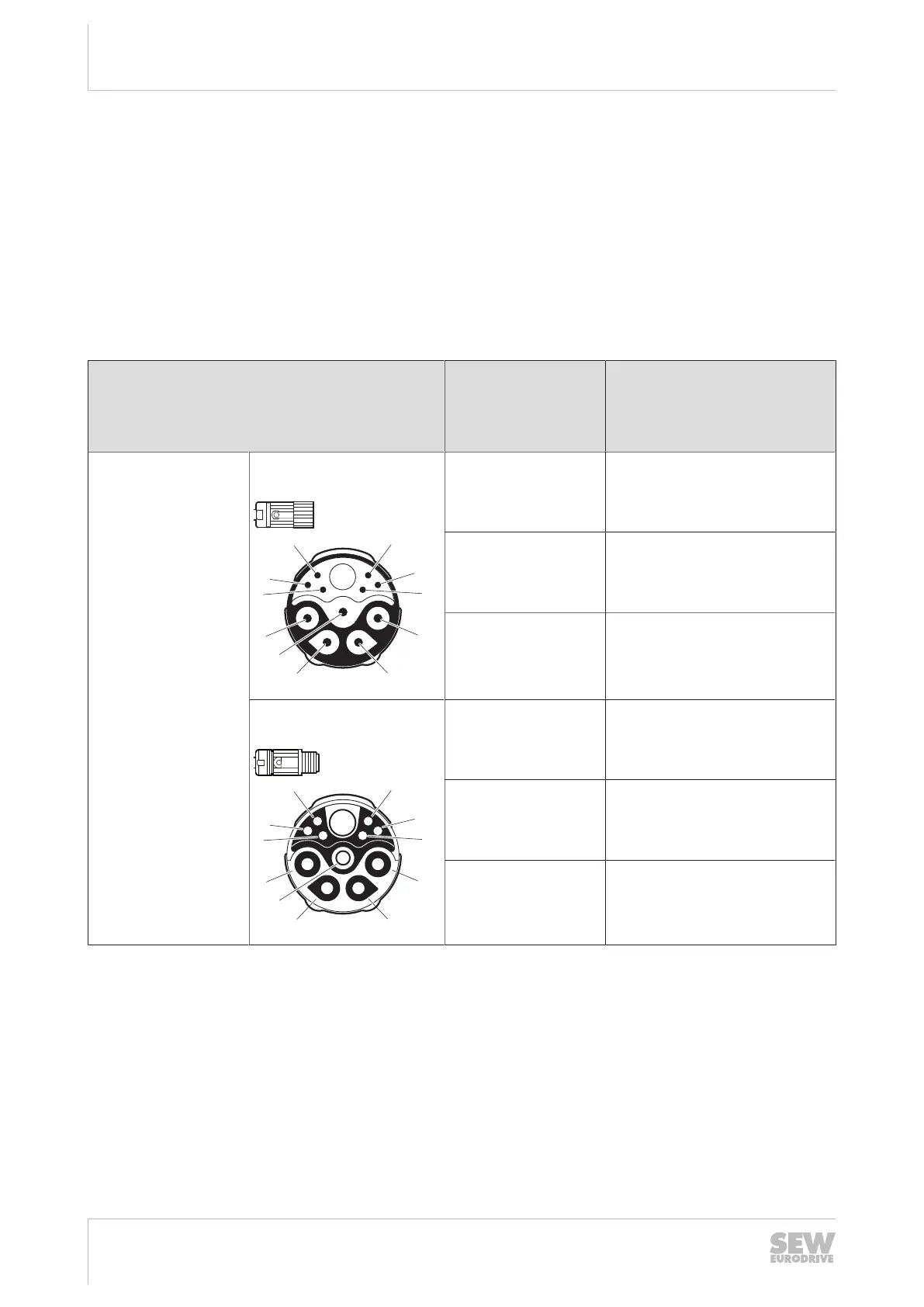

The table below shows the order designations for connectors by TE Connectivity -
Intercontec products with the matching coding for assembly by the customer:
Plug connector type Cable outer diame-
ter/
core cross section
of crimp contacts
Designation for order from
the supplier TE Connectivity -
Intercontec products
Plug connector
AC400V
Coding ring: Black
Cable plug (male, union
nut)
D
3
2
1
PE
C
B
A
5
4
6
14mm - 17mm
/
2.5mm
2
- 4.0mm
2
H 51 A 019 MR 02 59 0102 000
9.5mm - 14.5mm
/
2.5mm
2
- 4.0mm
2
H 51 A 019 MR 02 42 0102 000
9.5mm - 14.5mm
/
0.35mm
2
- 2.5mm
2
In preparation
Cable socket (female/male
thread)
A
6
4
5
PE
B
C
D
1
2
3
14mm - 17mm
/
2.5mm
2
- 4.0mm
2
H 52 A 013 FR 02 59 0102 000
9.5mm - 14.5mm
/
2.5mm
2
- 4.0mm
2
H 52 A 013 FR 02 42 0102 000
9.5mm - 14.5mm
/
0.35mm
2
- 2.5mm
2
In preparation
