Electrical installation
Optional plug connector assignment
Operating Instructions – MOVIMOT
®
advanced
72

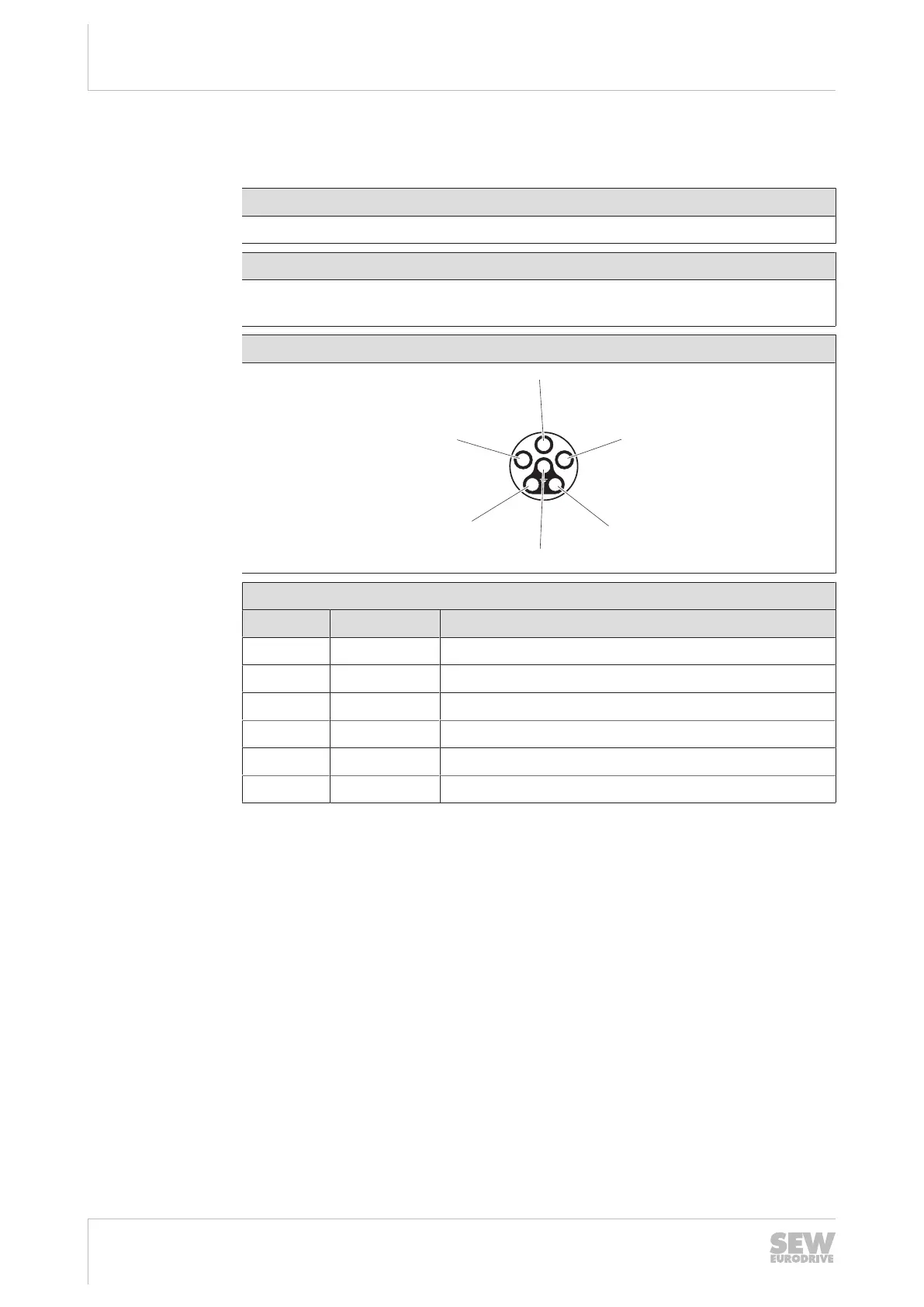

5.10.3 X2242: AC 400 V connection (OUT)
The following table shows information about this connection:
Function
AC 400V connection (OUT)
Connection type
MQ15-X-Power, female, plug connector with union nut, MURR Elektronik, (current
load max. 16A)
Connection diagram
PE
A
3
2
1
B
Assignment
Contact Signal Description
1 L1 Line connection, phase L1 (OUT)
2 L2 Line connection, phase L2 (OUT)
3 L3 Line connection, phase L3 (OUT)
PE PE PE connection
A Res. Reserved
B Res. Reserved
