5
Electrical installation
Optional plug connector assignment
Operating Instructions – MOVIMOT
®
advanced
73

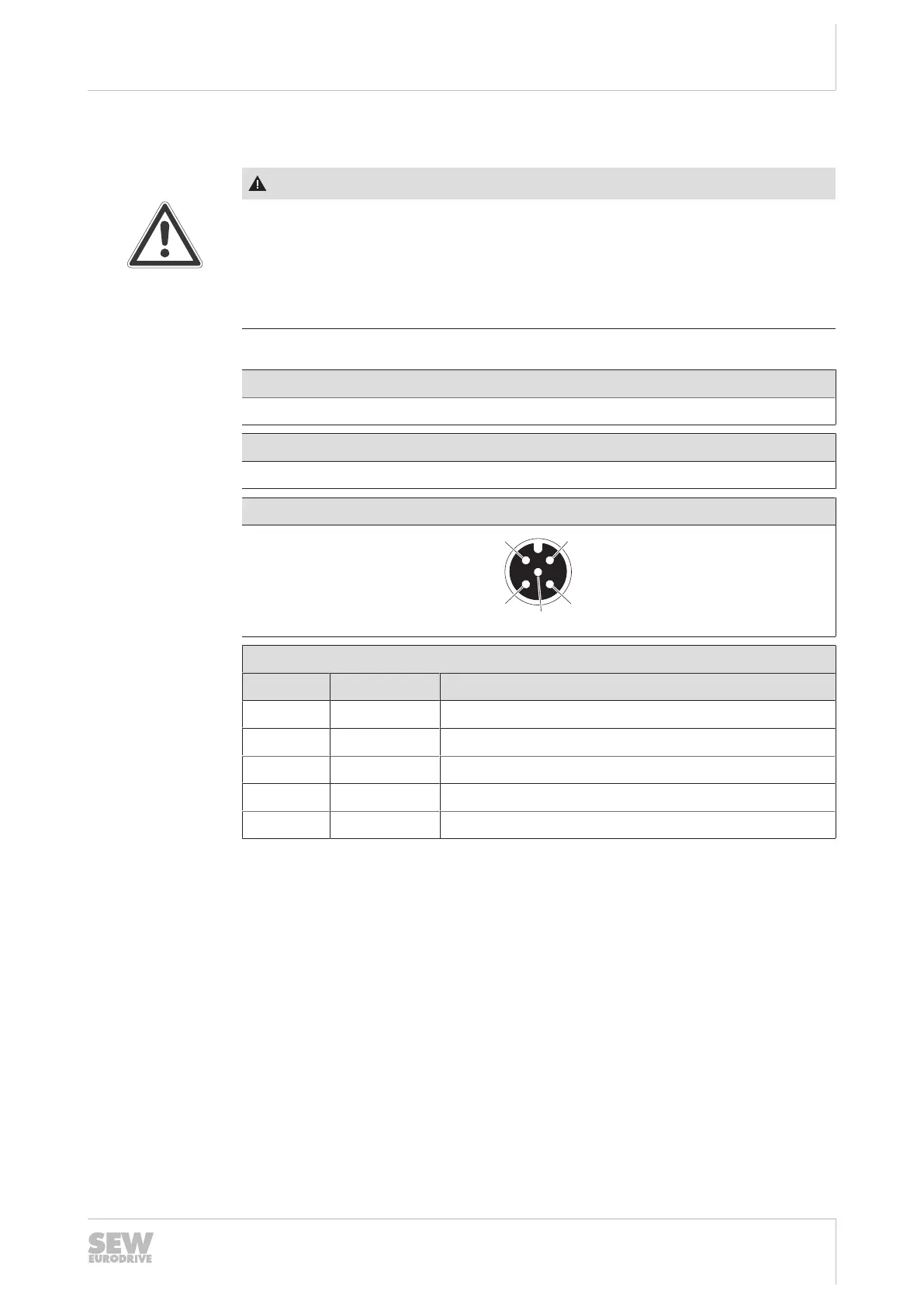

5.10.4 X5504: STO (3 cores)
WARNING
No safe disconnection of the device.
Severe or fatal injuries.
• Do not use the 24V output (pins1 and 3) for safety-related applications.
• Only jumper the STO connection with 24V if the device does not have to fulfill
any safety function.
The following table shows information about this connection:
Function
Connection for safe torque off (STO, 3cores)
Connection type
M12, 5‑pin, female, A‑coded, color: yellow
Connection diagram
1
4
3
2
5
Assignment
Contact Signal Description
1 24V_OUT DC24V auxiliary output
2 F_STO_P2 F_STO_P2 connection
3 0V24_OUT 0V24 reference potential for DC24V auxiliary output
4 F_STO_P1 F_STO_P1 connection
5 F_STO_M F_STO_M connection
25891936/EN – 05/2020
