5
Electrical installation
PC connection
Operating Instructions – MOVIMOT
®
advanced
92
Installing the included engineering plug connector X4142
In some cases, the X4142 engineering plug connector is provided in an accessory bag
(part number: 28273273) included in the drive unit delivery from SEW-EURODRIVE.
In this case, install the engineering plug connector X4142 to the connection box of the
drive unit as follows:
1. It is essential that you observe the startup instructions.
2. Switch off the voltage supply and wait for at least 5 minutes.
3. Loosen the screws and remove the electronics cover from the connection box.
4. Plug in the plug connector RJ10 from outside through one of the permitted cable
entry bores (for the permitted positions, see chapter "Plug connector positions").
Push the cable completely into the connection box.
5. Screw plug connector M12 into the cable entry bore. Fasten the nut of the M12
plug connector (tightening torque: 6Nm).

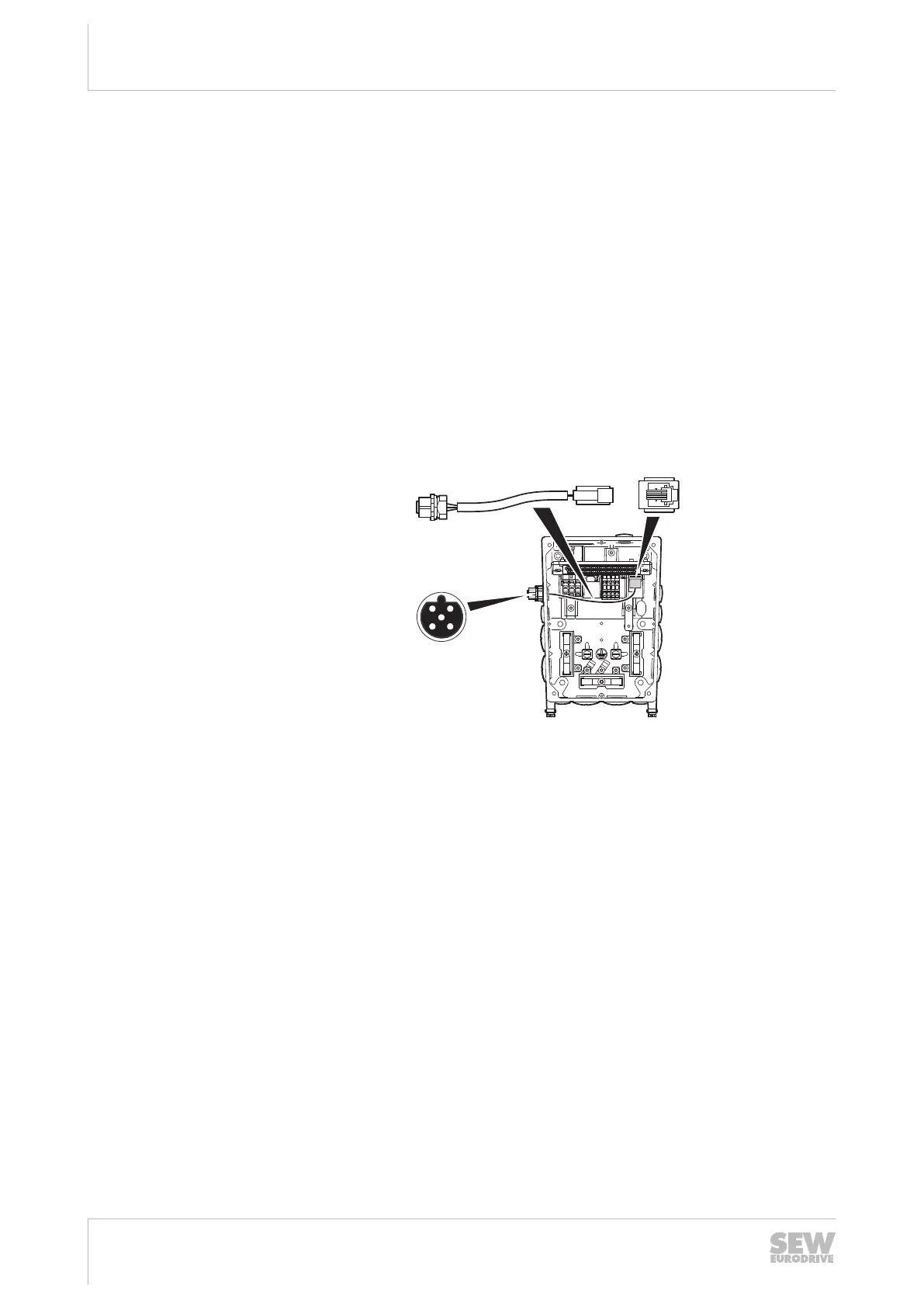

6. Insert the RJ10 plug connector into plug connector X31 in the connection box. The
following figure shows an example of the cable routing:
32385963403
7. Plug the electronics cover onto the connection box. Screw on the electronics cover
with 4 screws (tightening torque: 6Nm).
25891936/EN – 05/2020
