5
Electrical installation
PC connection
Operating Instructions – MOVIMOT
®
advanced
93

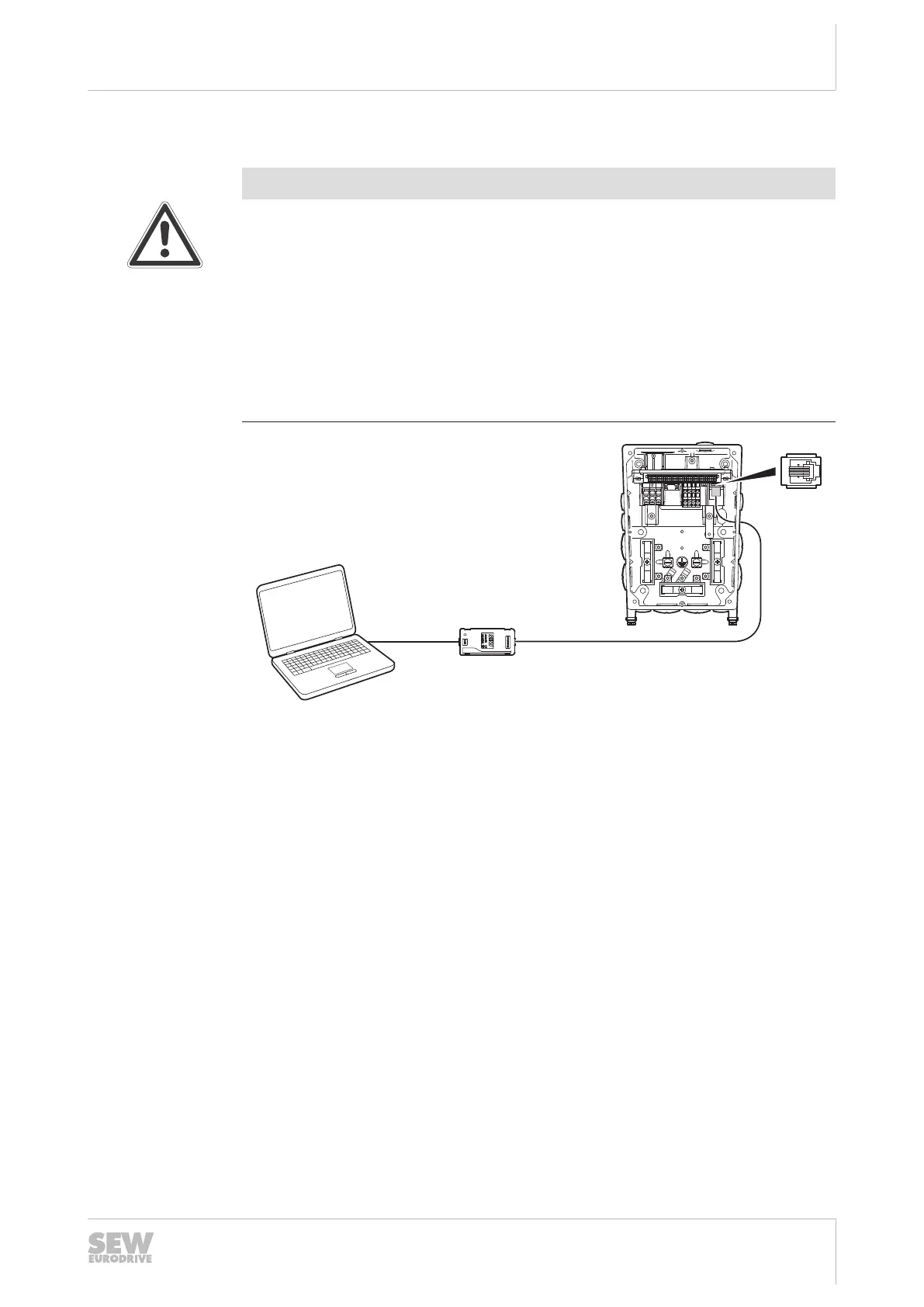

Connection to X31 (RJ10 in the connection box)
NOTICE
Connector X31 provides a 24V supply voltage for operating the connected options.
Damage to connected options with low nominal voltage.
• Only connect options with a nominal voltage of 24V to connector X31, such as:
– Interface adapter USM21A,
– CBG.. keypad
• Do not connect the following options with 5V nominal voltage to the X31 con-
nector:
– Interface adapters USB11A, UWS11A, UWS21A
– Keypads DBG.., GBG21A.
9007224818777355
[1] USB 2.0 connection cable
(commercial, included in the delivery of USM21A)
[2] Interface adapter USM21A
[3] RJ10/RJ10 connection cable
(included in the delivery of the USM21A interface adapter)
25891936/EN – 05/2020
