Operating Instructions – Electronic Motor DRC.-..-SNI
8
Description of power section parameters
Parameters

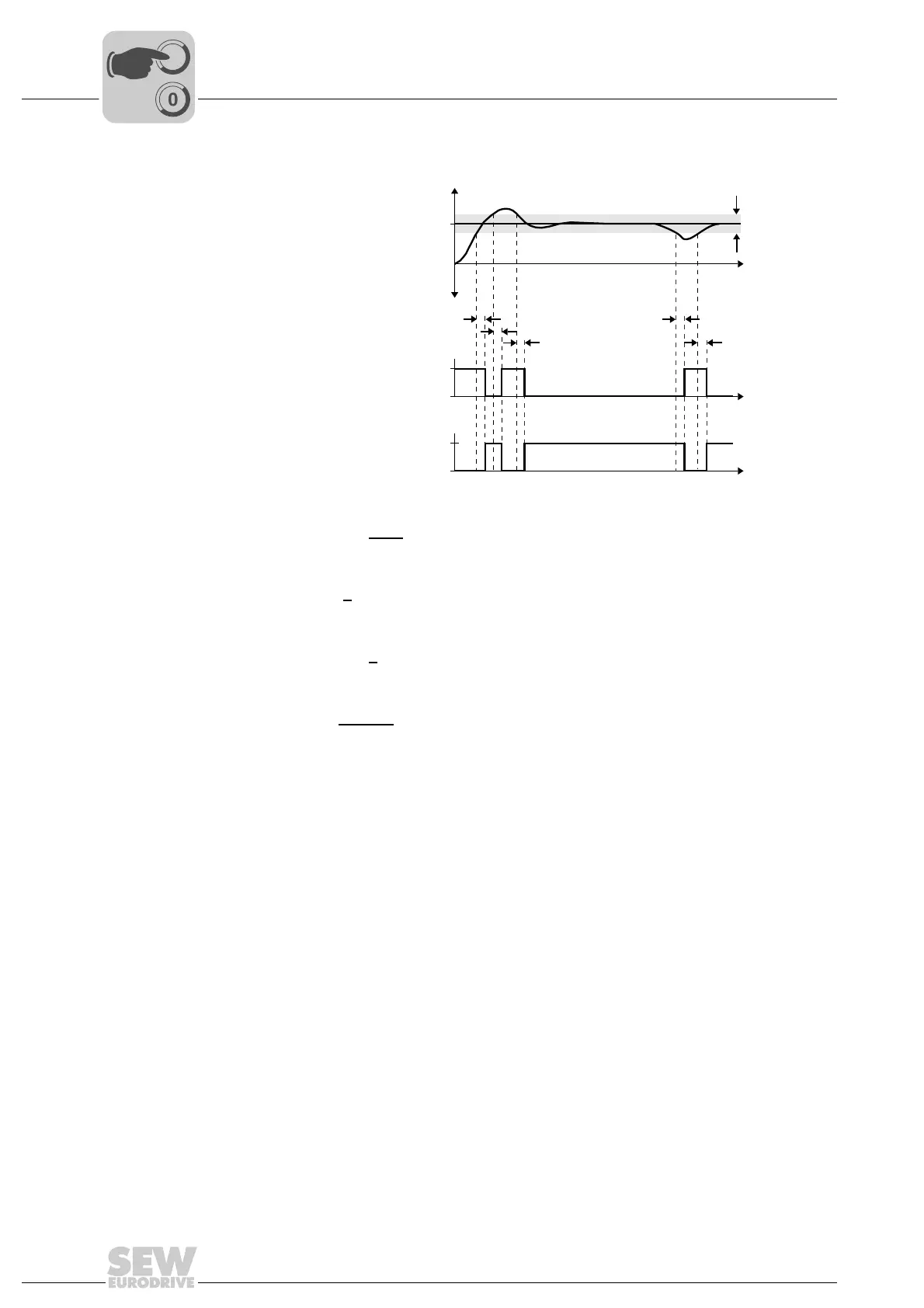

Speed window
signal
Signals whether the speed is within or outside the set window range.
Window center
index 8543.0
Setting range: 0 – 1500
– 6000 rpm
Range width index
8544.0
Setting range: 0
– 6000 rpm
Delay time index
8545.0
Setting range: 0 – 1
– 9 s
Signal = "1" if:
Index 8546.0
Setting range:WITHIN
/ OUTSIDE
9007202042187531
t
1
1
0
0
Index 8545.0
t
t
Index 8544.0
n rpm
Index 8546.0:
Signal = "1" if n = n
window
Index 8546.0:
Signal = "1" if n <> n
window
Index 8543.0
n
window
