12.3.4 4Q operation with integrated brake coil and external braking resistor
4Q operation with external braking resistor is necessary for applications with a large
amount of regenerative energy.

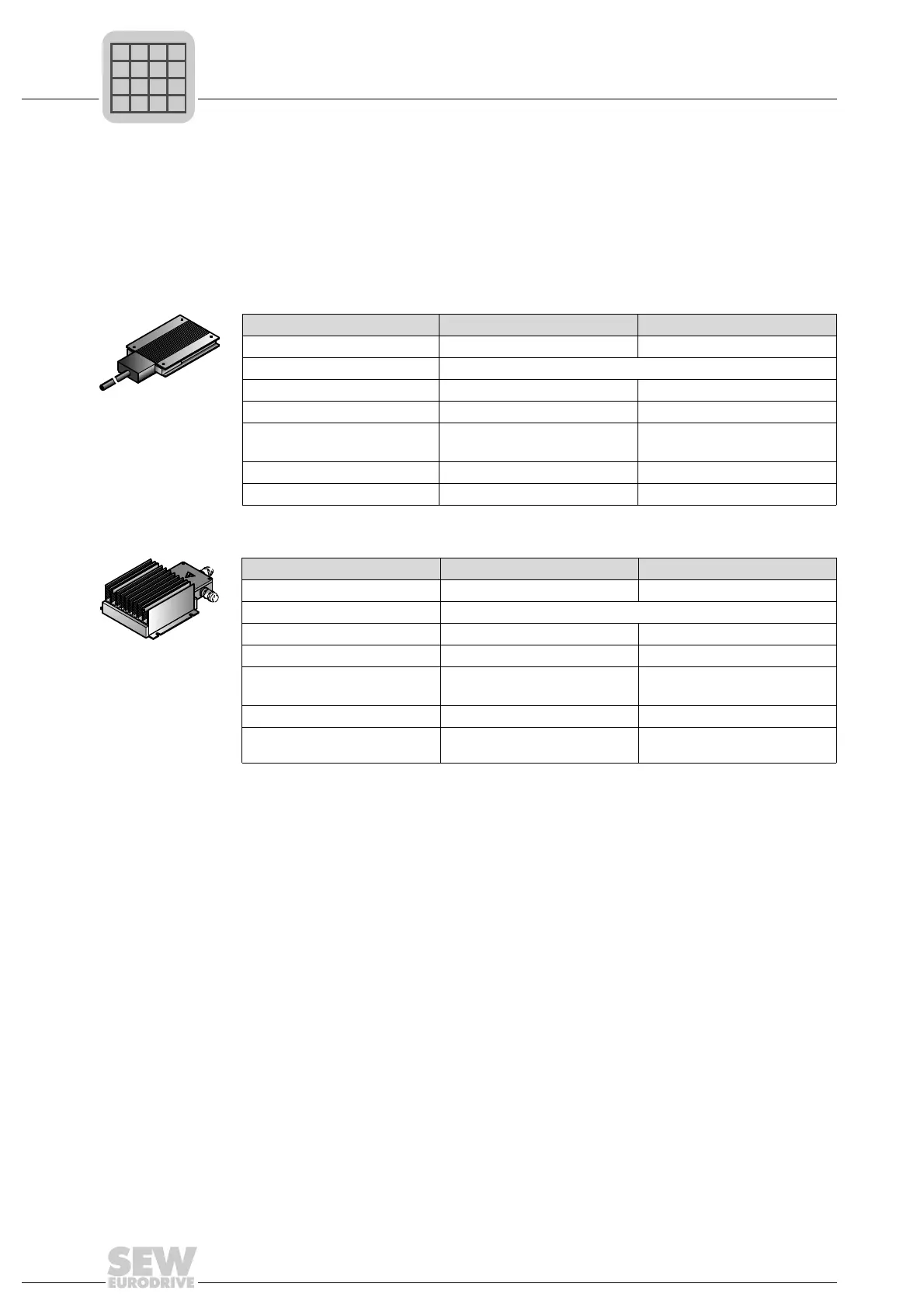

The following tables show the external braking resistors that are available for
DRC1/DRC2.
BW...-.../K-1.5
BW...-...-T
BW100-005/K-1.5 BW150-003/K-1.5
Part number 0 828 286 2 0 828 2927
Function Dissipating the regenerative energy
Degree of protection IP65 IP65
Resistance 100 Ω 150 Ω
Power
in S1, 100% cdf
200 W 100 W
Dimensions W x H x D 252 x 15 x 80 mm 146 x 15 x 80 mm
Cable length 1.5 m 1.5 m
BW150-006-T BW100-009-T
Part number 1 796 956 5 1 796 957 3
Function Dissipating the regenerative energy
Degree of protection IP66 IP66
Resistance 150 Ω 100 Ω
Power
in S1, 100% cdf
600 W 900 W
Dimensions W x H x D 285 x 75 x 174 mm 435 x 75 x 174 mm
Maximum permitted cable
length
15 m 15 m
