Braking resistors
Technical Data and Dimension Sheets
12.3.5 Technical data of BW100-005/K-1.5 and BW150-003/K-1.5
Rating diagrams of
BW100-005/K-1.5,
BW150-003/K-1.5

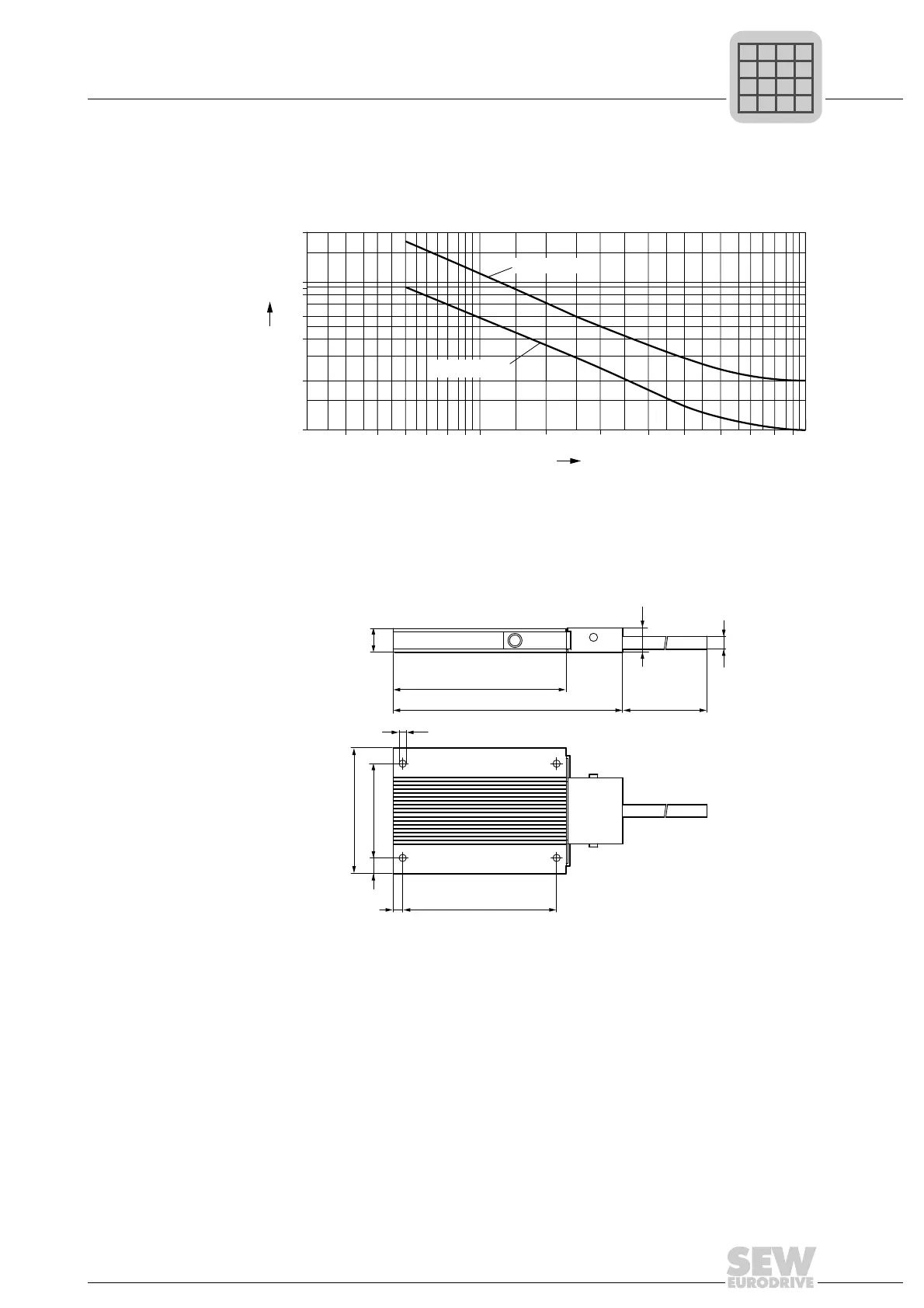

The following figure shows the rating diagrams of the braking resistors BW100-005/
K-1.5, BW150-003/K-1.5:
Dimension drawing
BW150-003/K-1.5
The following figure shows the dimensions of the external braking resistor
BW150-003/K-1.5:
4850138507
[1] Power in kW
[2] Cyclic duration factor cdf in %
0.2
2.0
0.4
0.6
0.8
0.1
1.0
[1]
[2]
6 7 8 9 100345 10 20 30 405060
70
80
BW100-005
BW150-003
4850134027
110
146
10
6
60
15
15.5
80
98
4,6
Ø8
1500
P
i
f
kVA
Hz
