Operating Instructions – Electronic Motor DRC.-..-SNI
175
12
Braking resistors
Technical Data and Dimension Sheets
12.3.6 Technical data of BW100-009-T and BW150-006-T
Rating diagrams of
BW150-006-T and
BW100-009-T

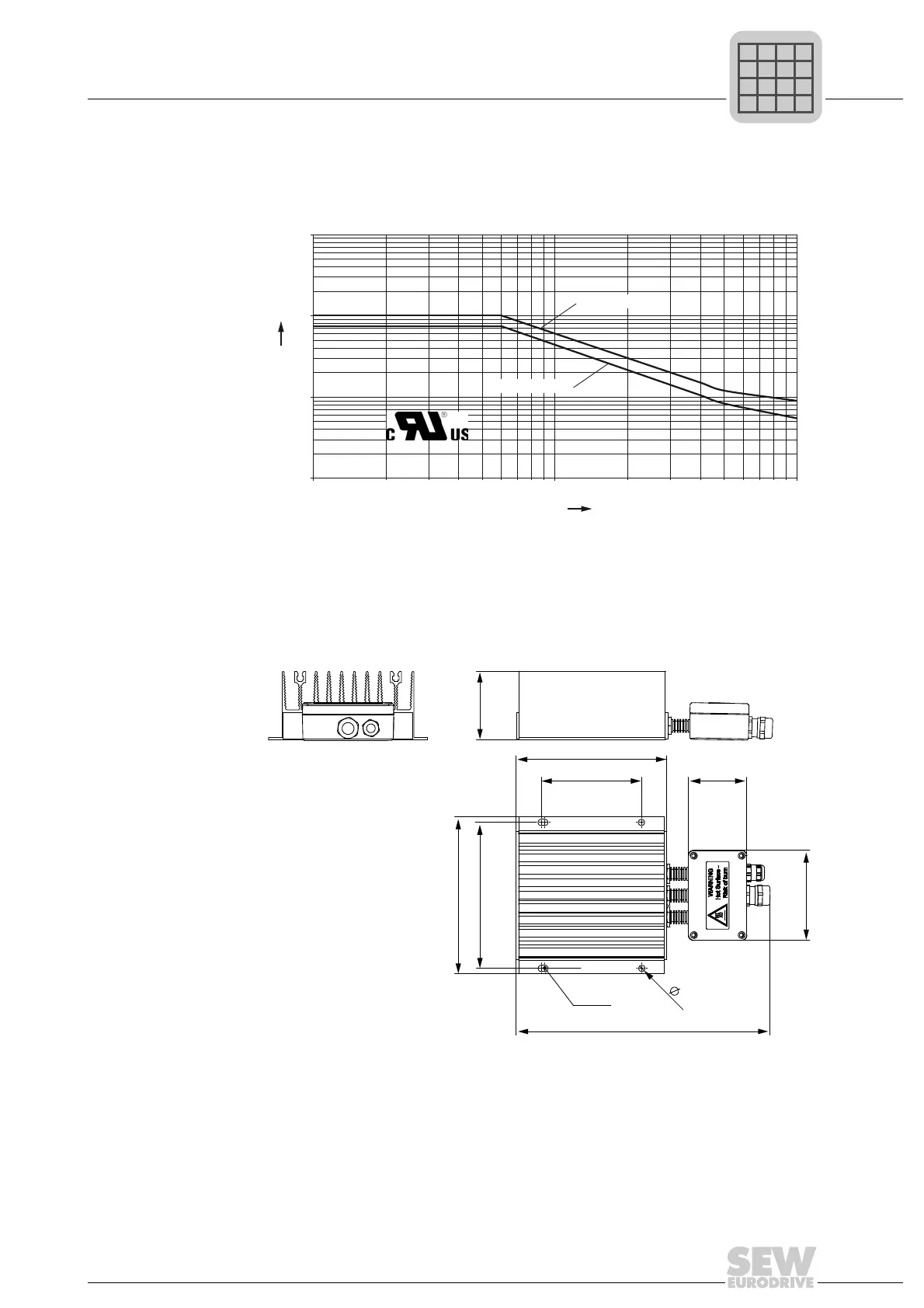

The following figure shows the rating diagrams of the braking resistors BW150-006-T
and BW100-009-T:
Dimension drawing
BW150-006-T
The following figure shows the dimensions of the external braking resistor
BW150-006-T:
4850239499
[1] Power in kW
[2] Cyclic duration factor cdf in %
cdf = cyclic duration factor of the braking resistor, based on a cycle time of 120 s.
0.1
1
10
100
1 10 100
[1]
BW150-006-T
BW100-009-T
[2]
4850243339
h1
110
174 162
7
166
65
100
<285
ø7x11
