Operating Instructions – Electronic Motor DRC.-..-SNI
187
12
Dimension drawings
Technical Data and Dimension Sheets
12.9.6 Plug connectors including mating connectors
INFORMATION

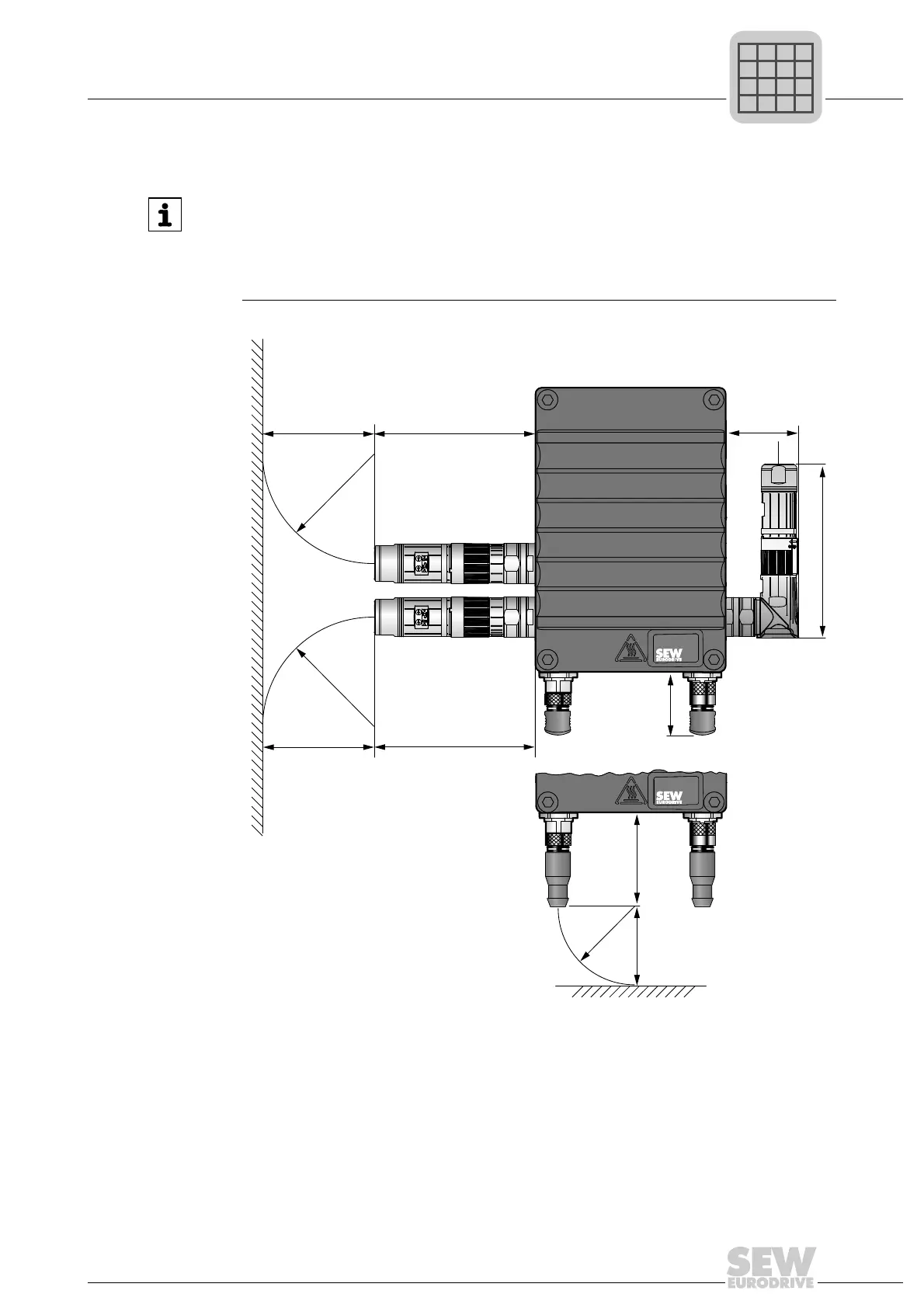

• The following figure shows the additional dimensions / bending radii of the optional
plug connectors including mating connector in connection with prefabricated
cables from SEW-EURODRIVE.
• For more information, refer to chapter "Electrical Installation / Plug connector
positions".
4784355595
[1] "Straight" plug connector variant
[2] "Right-angle" plug connector variant
113
113
R75
Bending radius
raw cable
75
75
28 75
55
R75
Bending radius
raw cable
56
R28
[2]
[1]
[1]
[1]
[2]
[1]
[2]
125
