Operating Instructions – Electronic Motor DRC.-..-SNI
12
Dimension drawings
Technical Data and Dimension Sheets
12.9.5 Plug connectors
Key
INFORMATION

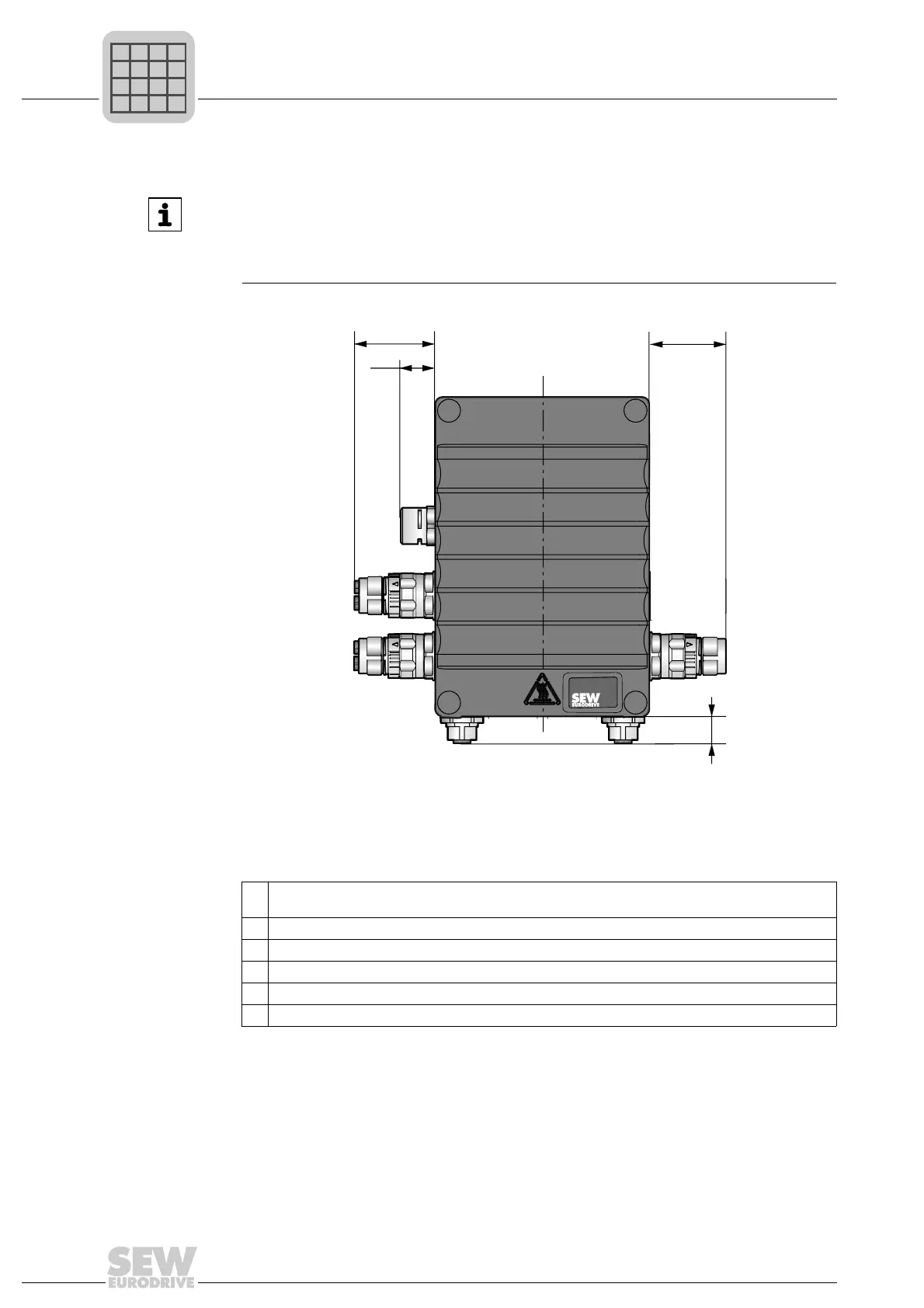

• The following figure shows an example of the additional dimensions of the optional
plug connectors for a possible plug connector configuration.
• For more information, refer to chapter "Electrical Installation / Plug connector
positions".
18014401181575051
1) "Straight" plug connector variant
2) "Right-angle" plug connector variant
16
11.5
52.5
1)
/ 55.7
2)
50
1)
/ 55.7
2)
[1]
[2]
[3]
[4] [5]
[6]
[1] Pressure compensation fitting in connection with the optional package for wet areas (MOVIGEAR
®
) /
ASEPTIC variant (DRC).
[2] X1203_2: AC 400 V connection with SNI
[3] X1203_1: AC 400 V connection with SNI
[4] X5502: STO – IN
[5] X5503: STO – OUT
[6] X5131: Digital inputs/outputs
