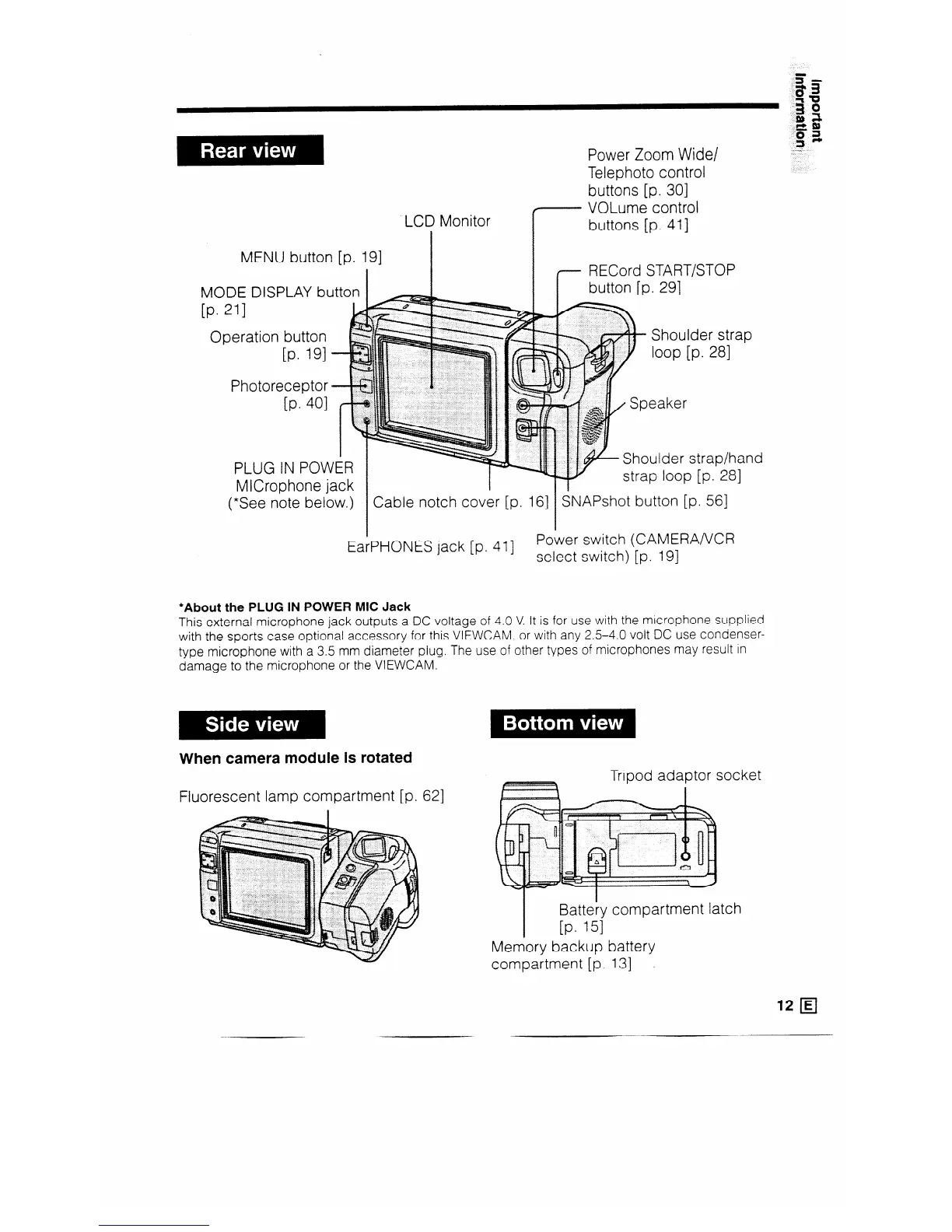

LCD Monitor
MENU button [p. 191
I
MODE DISPLAY bt
[Pm 211
Operation button
[P- 191
Photoreceptor
CP* 401
Power Zoom Wide/
Telephoto control
buttons [p. 301
VOLume control
buttons [p. 411
RECord START/STOP
button [p. 291
Shoulder strap/ban
strap loop [p. 281
PLUG IN POWER
MICrophone jack
(*See note below.)
Cable notch cover [p. 161 SNAPshot button [p. 561
7
ta;PHONES jack [p. 411
Power switch (CAMERA/VCR
select switch) [p. 191
d
*About the PLUG IN POWER MIC Jack
This external microphone jack outputs a DC voltage of 4.0 V. It is for use with the mrcrophone supplied
with the sports case optional accessory for this VIEWCAM, or with any 2.5-4.0 volt DC use condenser-
type microphone with a 3.5 mm diameter plug. The use of other types of microphones may result in
damage to the microphone or the VIEWCAM.
When camera module
is rotated
Fluorescent lamp compartment [p. 621
Tripod adaptor s ocket
Battery compartment latch
[P* 151
Memory backup battery
compartment [p. 131
