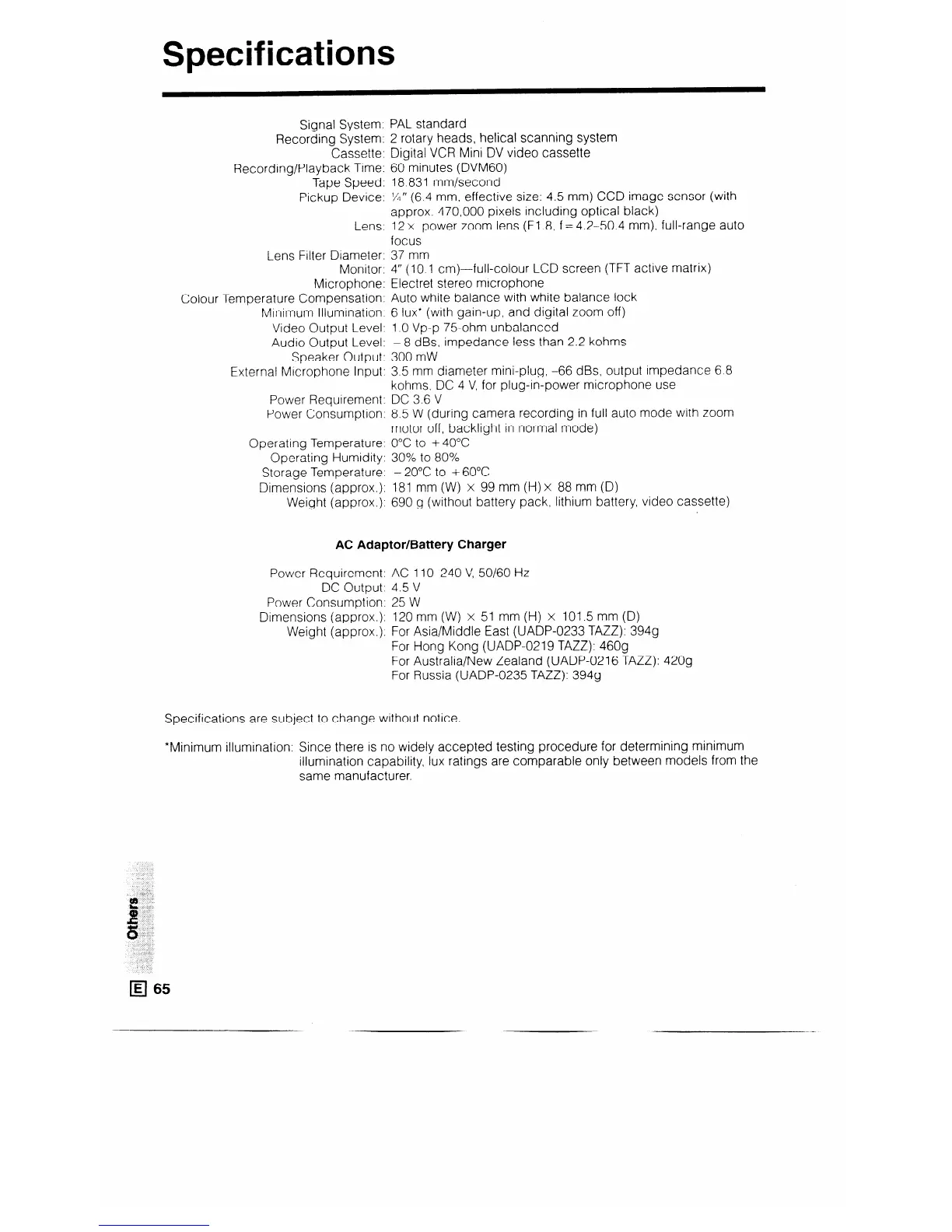

Specifications
Signal System:
Recording System:
Cassette:
Recording/Playback Time:
Tape Speed:
Pickup Device:
Lens.
Lens Filter Diameter:
Monitor:
Microphone:
Colour Temperature Compensation:
Minimum Illumination:
Video Output Level:
Audio Output Level:
Speaker Output:
External Microphone Input
Power Requirement:
Power Consumption:
Operating Temperature:
Operating Humidity:
Storage Temperature:
Dimensions (approx.):
Weight (approx.):
PAL standard
2 rotary heads, helical scanning system
Digital VCR Mini DV video cassette
60 minutes (DVMGO)
18.831 mm/second
‘/I” (6.4 mm, effective size: 4.5 mm) CCD image sensor (with
approx. 470,000 pixels including optical black)
12 x power zoom lens (F1.8, f = 4.2-50.4 mm), full-range auto
focus
37 mm
4” (10.1 cm)-full-colour LCD screen (TFT active matrix)
Electret stereo microphone
Auto white balance with white balance lock
6 lux’ (with gain-up, and digital zoom off)
1 .O Vp-p 75-ohm unbalanced
- 8 dBs, impedance less than 2.2 kohms
300 mW
3.5 mm diameter mini-plug, -66 dBs, output impedance 6.8
kohms, DC 4 V, for plug-in-power microphone use
DC 3.6 V
8.5 W (during camera recording in full auto mode with zoom
motor off, backlight in normal mode)
0°C to + 40°C
30% to 80%
- 20°C to + 60°C
181 mm (W) x 99 mm (H)x 88 mm (D)
690 g (without battery pack, lithium battery, video cassette)
AC Adaptor/Battery Charger
Power Requirement: AC 1 lo-240 V, 50/60 Hz
DC Output: 4.5 V
Power Consumption: 25 W
Dimensions (approx.): 120 mm (W) x 51 mm (H) x 101.5 mm (D)
Weight (approx.). For Asia/Middle East (UADP-0233 TAZZ): 3949
For Hong Kong (UADP-0219 TAZZ): 460g
For Australia/New Zealand (UADP-0216 TAZZ): 4209
For Russia (UADP-0235 TAZZ): 3949
Specifications are subject to change without notice.
*Minimum illumination: Since there is no widely accepted testing procedure for determining minimum
illumination capability, lux ratings are comparable only between models from the
same manufacturer.
