Connectivity
User Instructions
IDM corded
6
© SICK AG · Germany · All rights reserved · Subject to change without notice 8015906/2013-07-02

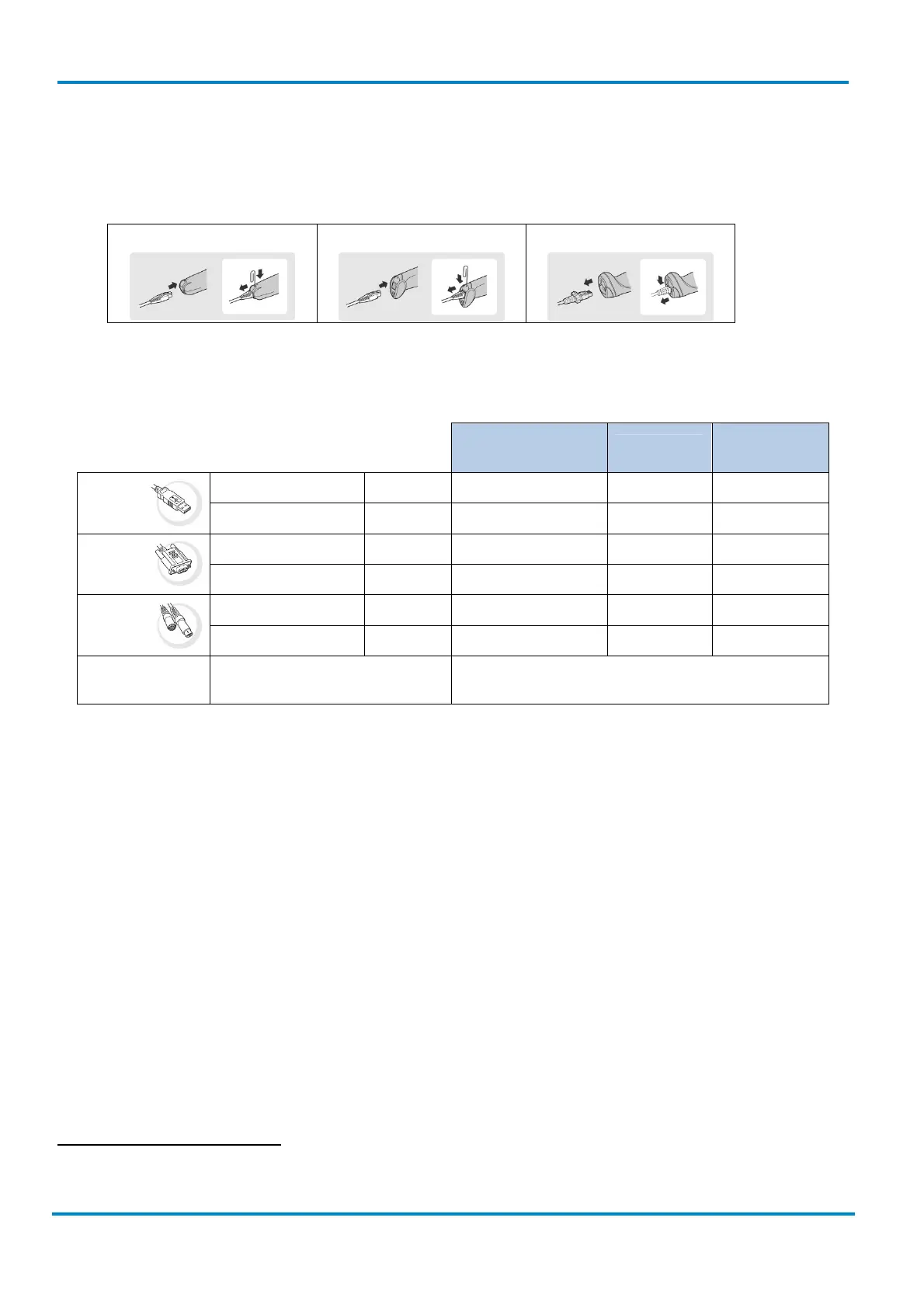

To connect the scanner, plug the cable into the interface port of the scanner and connect it to the host. To
remove the cable, straighten one end of a paper clip and insert it into the cable release hole to pull out the
cable. For IDM160/260 series you need to push down the bracket of the enclosure clip and pull out the cable.
IDM120 Series
IDM140/240 Series
IDM160/260 Series
Depending on the Scanner model different cables have to be used.
IDMx20, IDMx40,
IDMxxx Bluetooth
IDMx60
IDMx40 Wifi
IDMx60 Wifi
straight 1.8 m 6036728 6045195 6036728
USB
spiral 3.8 m
1
6039158 6045232 6039158
straight 1.8 m 6041540 6045196 -
RS-232
spiral 3.8 m 6039156 6045233 -
straight 2.0 m 6036726 6045194 -
PS/2
spiral 3.8 m 6039155 6045231 -
Power Supply
needed for operation with RS-232
cables
2
, Bluetooth and Wifi
6036722
1
If you want to use this cable for USB Com Port Mode, it is recommended to use an additional USB hub between cable and PC. The
USB hub will boost the communication signal and secure the communication.
2
If there is no power on Pin 6 or 9.
