2 PRODUCT DESCRIPTION
2.3 TRANSIC111LP variants
2.3.1 Variant for in-situ-measurement

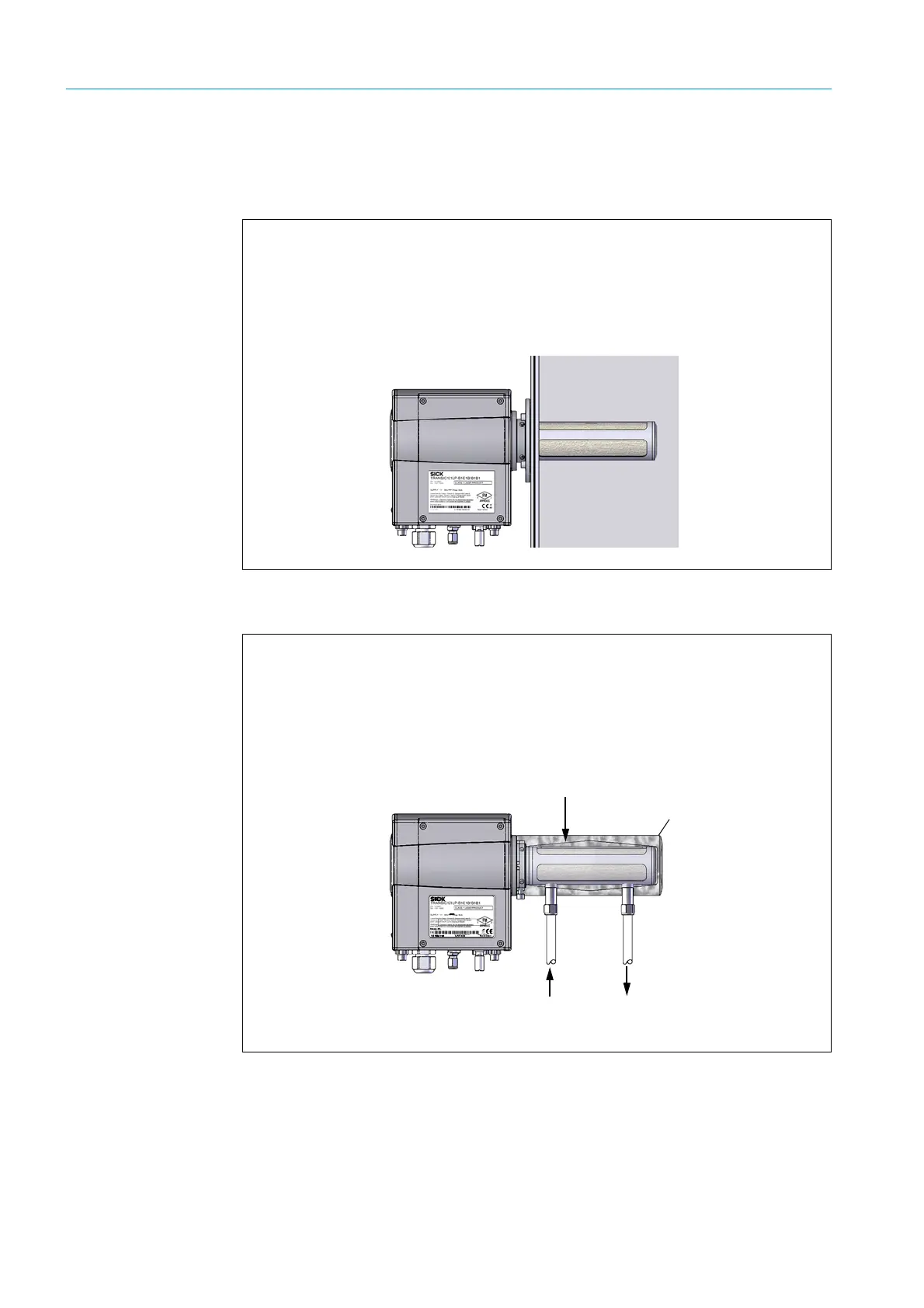

Fig. 2: Flange mounted TRANSIC111LP-A/-D/-F/-G/-H/-I/-J/-K
2.3.2 Variant for extractive measurement
Fig. 3: TRANSIC111LP-C/-E with sample gas cell and wall bracket
Measuring environment (process side)
0
2
: 0 … 25% 0
2
/ 0 … 100% O
2
T: −20 … +80 °C
p: 0.8 … 1.4 bar(a)
PS: 10 bar
DN: 50 mm
Environment
0
2
: Atmospheric oxygen concentration
(21% O
2
)
T: −40 … +80 °C
p: Atmospheric pressure variations
Outlet (back to process)Gas feed line
from process
Sample gas cell
Measuring environment (in sample gas cell)
0
2
: 0 … 25% 0
2
/ 0 … 100% O
2
T: −20 … +80 °C
p: 0.8 … 1.4 bar(a)
PS: 10 bar
V: 0.28 L
DN: 50 mm
Environment
0
2
: Atmospheric oxygen concentration (21% O
2
)
T: −40 … +80 °C
p: Atmospheric pressure variations
SN 11058999
SUPPLY 11..36 V
Pmax 6VA
PN 1999998
TRANSIC111LP-1B1B1B1B1B
CLASS 1 LASER PRODUCT
