4 OPERATION
4.4.3 Calibration gas, actual value (CAL.C)
1 Holds the analog output.
2 Displays the current O
2
concentration measured.

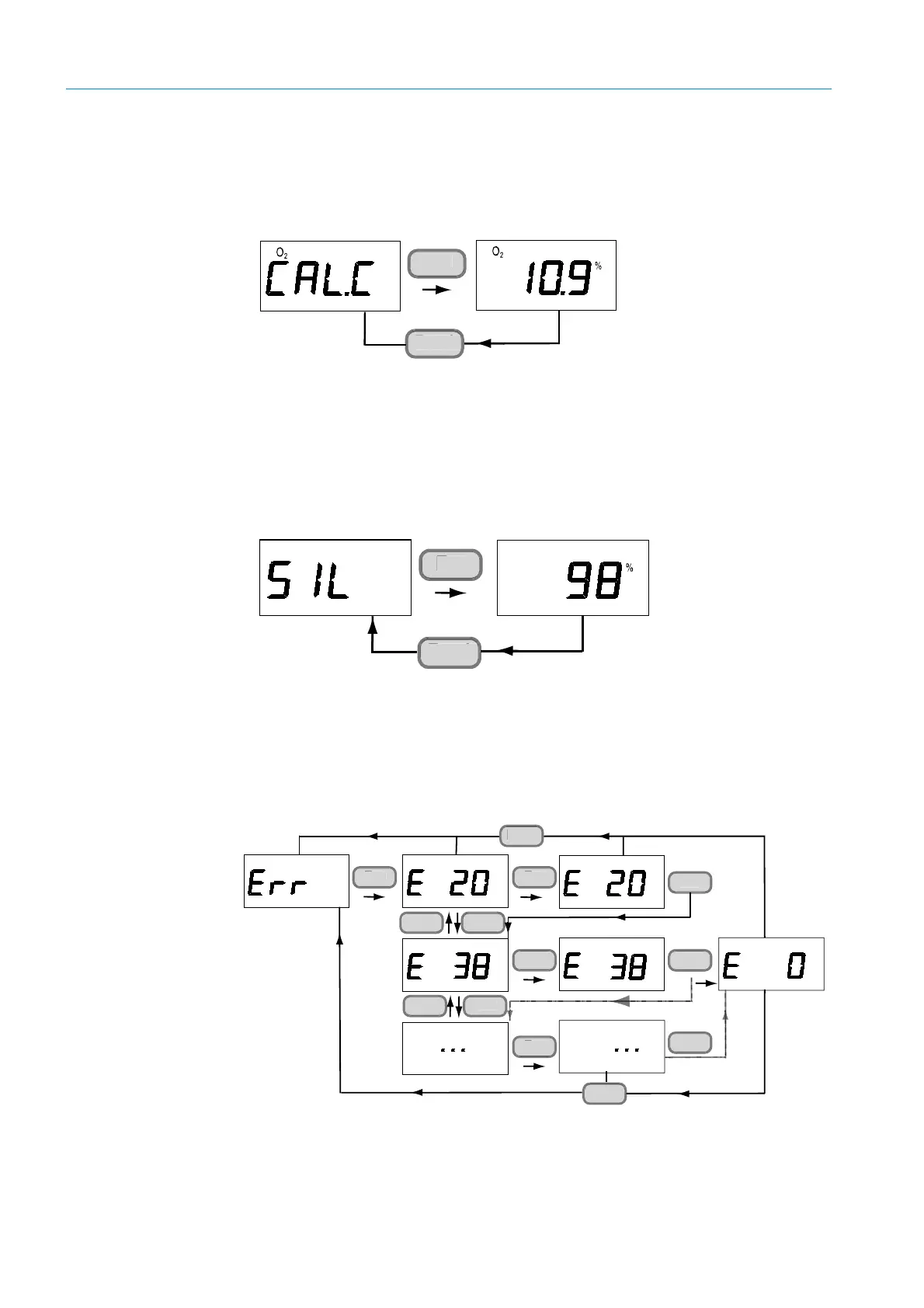

Fig. 19: Calibration gas, actual value display
4.4.4 Signal intensity (SIL)
1 Compares the current signal intensity of the laser on the receiver against the signal level
from the factory calibration.
2 The signal intensity serves to determine contamination on the optics. Important: The
laser signal can be amplified so that values above 100% are possible.
Fig. 20: Signal intensity display
4.4.5 Display of active and undeleted errors (ERR)
This menu displays all active error messages. Fig. 21 describes how the errors are read out
and deleted. The display shows E 0 when all errors have been deleted. Significance of error
numbers, see “Error Table”, page 92.
Fig. 21: Displaying all errors currently existing
