40 Flash programming, parameter setting
 The parameters for the CS1140 fire detection system are set via the mainte-
nance PC using the 'AlgoWorks' software tool kit.
 Online help text in various local languages
 2 user levels (service technician; national manager)
 Program new software using 'FlashTool' software. For the E3X102/103,
B3Q6../566 and E3H021 components, the application software is loaded to the
Flash-ROM via the maintenance PC using 'FlashTool' software.
 For details, see document 004282

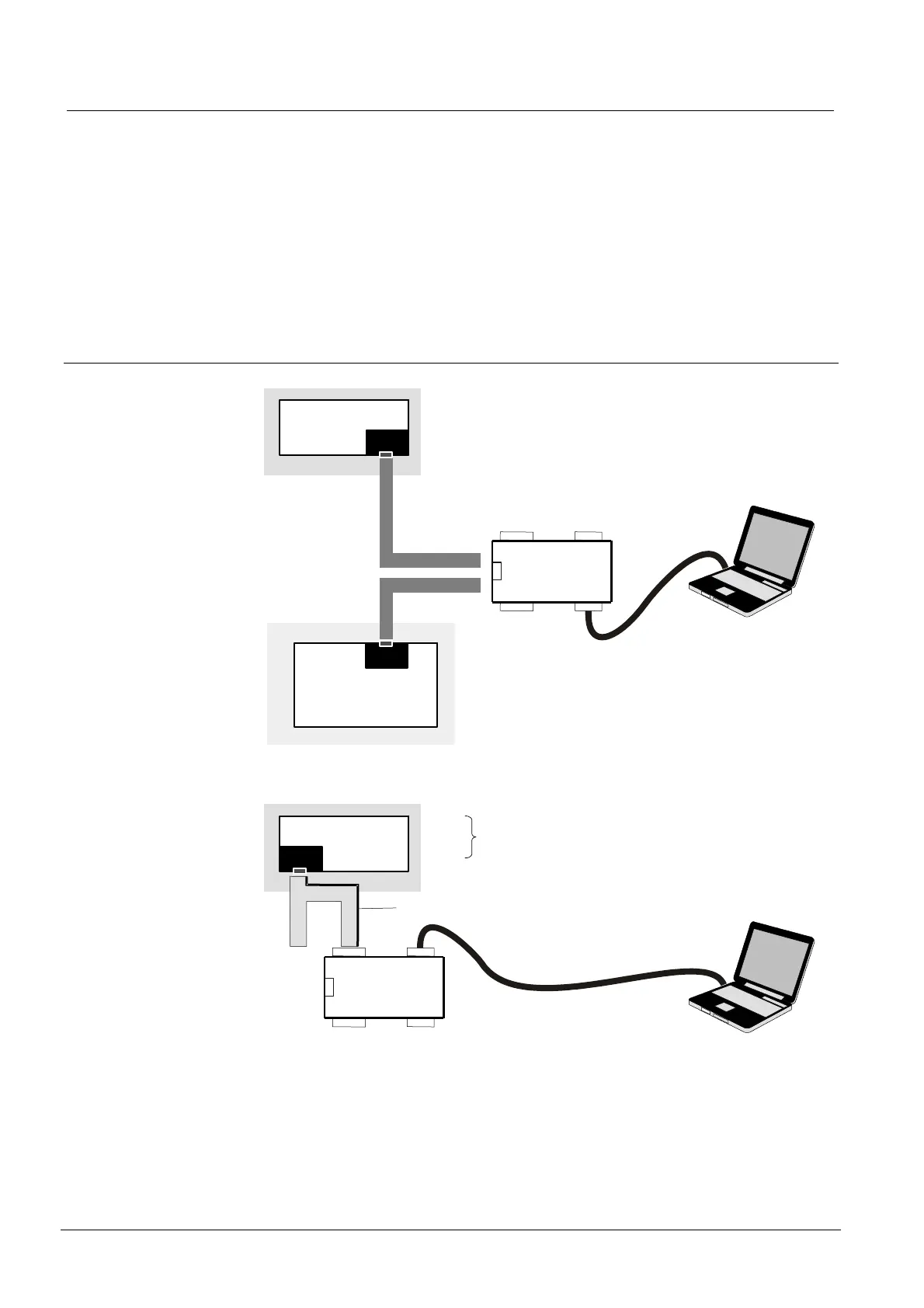

40.1 Flash programming of new application software
CPU
E3X102/103
ST2
AlgoPilot B3Q6..
CU/P
Operating unit
ST2
Maintenance-PC
with
‘FlashTool’
B3D021
Modembox
K2A2
K1A1
ST1
S5-4: 'ON' 1)
S5-2: 'ON' 1)
Maintenance-PC
with
‘FlashTool’
Gateway E3H021
ST2
Red marking
F14E320
B3D021
Modembox
K2A2
K1A1
ST1
S5-1
S5-2
Both set as 'external'
(ON) for download
S6-2: 'ON' 1)
1) For releasing the Flash programming. Press 'Reset' after changing.
