Housing range H67...
59
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011
22 Housing range H67...
H67G601/620
H67G611
1
2
H67T101
1
2
H67T111
Including component carrier with:
– Cable ducts
– Mains terminals (pre-wired)
– Retaining plate for batteries
Doors can be locked with DOM
lock
H67T101/H67T111:
Measurements 434 x 110 x 300 mm
Material Steel sheet
Color RAL7035 light gray
Protection category IP30
Z1K020
Z3S090
H15Z300
H67Z020
1 For AlgoPilot B3Q...
2 For B3Q321/B3R051/H23B010 or H23B040 –> see pages 31, 37 and 51
Details of housings H67... –> see document 1275
Components

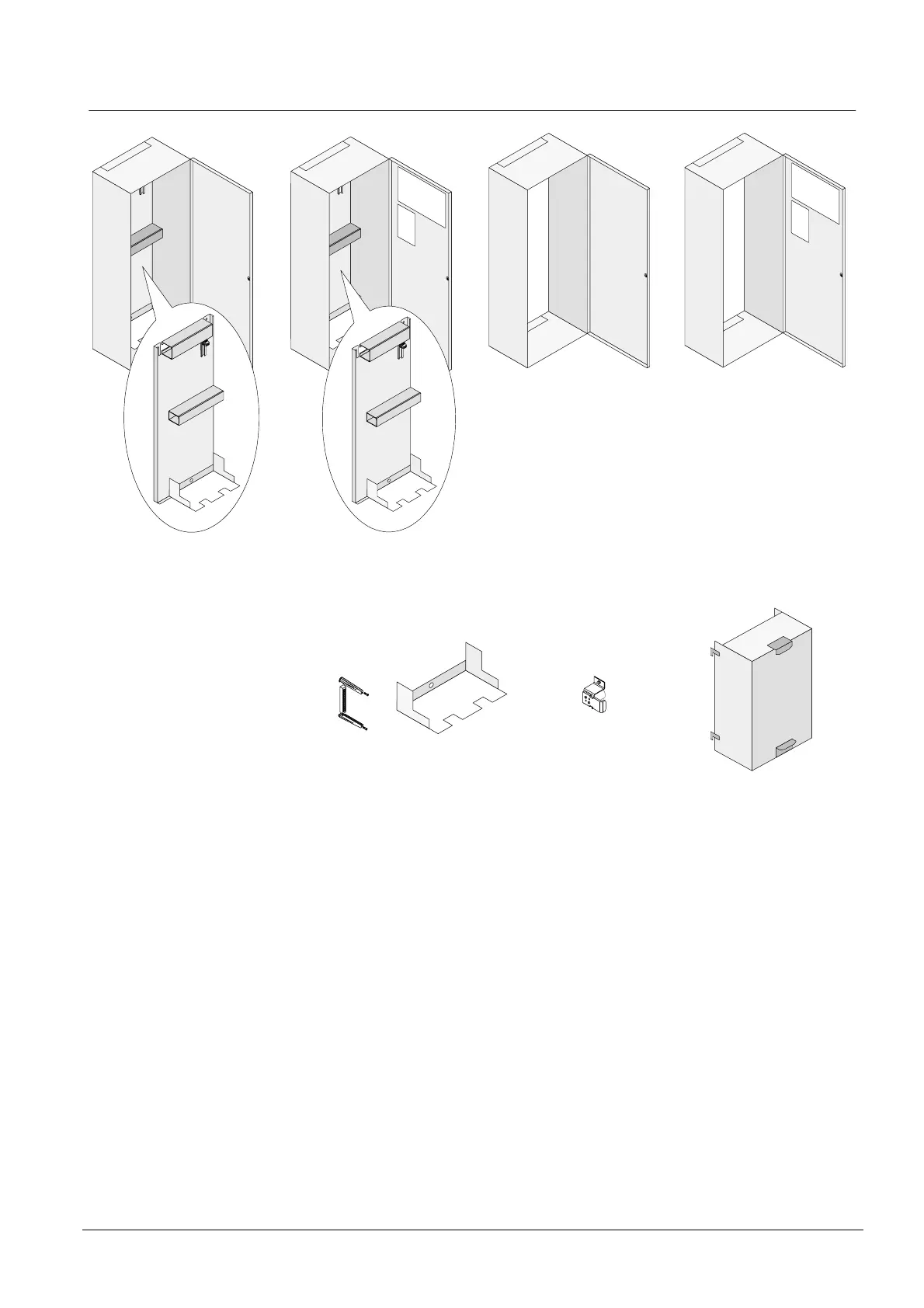

Complete housing kits (with component carrier)
H67G601 4955500001 'Doors without cut-out' housing kit
H67G611 4956600001 'Doors with cut-out' housing kit
H67G620 5778630001 'Doors without cut-out' housing kit for marine
Housings, component carriers and options (individual parts)
H67T101 4956150001 Housing frames and 'doors without cut-out'
H67T111 4956280001 Housing frames and 'doors with cut-out'
H67E101 5097050001 Component carrier for H67... Including cable ducts, mains terminals and battery retaining plate
H67Z020 4969020001 Shielding hood for H67E...
H15Z300 4761970001 Retaining plate for batteries For H67E110; max. 5 items per component carrier (= 5 pairs of bat-
teries)
Z1K020 4754860001 Terminal block and board holder Without cables (for connecting directly to the plug-in module)
Z3S090 4969570001 Key switch options (no locking cylin-
der)
For subsequent retooling of DOM –> KABA/KESO/SEA etc.
