Housing range H47...
58
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011

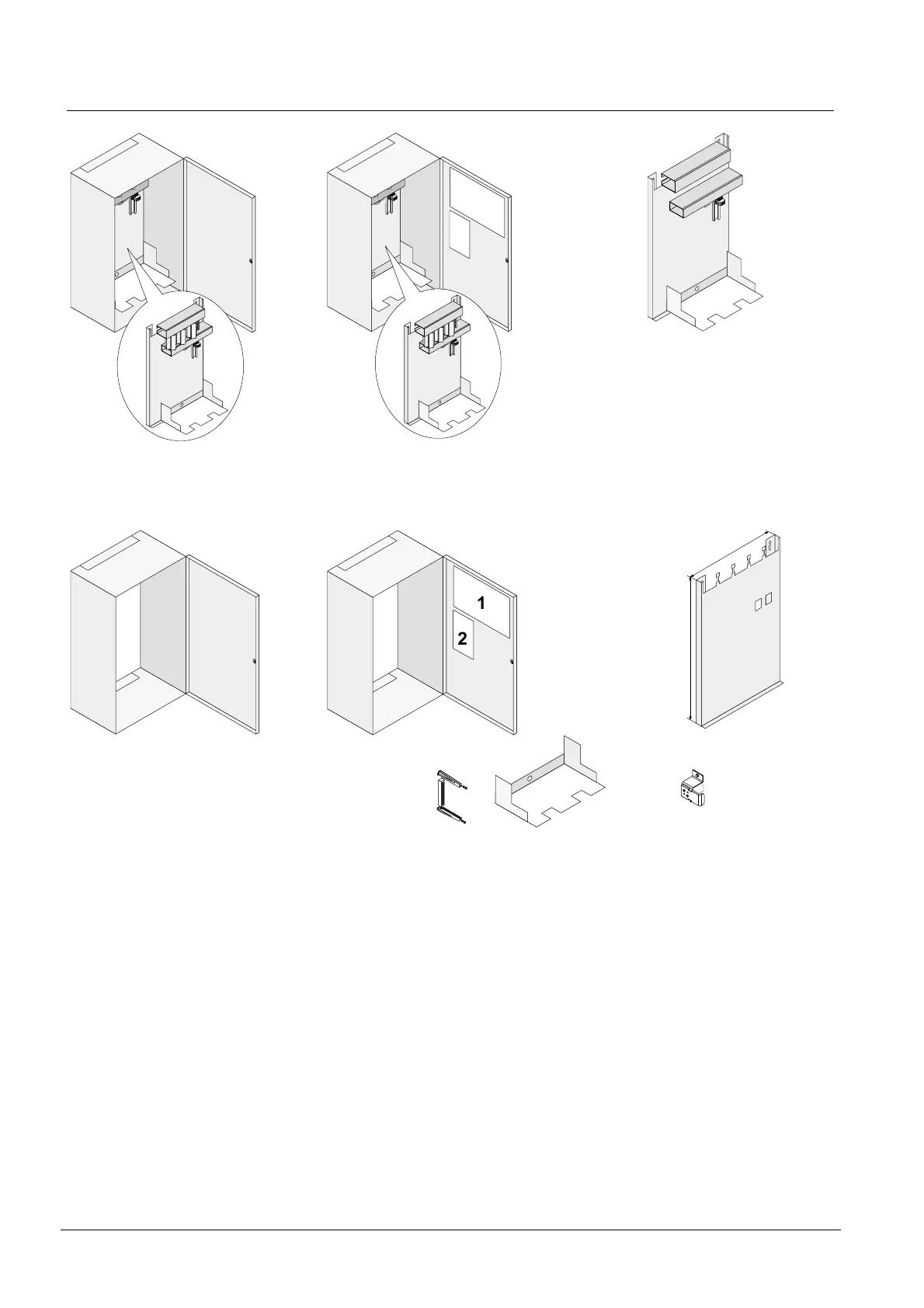

21 Housing range H47...
H47G601
H47G611
1
2
H47E100
Including component carrier with:
– Cable ducts
– 3 Z3I330 terminal blocks
– Relay rails (max. 8x Z3B171)
– Mains terminals (pre-wired)
– Retaining plate for batteries
Doors can be locked with DOM lock
H47T101
1
2
H47T111
H47E110
690 (16HE)
430
H47G601/611:
Measurements 434 x 735 x 300 mm
Material Steel sheet
Color RAL7035 light gray
Protection category IP30
Z1K020
Z3S090
H15Z300
1 For AlgoPilot B3Q...
2 For B3Q321 / B3R051/H23B010 or H23B040 –
> see pages 31, 37 and 51
Details of housings H47... –> see document 1274
Components
Complete housing kits (with component carrier)
H47G601 4953720001 'Doors without cut-out' housing kit
H47G611 4953850001 'Doors with cut-out' housing kit
Housings, component carriers and options (individual parts)
H47T101 4953560001 Housing frames and doors without cut-out
H47T111 4953690001 Housing frames and doors with cut-out
H47E100 4748850001 Component carrier for H47... Including cable ducts, mains terminals and battery retaining
plate
H47E110 4761840001 Component carrier for H47... 'Empty' For non-standard applications
H15Z300 4761970001 Retaining plate for batteries For H47E110; max. 3 items per component carrier (= 3
pairs of batteries)
Z1K020 4754860001 Terminal block and board holder Without cables (for connecting directly to the plug-in mod-
ule)
Z3S090 4969570001 Key switch options (no locking cylinder) For subsequent retooling of DOM
–> KABA/KESO/SEA etc.
