Siemens AlgoRex CS1140 - 17.3 Connection lines between control panel and external operating units

AlgoPilot B3Q... operating terminal
53
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011

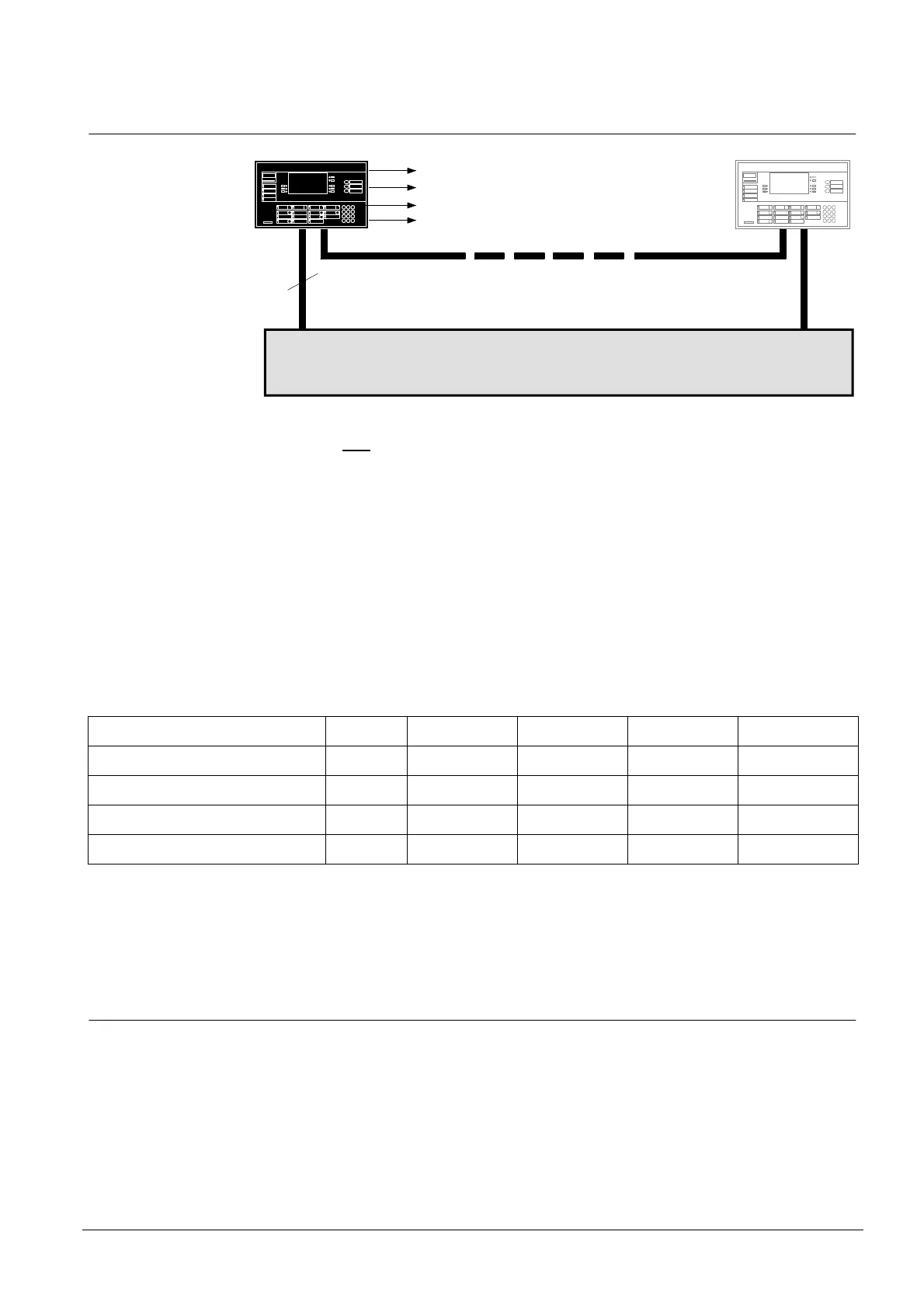

17.3 Connection lines between control panel and external operating
units
Options:
B3Q321 (Fire department control terminal)
B3R051 (Parallel indicators)
Printer, PSA/Pager
2..11 leads
Loop C-Bus
max. 1000m ø 0,6mm G51
(
incl. return line
)
max. 1400m ø 0,8mm G51
(
incl. return line
)
per Loop with
per Loop with
Control
terminal
AlgoPilot
B3Q...
Control unit CC11/CI11
E3I040 (LON interface)
Control
terminal
AlgoPilot
B3Q...
When planning a system, the following condition must be observed:
At least one
operating unit must satisfy the EN54 standard, i.e. be equipped with
degraded mode and emergency supply.
EN54 requirements:
 Communication as loop line –> design C bus as loop line
 Operation even during degraded mode –> 3 extra wires for emergency
operation
 Second disconnected 24 V supply –> 3 extra wires or autonomous
supply
The number of wires in the connection cable depends on usage and the distances
between the stations:
 Is the operating unit supplied with 24 V by the control panel or autonomously?
 Is an emergency supply according to EN54 also managed?
 Is the degraded mode path (emergency operation) also managed?
Application C bus 24 V supply Emergency
power supply
Degraded mode
path
Number of wires
24 V supply as of control panel EN54
satisfied
●
(2 wires)
●
(3 wires)
●
(3 wires)
●
(3 wires)
11
24 V supply as of control panel without
degraded mode and emergency supply
●
(2 wires)
●
(3 wires)
5
Autonomous power supply EN54 satis-
fied
●
(2 wires)
●
(3 wires)
5
Autonomous power supply without de-
graded mode and emergency supply
●
(2 wires)
2
Notes:
– Degraded mode path also needed between CPUs or to a remote gateway
– Degraded mode path and emergency supply are not designed as loop line
– Emergency supply via separate cable or C bus return
17.4 Voltage supply (24 V)
 The AlgoPilot B3Q... operating units are designed for the 20..30 V DC voltage
range
 The maximum current at 24 V is 400 mA
 Max. lengths of line (approximate values):
– With cable of ø 0.8 mm –> 180 m
– With cable cross-section of 1 mm
2
–> 360 m
 The power requirement for the options (fire brigade operating unit, parallel dis-
play, printer, PSA/pager, LON plug-in unit) must also be taken into account
