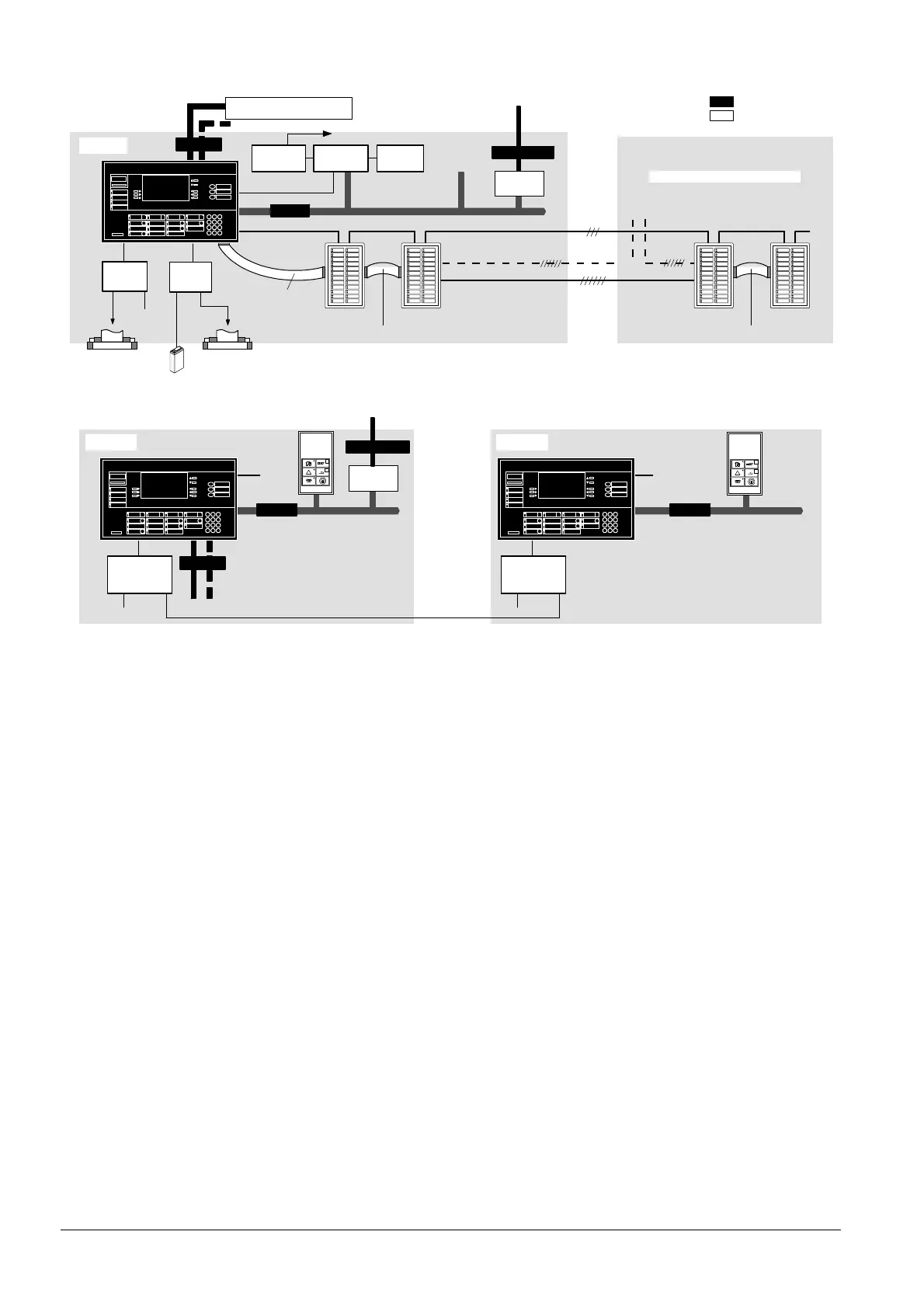

AlgoPilot B3Q... operating terminal
52
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011
I-Bus
24V
Basic equipment
B2F020 E3C011
FA...
I-Bus
B3R051
B3R051
CC11, CI11, CK11
B3R051 B3R051
max.
1000m
F12A100
F12A100 F12A100/470
Option
mains
Battery
activation of Mimic Display
Data bus
Parallel branching permissible
CT11
Printer
12
C-Bus
CT11
E3I020
RS232
12
CA11
I-Bus
24V
not monitored
E3I020
RS232
C-Bus
1
2
E3I020
RS232
K3I090
PSA/Pager
or
internal or
external printer
24V supply line
B3R051:
- can be installed separately, however at max. 1000m
- max. 24 units, however max. 8 addresses
- free allocation of the LEDs (programming according to application)
- line and equipment not monitored
separately connected
parallel indicator
B3Q321
E3I040
LON-Bus
E3I040
LON-Bus
B3Q321
Components
AlgoPilot B3Q6../566 operating terminal
B3Q... AlgoPilot operating terminal All AlgoPilot variants –> see page 47
CT/CI/CA
Flash program file
For 'CT' / 'CI' / 'CA' –> see page 50
Z5B...
Labeling kit Depending on language –> see page 50
A
dditional display and operating devices
B3Q321 5656840001 'CH' fire brigade operating unit CH only
B3R051 4905130001 '2x24 displays' parallel display
Housing H23/H26/H28/H37/H38/H47/H67/H98../19" For details of housing –> see page 54 – 61
Op
tions
V2G050 5706110001 Cable for 9 V lithium battery For 3rd voltage source for B3Q6.../566
V2G040 4759230001 Cable for 9 V lithium battery For 3rd voltage source for B3Q4..
E3I020 4602390001 RS232 plug-in module For printer connection or 'CA11'
Z1B020 4759070001 Installation options for E3I020 / B3Q.... For installation of E3I020 on rear of AlgoPilot B3Q...
K3I090 5108200001 PSA interface board For connecting PSA/pager and internal/external printer
Z1B060 5259840001 Installation options for K3I090 Compulsory for installation of K3I090 on rear of AlgoPilot
B3Q...
Z3I530 4849720001 Adapter to K3R071/72, B3R051 Adaptation of flat cable on terminals
F12A100 4952750001 'Micro' 12-pole, 0.4 m flat cable For B3R051
F12A470 4952880001 'Micro' 12-pole, 1.5 m flat cable For B3R051
E3I040 4993100001 LON plug-in module Converter between I bus and LON bus
Z1B070 A5Q00001720 Installation options for E3I040 Compulsory for installation of E3I040 in housing H28G200
Autonomous power supply
B2F020 A5Q00025281 Converter 115/230 V DC ->29.6 V DC, 6 A
B2F040 5102990001 Converter 115/230 V DC ->29.6 V DC, 3.5
A
E3C011 5054790001 Plug-in battery charging module
FA2005-A1 A5Q00019677 12 V/15 Ah battery
Z3I470 4843410001 Cable set for H38... For AlgoPilot B3Q... connection with E3C011
