Siemens AlgoRex CS1140 User Manual

Extinguishing
88
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011

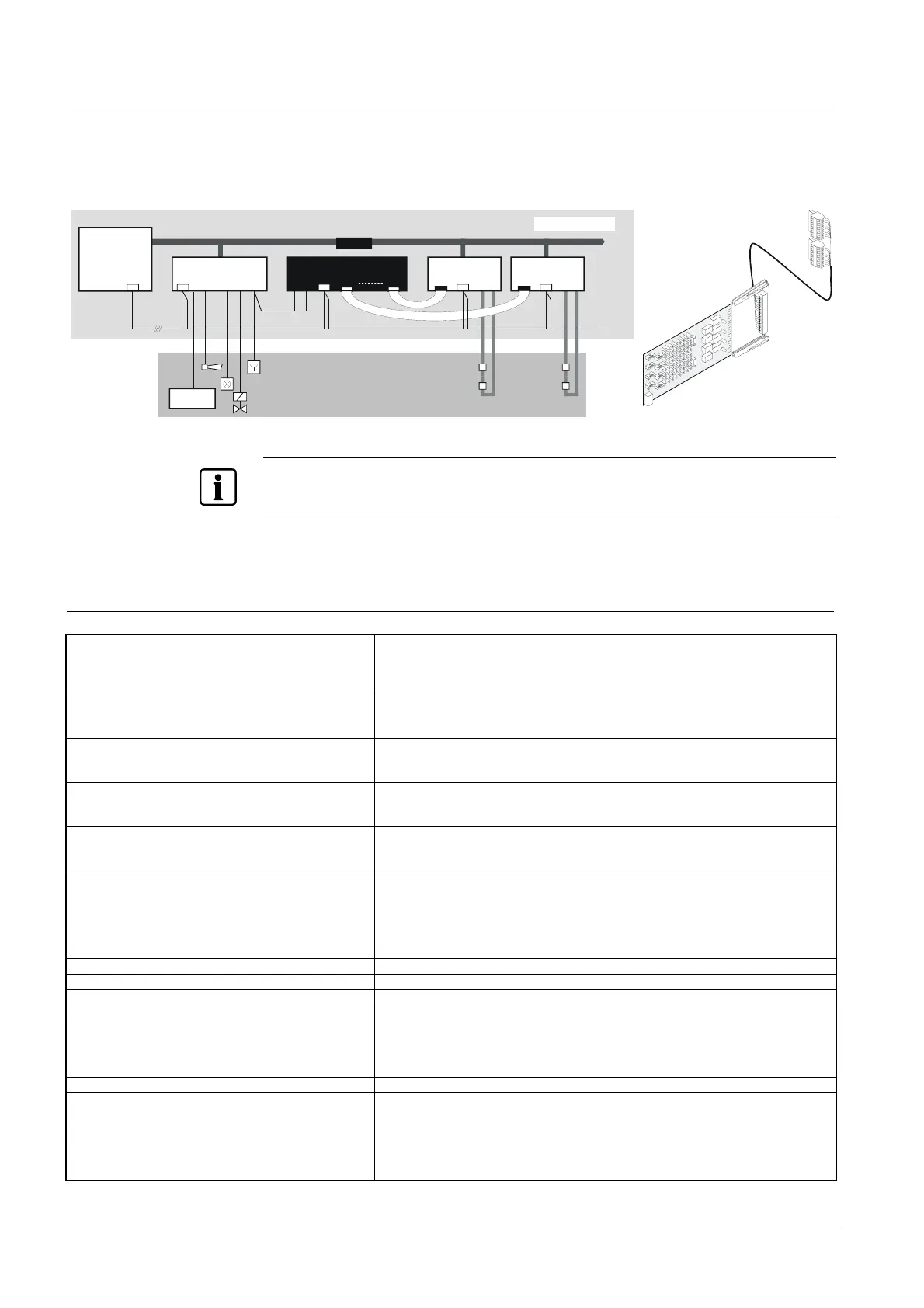

32.2 Degraded mode link E3G110 option
 Allows extinguishing to be activated automatically even if the main CPU fails.
Depends on 2 detectors.
 The detectors in the extinguishing SECTION must be split over 2 independent
detector lines.
E3M071
B3Q440
E3G080
K1
CPU
E3X10.
or
B3Q...
E3G110
K1
24/5V
1......4
K1
ST1 ST8
ST10
K1
E3M071
ST10
K1
I-Bus
Manual activation
interactive
detectors
CC11, CI11
DM1103
E3G110
Z1I030/050
Note:
'ST10' connector only provided for E3M060 (MS9i), E3M071 (interactive), E3M171 (interactive Ex),
E3M080 (collective) and E3M111 (AnalogPLUS)
'MIMIC DISPLAY' connector for E3M141
32.3 Key data
'Delayed' area valve – Activation delay of 0..240 s
– Limitation of activation period of 0..240 s or until reset
– Monitored line
– Line can be adjusted to area valve
'Non-delayed' main valve
(activation of pneumatic path)
– Limitation of activation period of 0..240 s
– Monitored line
– Line can be adjusted to main valve
Alarm horn – Can be turned off by extinguishing operating unit or control panel
– Monitored line
– Activation mode active continuously/can be programmed to pulse
Illuminated panel – Can be shut down separately or remains active until reset
– Monitored line
– Activation mode active continuously/can be programmed to pulse
Manual activation – Directly only E3G080
– Also functions when control panel is in 'degraded mode'
– Line monitored
Automatic activation – Via detector –> control panel, parameters can be set for alarm, either for:
– Detectors in same OBJECT
– Detectors in different OBJECTS
– Detectors in same or different OBJECTS
– All detector models can be used (interactive / AnalogPLUS / collective)
Stop/block button – Separate monitored line
'Loss of extinguishing agent' reporting contact – Separate monitored line
'Extinguishing blocked' reporting contact – Separate monitored line
'Extinguishing activated' reporting contact – Separate monitored line
Local operating unit – Using 'Extinguishing' operating unit B3Q440
– Usage recommended, but not compulsory
– Max. 4 operating units possible
– Via LON data bus with monitored line
– Length of line up to 600 m
Fire control – Via control panel control output
Special feature – Autonomously functioning I bus component
– Integrated degraded mode function
– Parameter settings via AlgoWorks
– User functions saved on E3G080
– Several extinguishing SECTIONS can be interlocked with one another
– Automatic adjustment function
