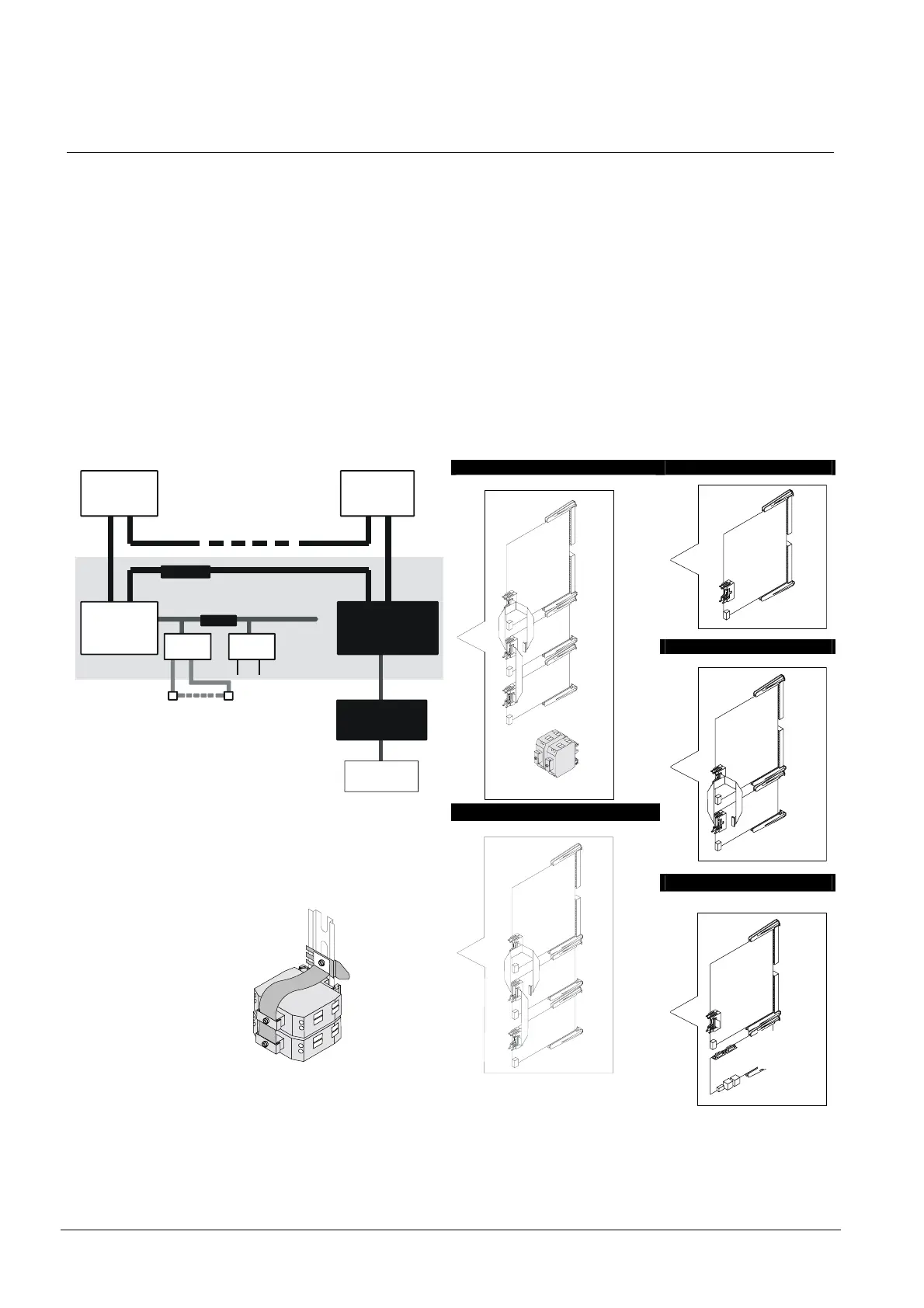

29 Gateway
29.1 Main features
 C bus network <–> DMS / LMS connection via V28 interface (RS232)
 Conversion C bus <–> CERLOOP/CERBAN/ISO1745
 For bridging distances of up to 1000 m (double V28 modem integrated)
 For distances > 1000 m, use FSK/PSK modem
 Several gateways are possible per C bus network, see section 8
 Is preferably accommodated in a housing of a fire control panel
 Can also be operated autonomously with separate supply (E3C011 + B2F020 +
batteries)
 Extra hardware is needed for the connection to the CERLOOP network
(K1H022, K1D081 or K1D121)
 Extra hardware is needed for the connection to the NK8000 network (NK823x.2,
NKA8011-A1, NZ8201)
 Check according to outline quantities section 9.3
CERLOOP (V28) CERBAN (V28)
E3H021
CERBAN (FSK)
I-BUS
DMS/LMS
DMS8000
CERLOOP/
CERBAN/
ISO1745
CT11 CT11
CC11
CI11
CK1143
C-BUS
module
Detector
Line- Control-
E3H021
K1H022
K1D081
M3P030
CERLOOP (FSK)
E3H021
K1D140
NK8000 (Ethernet)
Note:
Select corresponding protocol depending on application.
Assign the DMS network address to CC/CI and CK (via program-
ming in AlgoWorks)
For valid DMS network address, see document 004075
E3H021
K1H022
K1D121
Installation of modem filter
under network terminals
–> see installation example on page
83
E3H021
NK823x.2
NKA8011-A1
NZ8201
