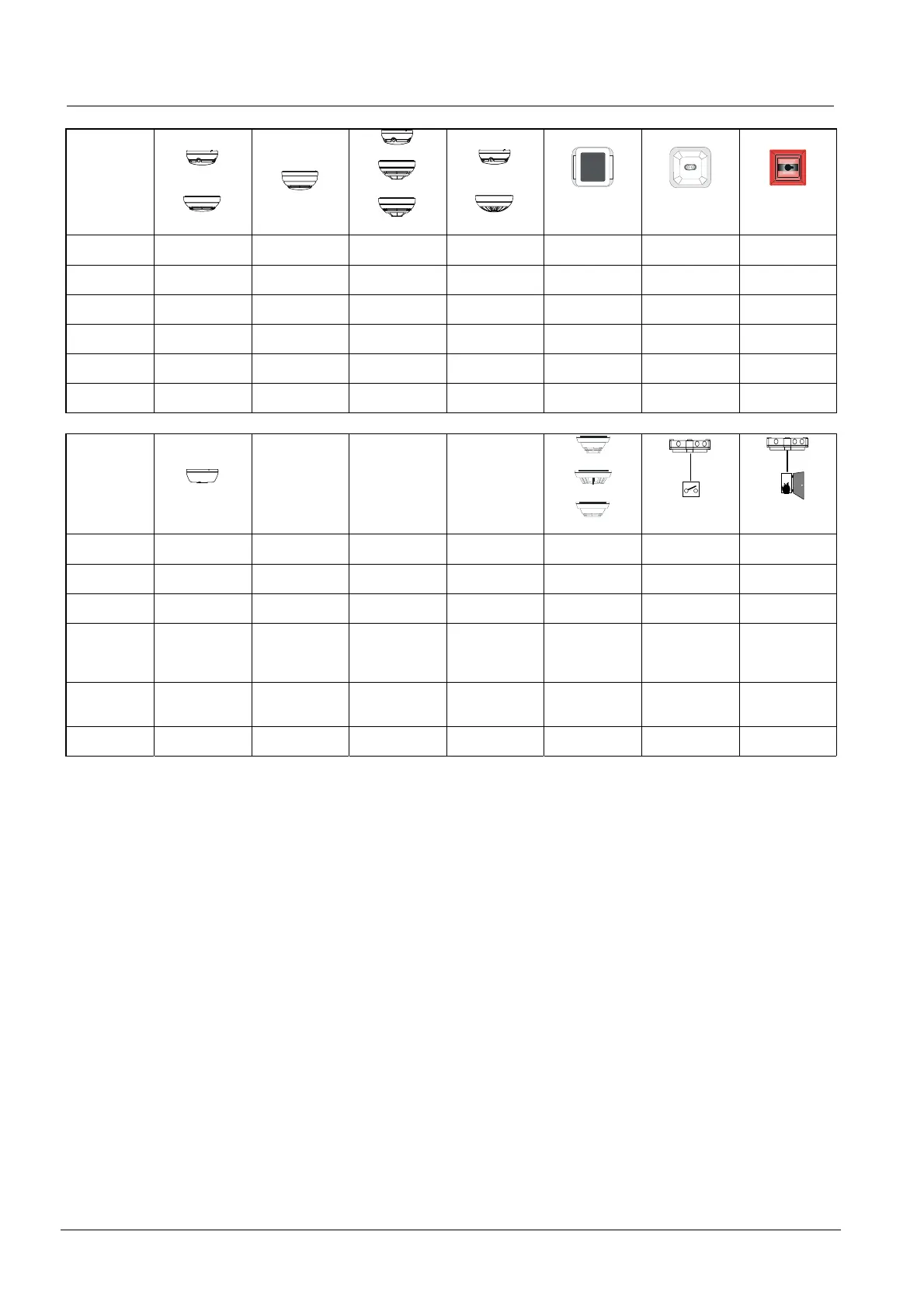

26.1 Overview of recording periphery
FDO
DO
DOW
FDOOT
DOT
DOTE
FDT
DT
FDL
DLO
FDF
DF
FDM
DM
Interactive
E3M071
DO115x DCW1151
DOT115x
DOTE1152
DT1152 DLO1191 DF119x
DM115x
DMA1153
Interactive Ex
E3M171 1)
– –
Via SB3
DOT1151A-Ex
Via SB3
DT1151A-Ex
–
Via SB3
DF1151-Ex
Via SB3
DM115x-Ex
AnalogPLUS
E3M111
DO113x
–
DOT1131 DT113x
–
DF119x
DM113x
DMA1133
Collective
E3M080
DO110x
– –
DT110x DLO1191 DF119x
DM1101
DMA1103
MS9i
E3M060
– – – – – –
(AT50Mi)
FD20
E3M141
FDO221
FDO241
–
FDOOT221
FDOOT241-9
FDT221
FDT241
FDL241-9
FDF221-9
FDF241-9
FDM221
FDM223
FDS
MS6
MS712
MS716i
MS9i
MS24
Collective
Ex detector
OH320C
HI320C
OP320C
Contact detec-
tor
Output modu-
le
Interactive
E3M071
– – Via DC1192
Via DC1192
+ SB3
CB320A DC1157-AA DC115x
Interactive Ex
E3M171 1)
– – – – – – –
AnalogPLUS
E3M111
– – –
Via DC1192
+ SB3
CB320A DC113x DC113x
Collective
E3M080
–


Via DC1192
+ SB3
or
via SB2 2)
– – –
MS9i
E3M060
– –

Via E90Mi
+ DC1192
+ SB3
–
E90Mi
etc.
E90Ci
FD20
E3M141
FDS221
– – – –
FDCI222 FDCIO222
1) Before SB3, all E3M071 devices possible
2) Note page 70 for SB2 limitations
DO / FDO Optical smoke detector
DOT / FDOOT Neural and/or multi-sensor smoke detector
DOTE Multi-criteria smoke detector
DT / FDT Heat detector
DLO / FDL Linear smoke detector
DF / FDF Infrared flame detector
DOW Radio smoke detector
DCW Radio gateway
DM / FDM Manual call point
DC / FDC Input/output module
FDS Alarm sounder
DC1192 Detector line coupling
SB3/(SB2) Safety barrier 2)
CB320A Input module for collective detectors (SynoLINE300)
OH320C Multi-sensor smoke detector (SynoLINE300)
HI320C Heat detector (SynoLINE300)
OP320C Optical smoke detector (SynoLINE300)
