Siemens AlgoRex CS1140 User Manual

C bus stations
17
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011
7 C bus stations

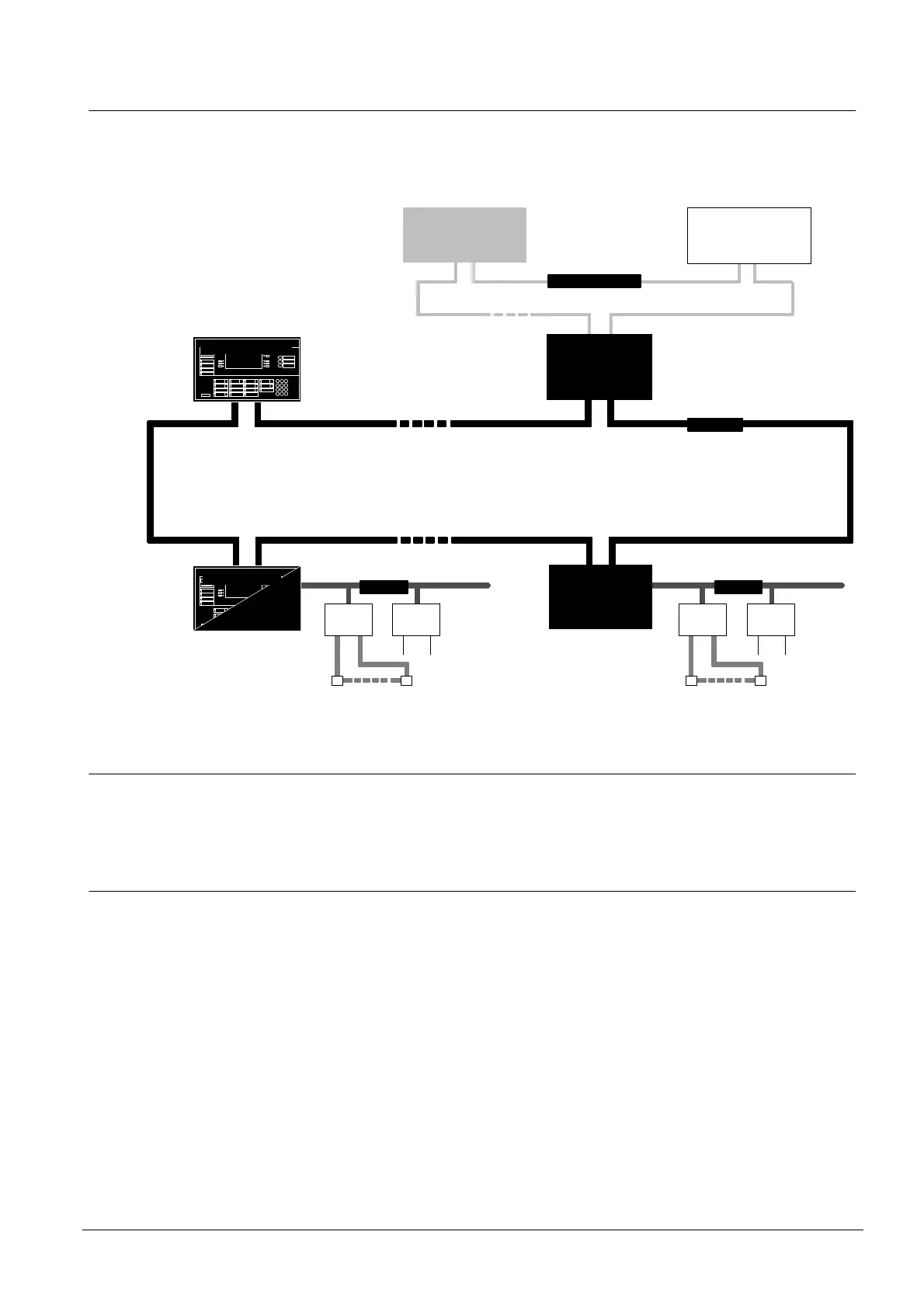

Max. 16 stations (participants) can be operated in the C bus network.
 Any stations (CC, CI, CT, CK) in any arrangement are possible below the limits
stated below
 max. 64 AREAS
I-Bus I-Bus
C-Bus
DMS/LMS
(management
system)
CERLOOP
Gateway
C-Bus network
- max. 16 stations
- 4 different types of stations
- loop line max. 1400 m with G51 ø 0.8 mm
Line
module
Control
module
Main-CPU
Detector
CT11
CK11
CI11
CC11
Control terminal
Main-CPU
(max.15)
(max.16)
(max. 2)
(max.15)
Detector
Line
module
Control
module
Control terminal
1)
1) If more than two, please contact hotline.
7.1 Station
 Participants on C bus network
 Several stations can be accommodated in the same housing or housings distrib-
uted geographically.
7.2 Station type
 Distinguished by function and illustrated by a particular component
 Certain components can be used for different station types
Station types available:
– CI11 Combination of main CPU and operating unit (AlgoPilot)
– CC11 Main CPU
– CT11 Operating unit (AlgoPilot)
– CA11 Parallel operating unit
– CK11 Gateway (e.g. conversion from C bus protocol –> CERLOOP protocol)
