Siemens AlgoRex CS1140 User Manual

Housing range H23... / H26... / H28...
55
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011

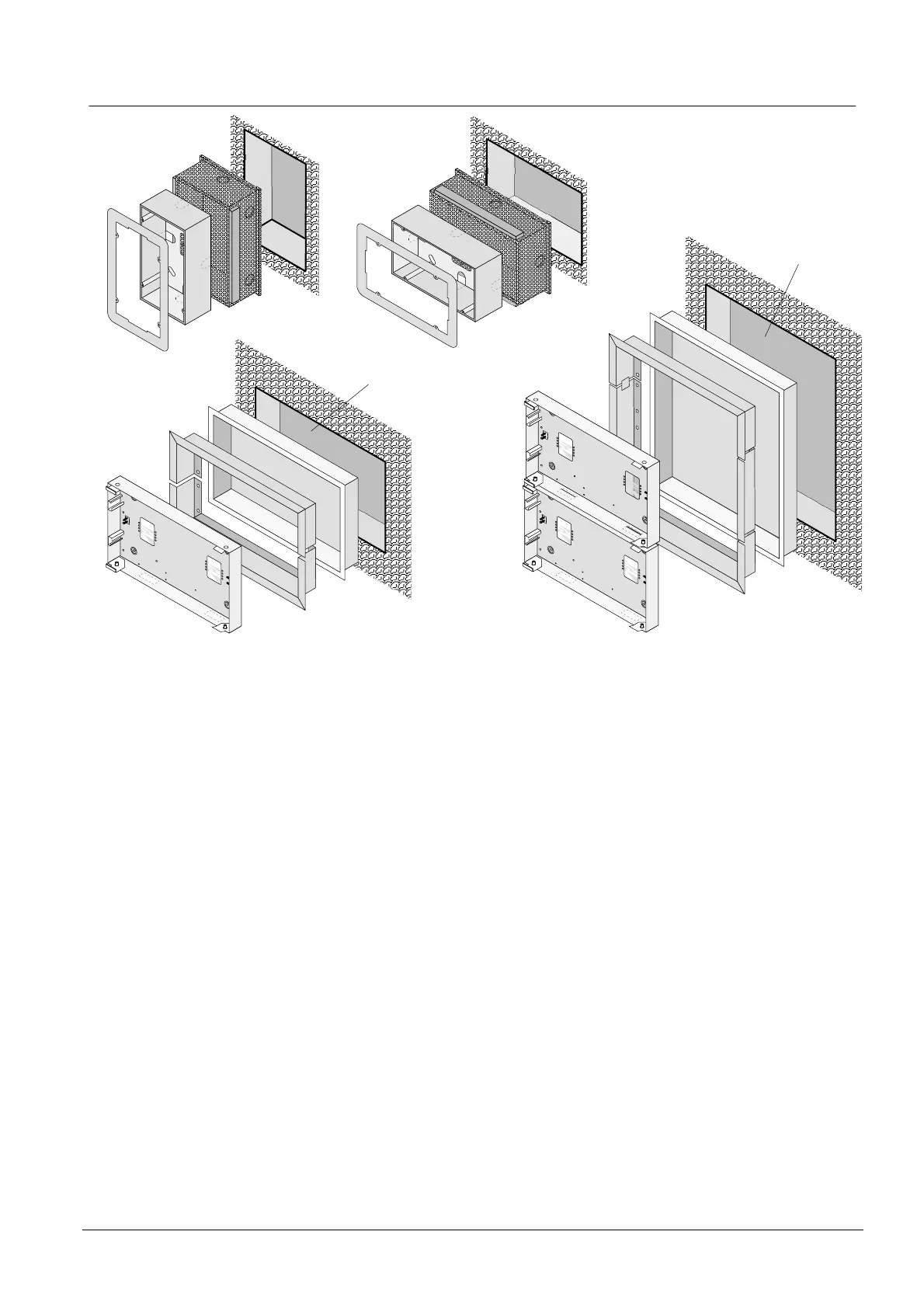

18.1 Recess-mounting of H23G230 and H28G200
H23U230
H23G230
H23Z230
H23Z230
H23G230
H23U230
H28G200
H28Z010
UPR28
H28G200
H28G200
H28Z010
H28Z020
UPR29
1
1
2 Opening in wall
 For details of housings H23../H26.../H28... –> see document 1393
Components
Housings and doors
H23G230 4750910001 Plastic housing For additional display and operating devices
H26G220 4628000001 Plastic housing For remote AlgoPilot B3Q... operating console
H28G200 4099440001 Housing (without doors) For various applications
H28T020 4105640001 Housing doors for printer B2Q191
H28T110 4749820001 Housing doors for AlgoPilot B3Q... / B3R...
H28T120 4749950001 Housing doors for 4 B3R051 parallel dis-
plays
H28T130 4759100001 Housing doors for plan compartment and
1x B3Q321 / B3R051 etc.
H28T150 4843670001 Housing doors without cut-out with KABA
lock
H23B020 4762780001 Cover for H28T110/130
Options for recessed mounting
H28Z010 4105930001 Recessed frame kit For recessed mounting of housing H28G200
H28Z020 4136000001 Recessed mounting intermediate piece With recessed mounting, also for 2 x H28G200
under one another
H23U230 5328790001 Recess-mounted box for B3Q5xx For recessed mounting of housing H23G230
H23Z230 5328820001 Recess-mounted frame for
B3Q5xx/B3R051
For recessed mounting of housing H23G230
UPR28 4304340001 Recess-mounted box For 1 housing H28G200 (may be needed)
UPR29 4304470001 Recess-mounted box For 2 housings H28G200 one under the other (may be needed)
