Siemens AlgoRex CS1140 - Relay Outputs, Station Types CT11 and CI11

Control plug-in modules
77
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011

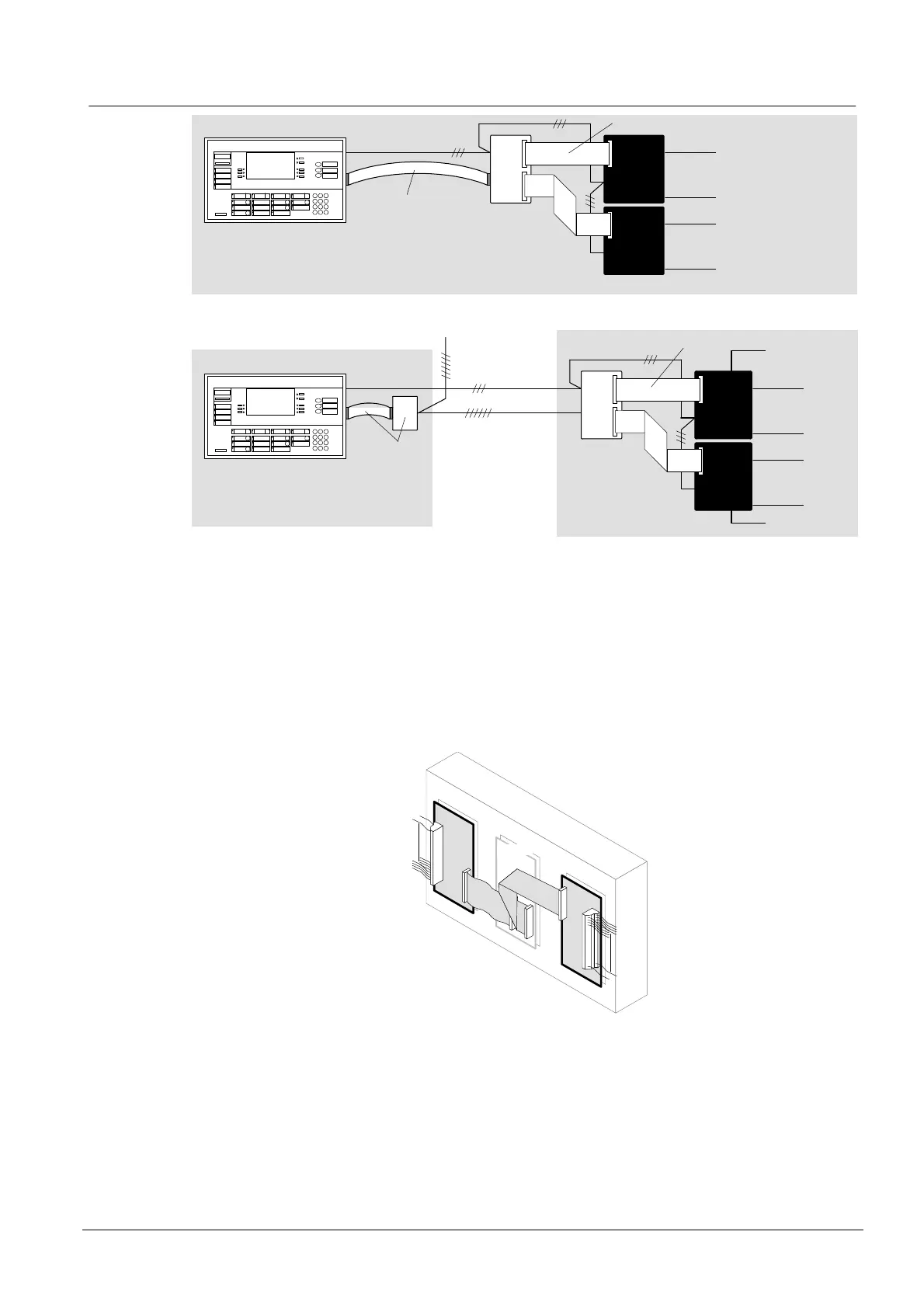

27.9 Relay outputs, station types CT11 and CI11
AlgoPilot B3Q...
Z3I530
(Adapter)
24V
24V
AlgoPilot B3Q...
Parallel branching permissible
1
48
1
24
1
24
K3R072
max. 24
devices, however
max. 8 addresses
1
48
1
24
24 outputs
max. 30V/1A
1
24
External potential
(
switchable via
j
umper X1......X24
)
1)
1)
1)
K3G060K3G060
K3G060K3G060
Flat cable supplied with K3G060
+ / -
+ / -
F12A100
or
F12A470
Data bus
max.1000m
(not monitored)
K3R072
max. 24
devices, however
max. 8 addresses
Flat cable supplied with K3G060
24 outputs
max. 30V/1A
24 outputs
max. 30V/1A
24 outputs
max. 30V/1A
 For details, see document 001260
K3G060:
 2 K3G060 can be connected per K3R072
 24 potential-free relay closing contacts
 Contacts not monitored
 Contacts can be linked individually via jumpers to externally supplied V+ or V–
Housing provided by customer
24 relay outputs
24 relay outputs
K3R072
K3G060
K3G060
Components
K3R072 5286050001 Mimic display activation
K3G060 5287860001 Relay board Option for K3R072
Z3I530 4849720001 Adapter for K3R072/B3R051 Adaptation of flat cable on terminals
F12A100 4952750001 'Micro' 12-pole, 0.4 m flat cable From AlgoPilot B3Q... to K3R072/B3R051
F12A470 4952880001 'Micro' 12-pole, 1.5 m flat cable From AlgoPilot B3Q... to K3R072/B3R051
