Siemens AlgoRex CS1140 User Manual

Flash programming, parameter setting
107
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011

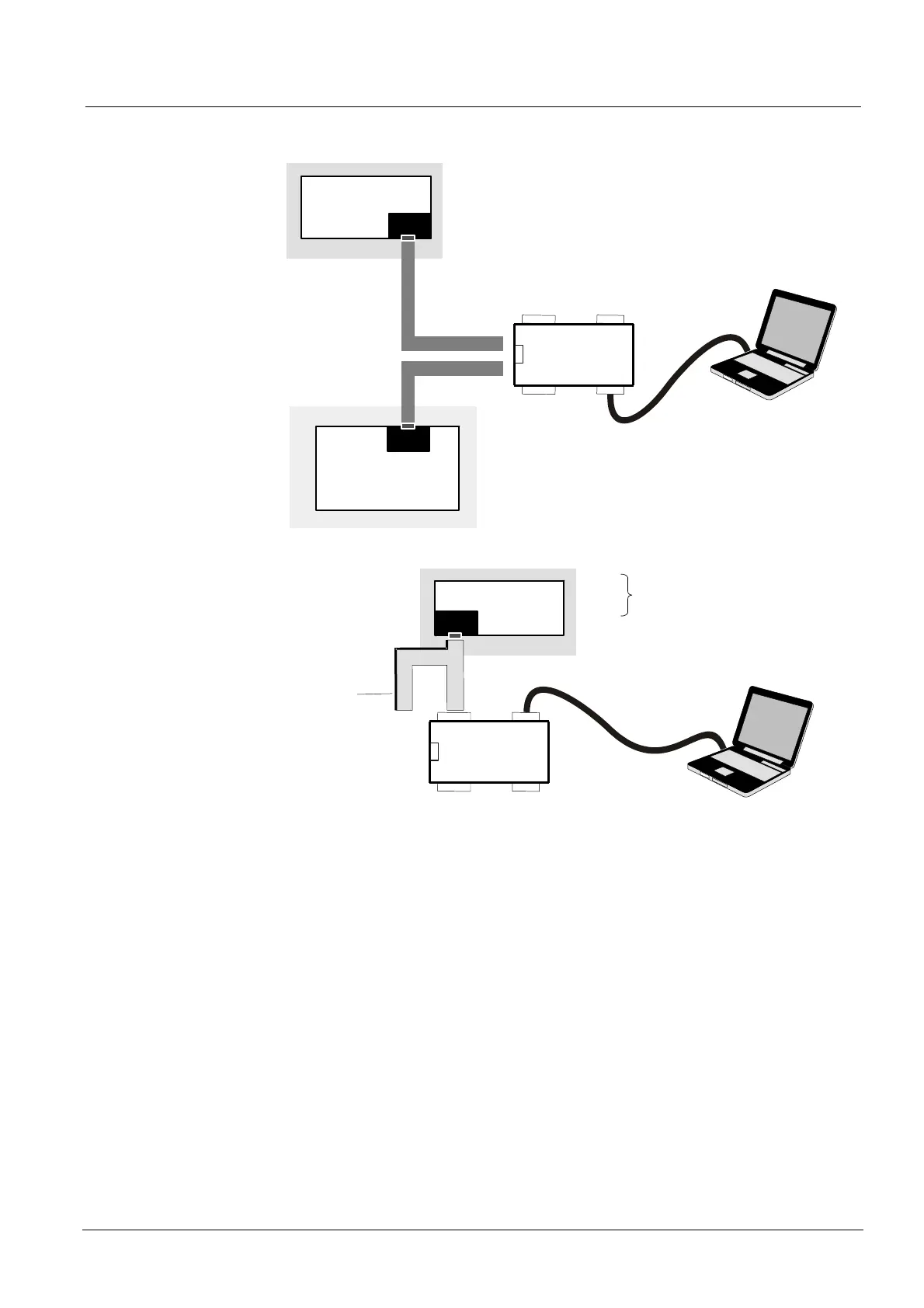

40.2 Download system data
40.2.1 61.2.1 B3Q4../B3Q6../E3X10./E3H02.
CPU
E3X101/102/103
ST2
AlgoPilot B3Q6..
CU/P
Operating unit
ST2
Maintenance-PC
with
‘AlgoWorks’
B3D021
Modembox
K2A2
K1A1
ST1
B3Q4..
Gateway E3H021
ST2
F14E320
Red marking
B3D021
Modembox
K2A2
K1A1
ST1
S5-1
S5-2
Both set as 'external'
(ON) for download
Maintenance-P
C
with ‘AlgoWorks’
E3H020
Functions at "Service technician" level
– If necessary, load new application software (Flash)
– Produce/add to logical structure for system
– Define user functions (system-specific)
– Define/correct user text
– Detector localization
– Data transfer of user functions
Components
B3D021 5052590001 Modem box for AlgoWorks (DUAL RS232 ITF) Complete with 20-pole flat cable, L=0.2 m
– 5053300001 Flat cable L=0.2 m As spare part
F14E320 4514390001 Y-flat cable, 14-wire, 0.5 m Options for programming E3H021
