Siemens AlgoRex CS1140 - Power Supply for Remote Transmission Devices and Options

Power supply
98
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011

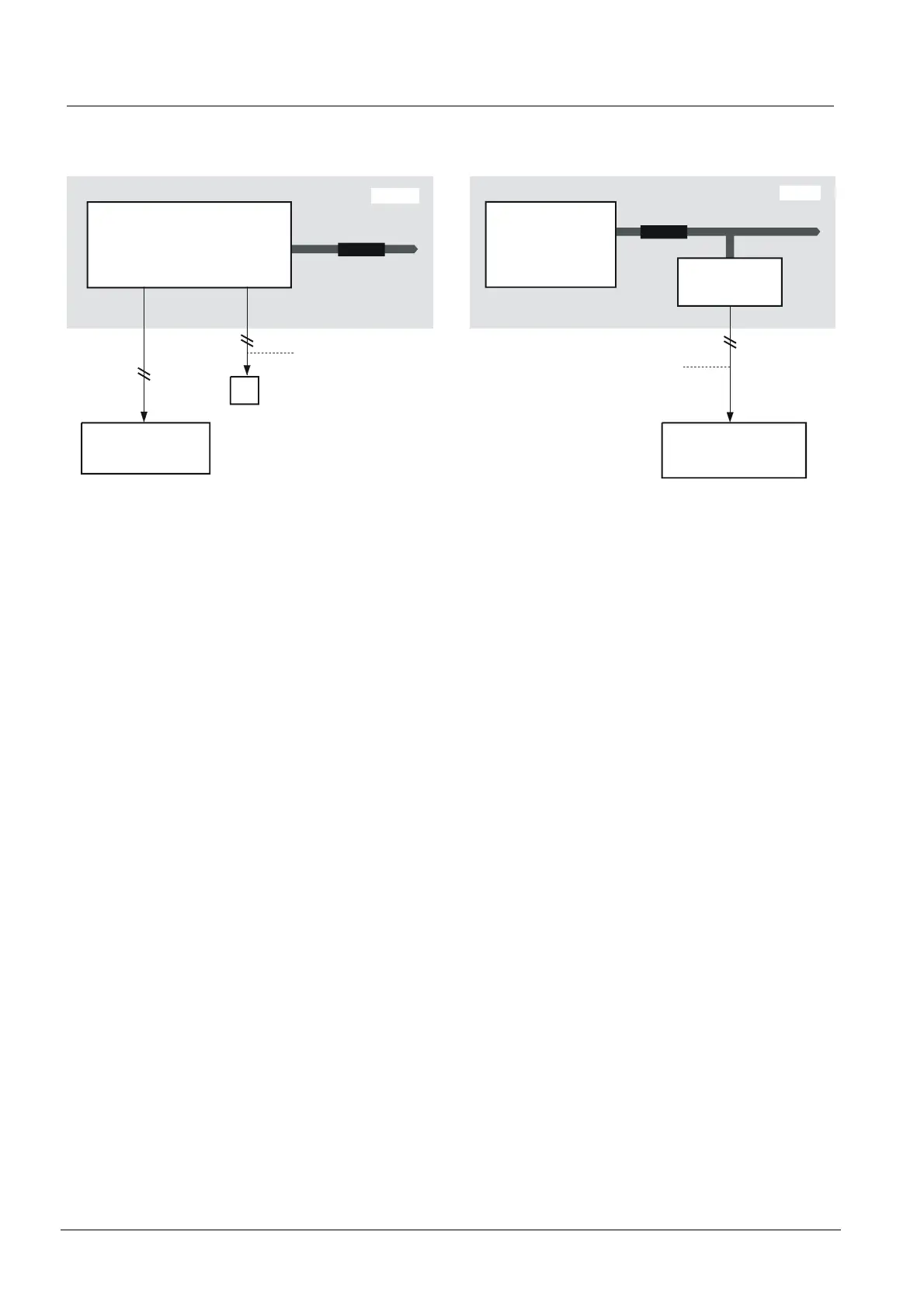

35.5 Power supply for remote transmission devices and options
– With CC11 –> devices are connected to E3X10.
– With CI11 –> devices are connected to E3G070
E3X10.
RT
other equipment
(z.B. printer)
Cable set
required
Z3I390
I-Bus
Remote transmission
or other equipment
(e.g. printer)
I-Bus
AlgoPilot B3Q...
E3G070
24V / 0.63A
for RT: Cable set
required
Z3I390
24V / 0,63A
FÜ: 24V / 2ARes: 24V / 2A
CC11
CI11
FÜ = Remote transmission
Components
B3Q... …... AlgoPilot operating units All AlgoPilot variants –> see page 47
E3X102 6290250001 Control panel module Flash ROM and 1MB RAM fitted
E3X103 6290380001 Control panel module Flash ROM and 2MB RAM fitted
E3G070 5466610001 'Universal' control plug-in module For alarm devices and control outputs
E3C011 5054790001 Plug-in battery charging module
B2F020 A5Q00025281 Converter 115/230 V AC ->29.6 V DC, 6 A
B2F040 5102990001 Converter 115/230 V AC ->29.6 V DC, 3.5 A
FA2006-A1 A5Q00019356 12 V / 24 Ah battery
FA2007-A1 A5Q00022897 12 V / 38 Ah battery
FA2005-A1 A5Q00019677 12 V / 15 Ah battery
