Siemens AlgoRex CS1140 User Manual

LON bus devices
79
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011

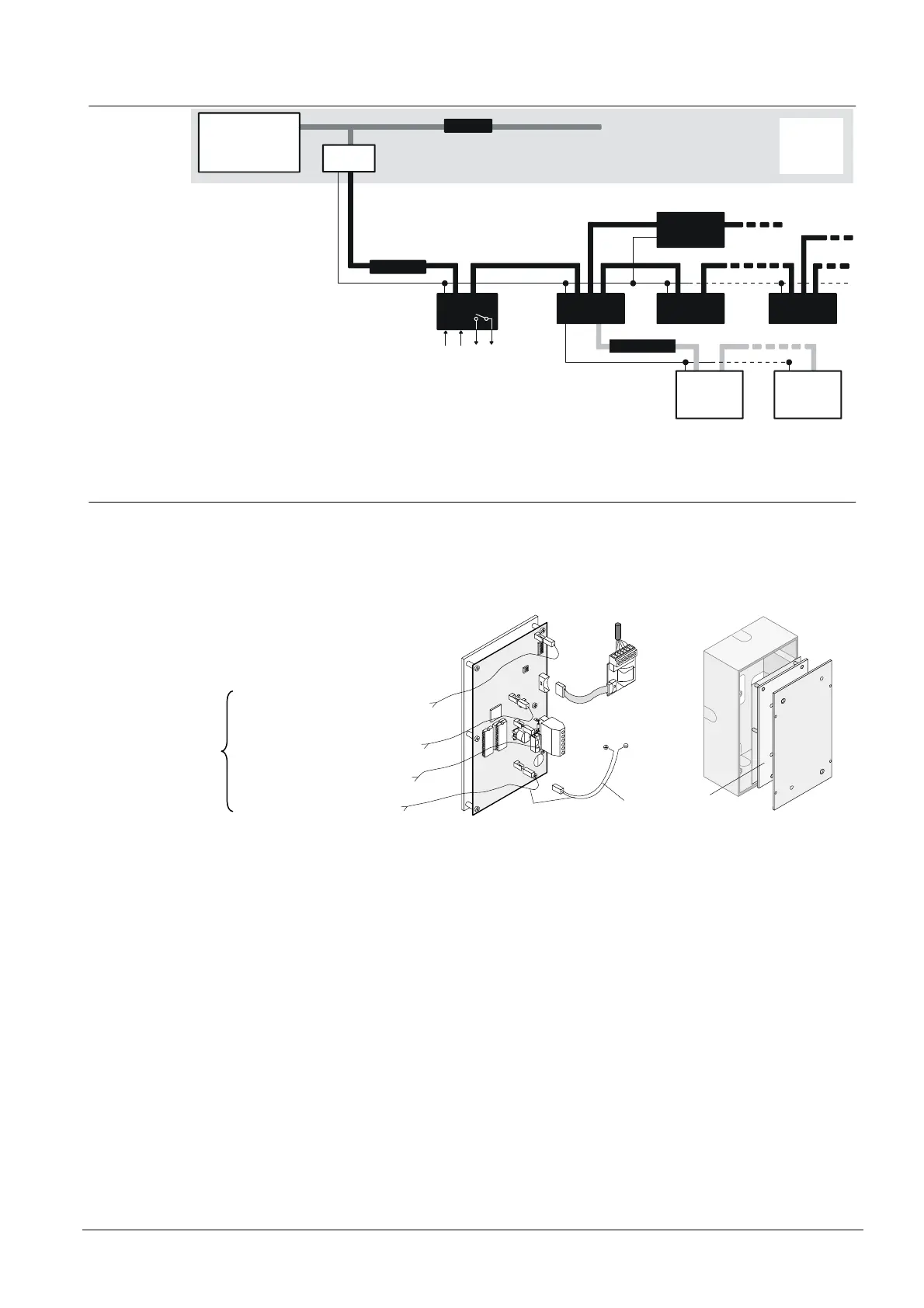

28.3 LON bus as free topology
24VDC
24VDC
(not monitored)
I-Bus
K3I050
Data bus
B3Q580
B3Q580
B3Q590/
595
max. length of LON-Bus 500m
K3I110
LON-Bus
CC11
CI11
CT11
E3I040
E3X10.
or
B3Q...
K3R072
or
B3R051
K3R072
or
B3R051
For details see K3R072 –> page 76 or
B3R051 –> page 51
28.4 Mimic display converter K3I050
 Permits mimic display activation K3R072 or parallel display B3R051 to be con-
nected (max.24 devices, but just max. 8 addresses)
 Various local inputs/outputs
Measurements:
106 x 200 x 14 mm For K3R072/B3R051
The functions of these
inputs/outputs relate
to the K3R072 and/or
B3R051
Input for 'Buzzer off'
button
Input for 'Lamp test'
button
'Buzzer' output
'Operation' LED output
K3I050
Z3I530
Z3I520
50cm
Lon-Bus 24V
H23G230
K3I050
Z3B230
