AlgoPilot B3Q... operating terminal
49
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011

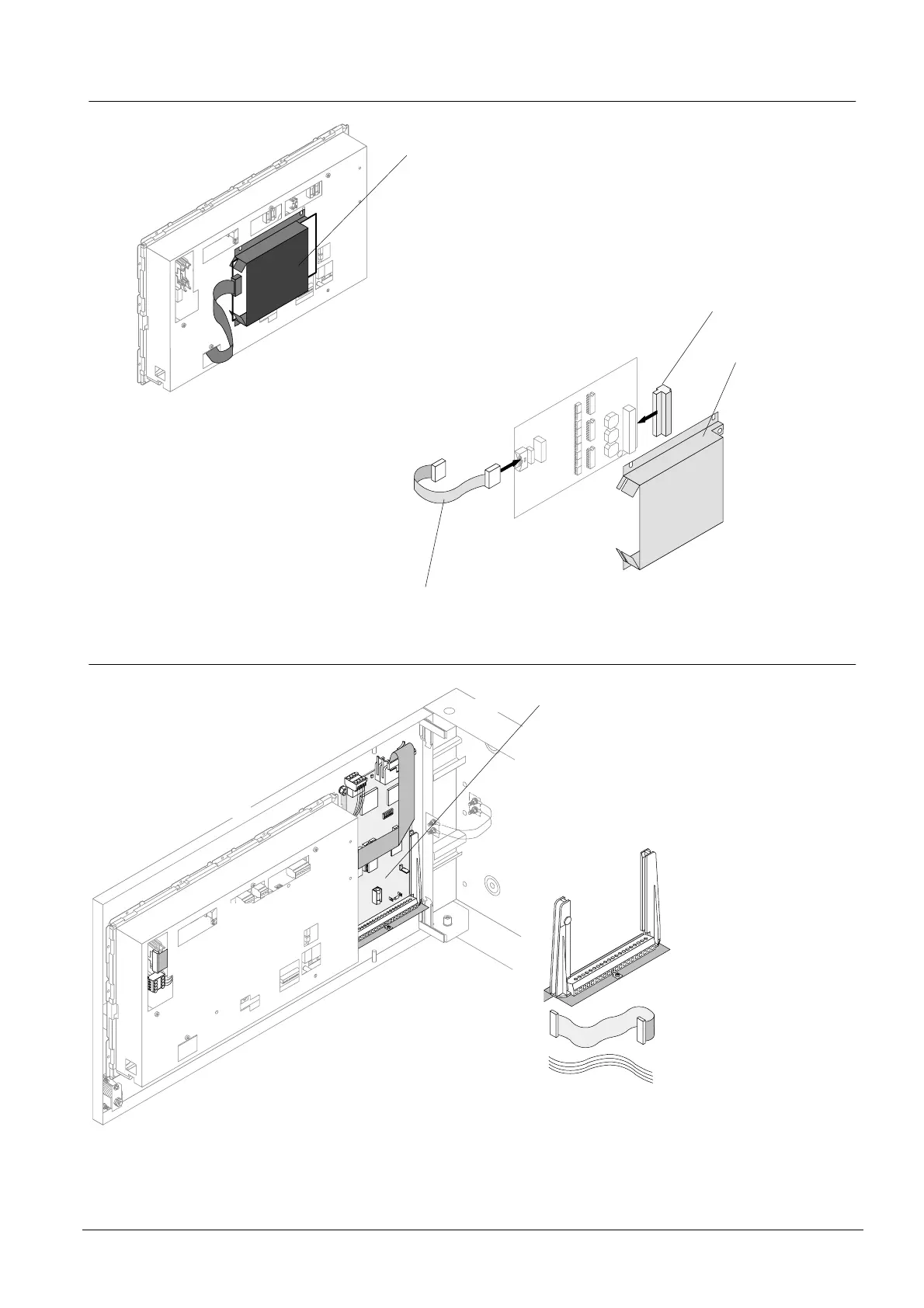

17.1.2 Positioning of E3I020 RS232 plug-in module and PSA interface board K3I090
RS232 plug-in module E3I020 is secured to the rear of the operating terminal
using option Z1B020.
For installation details for E3I020, see docu-
ment 1393
The PSA interface board K3I090 is secured to the rear of the operating terminal
using option Z1B060.
–> For installation details for K3I090, see document 1669
Scope of supply for
Z1B020:
12-pole socket terminal
strip
Installation material
Shielding hood
Use flat cable F20A020
17.1.3 Positioning E3I040 I bus/LON plug-in module
LON plug-in module E3I040 connected on I bus of a
remote AlgoPilot 'CT' can only be installed in housing
H28G200
–> For installation details for E3I040, see document
1393
Scope of supply for Z1B070:
– Installation bracket with board holder and terminal
block numbered in red
– I bus flat cable and supply cable
AlgoPilot B3Q...
H28G200
H28T110
