Siemens AlgoRex CS1140 User Manual

Power supply
97
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011

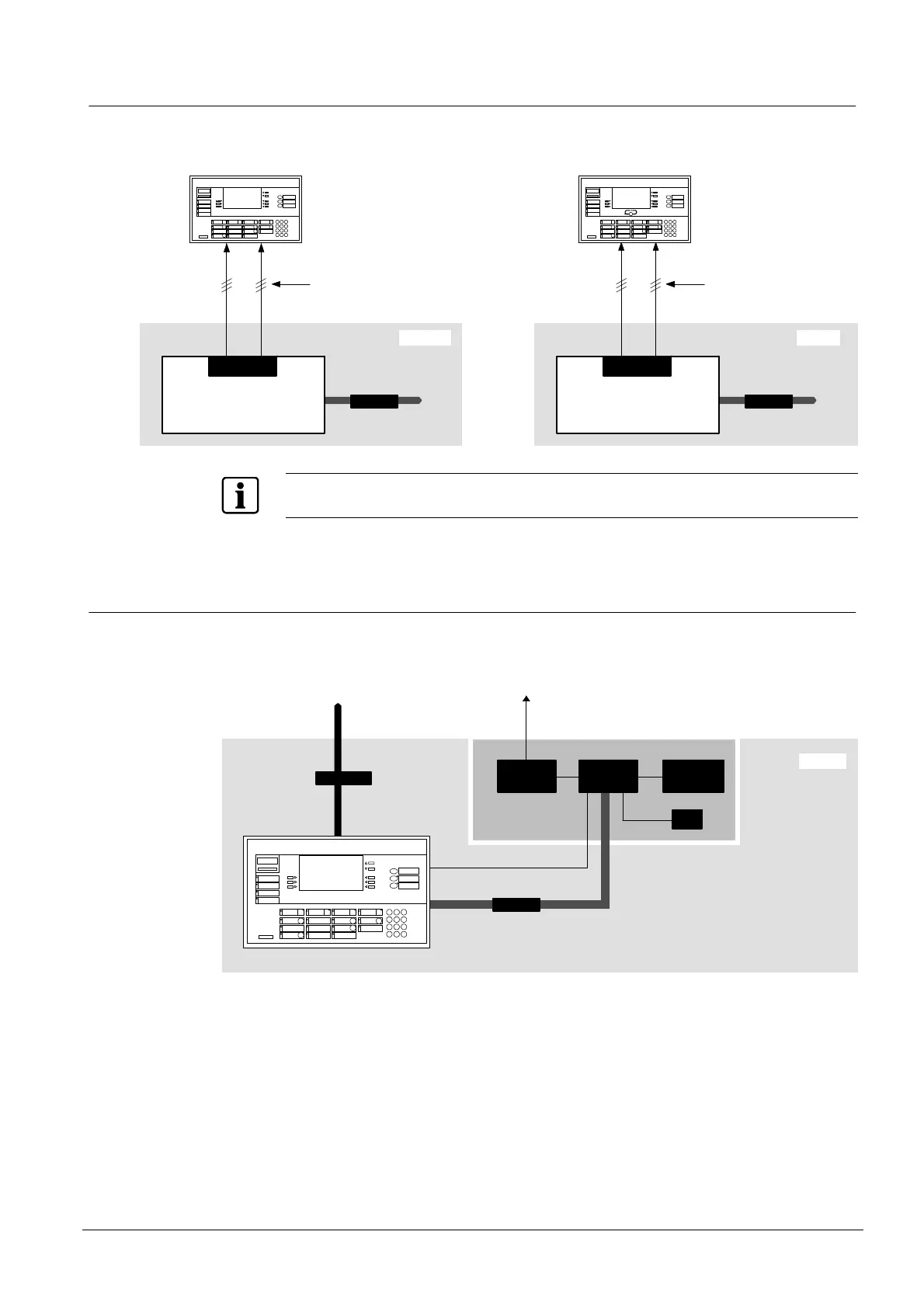

35.3 Operating unit with power supply as of control panel
– As of CC11 –> operating unit is connected to E3X10.
– As of CI11 –> operating unit is connected to AlgoPilot B3Q…
E3X10.
Output 1
+ / - / Earth
Output 2
I-Bus
AlgoPilot B3Q...
+ / - / Earth
I-Bus
24V / 2A 24V / 2A
CC11
CT11 CT11
CI11
Output 1 Output 2
Note:
Second supply output needed for operating units that have to satisfy EN54 only
(at least 1 operating unit per system).
35.4 Operating unit with autonomous power supply
– For AlgoPilot B3Q… operating units located far away
– Operating unit and power supply can be fitted in H38 housing –> see page 51
mains
29.6V
Batteries
FA...
E3C011
I-Bus
C-Bus
TF*
B2F020
B2F040
CT11
AlgoPilot B3Q...
* TF = temperature sensor for battery temperature monitoring
