Siemens AlgoRex CS1140 User Manual

Printer interface
91
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011

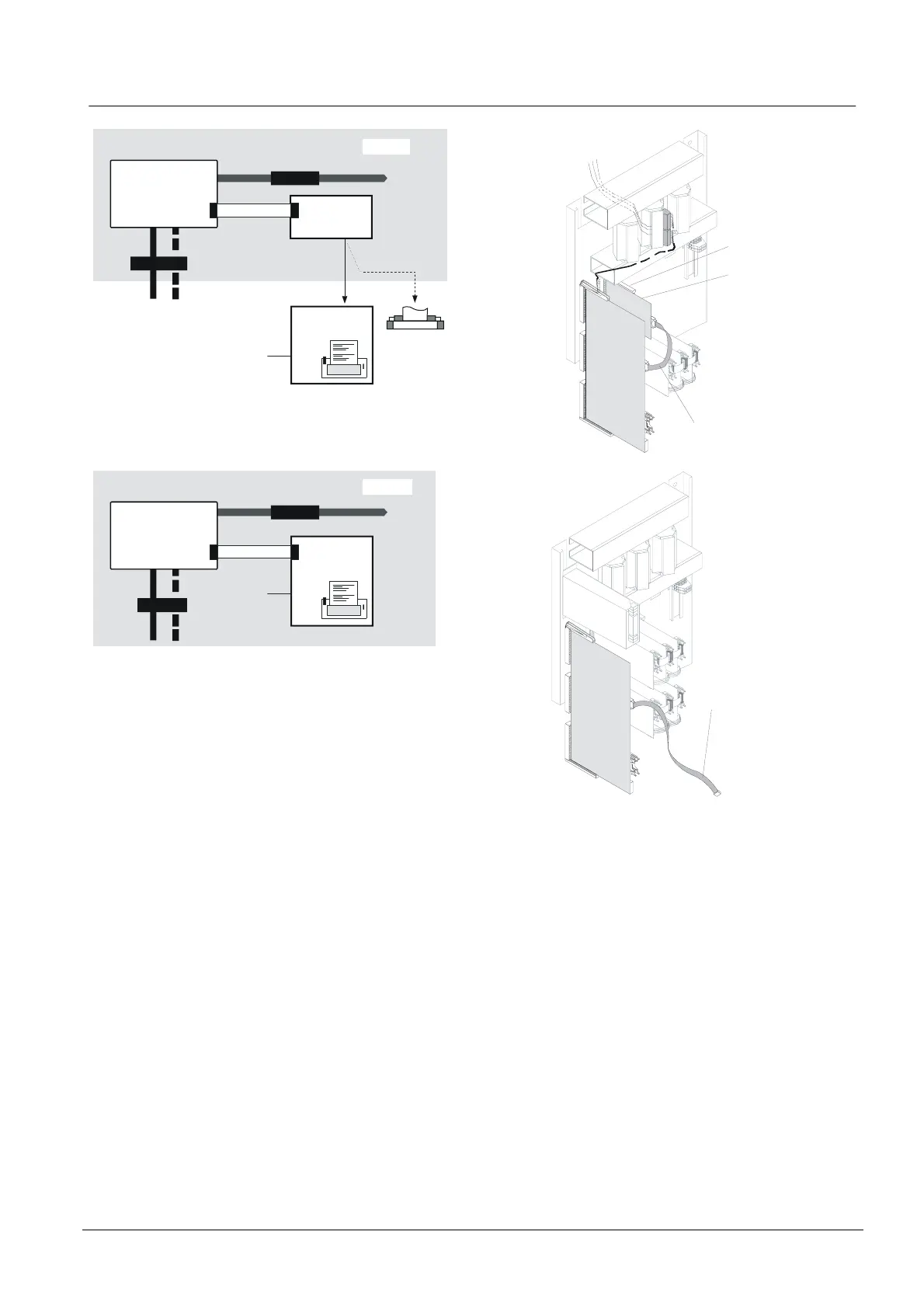

33.3 CC11 usage variant
E3X10.
I-Bus
E3I020
RS232
C-Bus
CC11
ST2
F20A020
ST1
X2
B2Q191
24VDC
K2
K3
or
(9...36VDC)
max.1000m
F20A020
zum Drucker
E3I020
Z1I030/050
E3X10.
E3X10.
I-Bus
(TTL)
C-Bus
ST2
B2Q191
24VDC
K2
A3
F20A410
max. 1m
CC11
Condition:
– B2Q191 printer is in the same housing as the main CPU (E3X10.) or
in a neighboring housing
– With this application, the earth connection of the 'K3-5' terminal of
K3L080 must be routed to the housing, otherwise ground fault is pro-
duced (see document 001260)
F20A410
zum Drucker
B2Q19
1
E3X10.
Components
B2Q191 4848880001 Tape printer 240 x 340 mm, 9 . . .36 V DC
E3I020 4602390001 RS232 plug-in module Level adjustment HCMOS –> RS232
Z1I030 4755090001 Connection cable, 19-wire with board hol-
der, 0.5 m
Also for internal cabling in housing H47…
Z1I050 4755250001 Connection cable, 19-wire with board hol-
der, 0.8 m
Also for internal cabling in housing H67…
Z1B020 4759070001 Installation options For securing E3I020 on the rear of AlgoPilot B3Q…
F20A020 4763170001 20-wire 0.165 m 'Micro' flat cable
F20A410 4953270001 20-wire 0.165 m 'Micro' flat cable
