Siemens AlgoRex CS1140 User Manual

Bus systems
15
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011
6 Bus systems

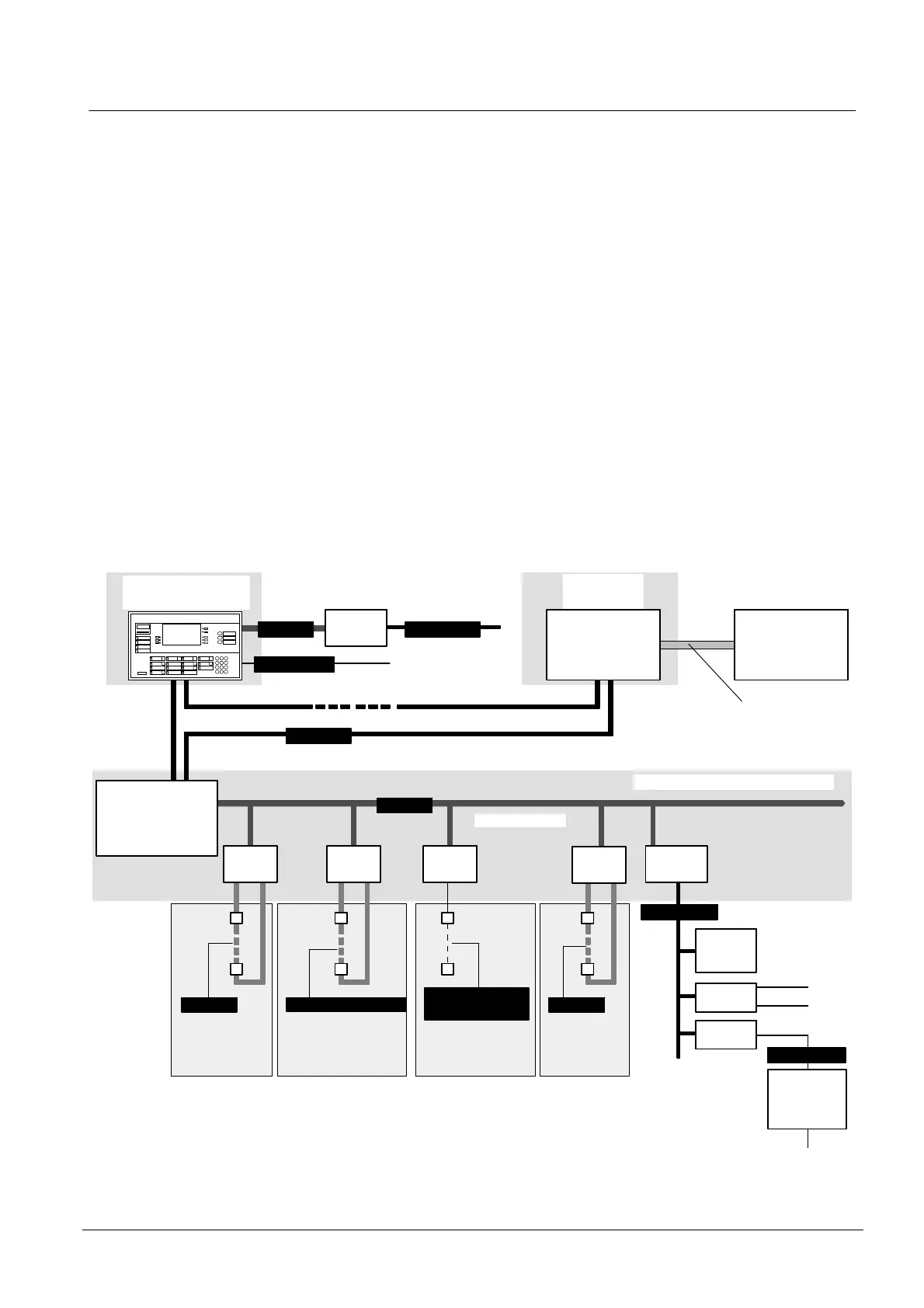

There are 6 levels of communication in the CS1140 fire detection system:
C bus
 Local data bus between control panel(s), operating console(s) and gateway(s)
I bus
 Internal data bus between the individual plug-in modules in the control panel (li-
ne modules, control modules, etc.)
D bus (interactive detector line / AnalogPLUS bus / collective detector line)
 Local detector bus; links the detector with the control panel
FDnet
 Local device bus; links the Sinteso
TM
devices with the control panel
LON bus
 Local data bus for floor display/and operating terminal, mimic display converter
and I/O card
Data bus
 Local data bus for parallel displays, mimic displays or relays
Gateway
CK11
I-Bus
Control unit CC11, CI11
E3M... E3M... E3M...
Line modules
E3X10.
or
AlgoPilot B3Q...
CPU:
interactive
detectors
collective
detectors
AnalogPLUS
detectors
Control terminal
CT11
E3H021
DMS
LMS modular
(Host system)
C-Bus
K3I050
B3Q580/
B3Q590/
B3Q595
E3I040
LON-Bus
D-Bus
AnalogPLUS-Bus
collective
detection line
B3R051
or
K3R072/
K3G060
CERLOOP / CERBAN
K3I110
Data bus
In-/outputs
E3I040
I-Bus
LON-Bus
Data bus
E3M...
addressable
SintesoTM
devices
FDnet
