Siemens AlgoRex CS1140 - 28 LON bus devices

LON bus devices
78
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011
28 LON bus devices
28.1 Features
 Activation via local 'LON' communication bus
 4 different device types
– B3Q580 = plain text display terminal
– B3Q590/595 = plain text operating terminal
– K3I050 = LON/mimic display converter
– K3I110 = LON I/O board
 Activation via LON plug-in module E3I040 (converter between I bus and LON
bus)
 The 'LON bus' function is available once per 'CI' / 'CT' and 'CC' station type
 Max. 32 devices per LON bus (device types can be mixed in any way)
 Monitored two-wire bus without loop line function
 All devices require a separate supply line as of E3I040
 LON bus line management
– As 'Stub line' up to 1000 m (without T-branches)
– As 'Free topology' up to 500 m (length of line to all devices added together)
(with 'MICC' : as 'Stub line' ....700 m / as
'Free topology' ...300 m)
– With special cable (Belden 85102 or 8471) and as 'Stub line' up to 2700 m
– Possible via twisted line only (twisted in pairs, 10 twists a meter)
 CPU-wide functions possible
 B3Q59x: 3 LEDs can be replaced. Permits application with different LED color.

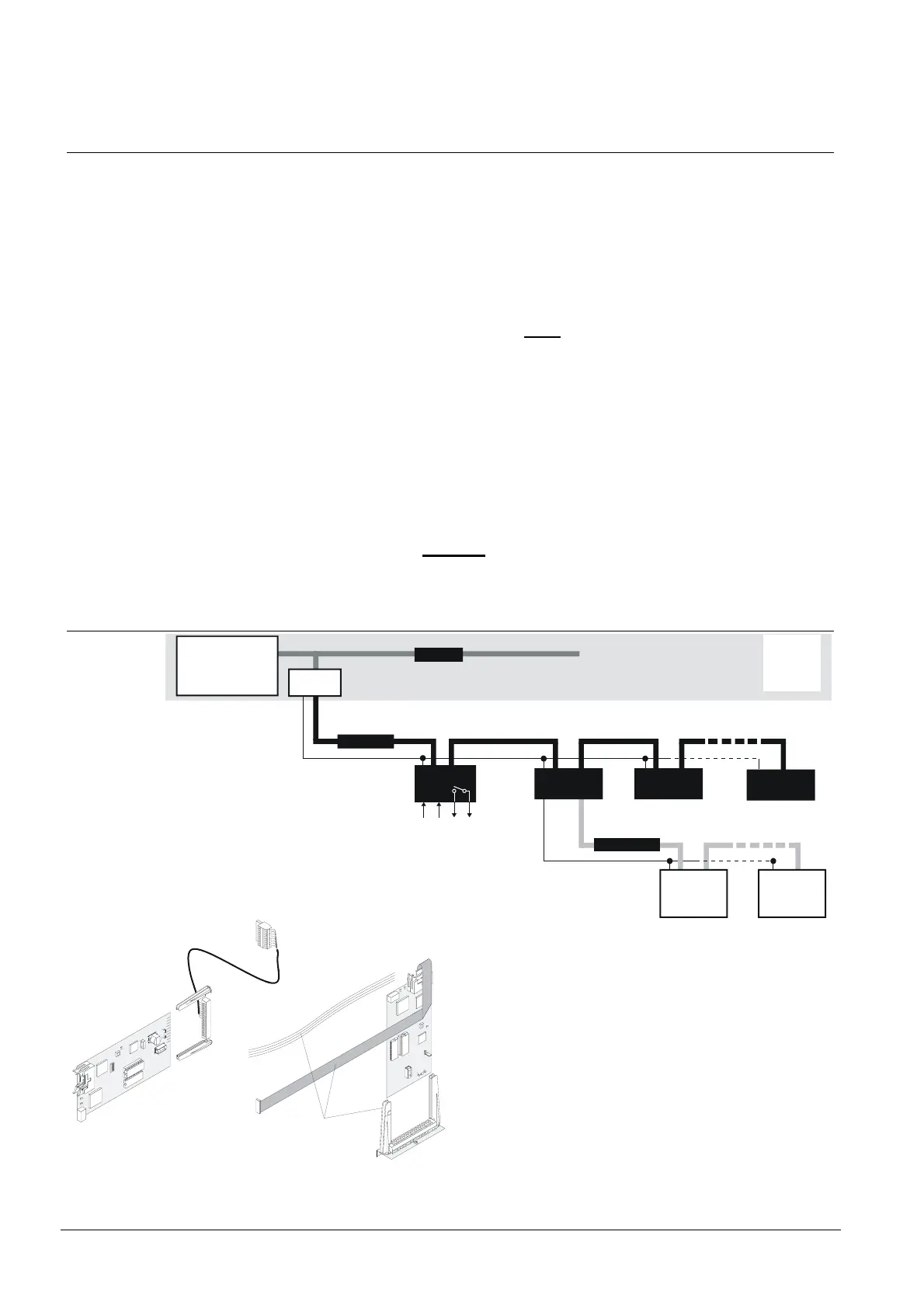

28.2 LON bus as stub line
max. length of LON-Bus 1000m
24VDC
CC11
CI11
CT11
E3X10.
or
B3Q...
I-Bus
K3I050 B3Q580
B3Q590/
595
LON-Bus
E3I040
K3I110
24VDC
(not monitored)
Data bus
K3R072
or
B3R051
K3R072
or
B3R051
E3I040
Z1B070
E3I040
Z1I100/110
For details see
K3R072 –> page 76 or
B3R051
–> page 51
