Siemens AlgoRex CS1140 User Manual

LON bus devices
80
Building Technologies 008725_h_en_--
Fire Safety & Security Products 06.2011

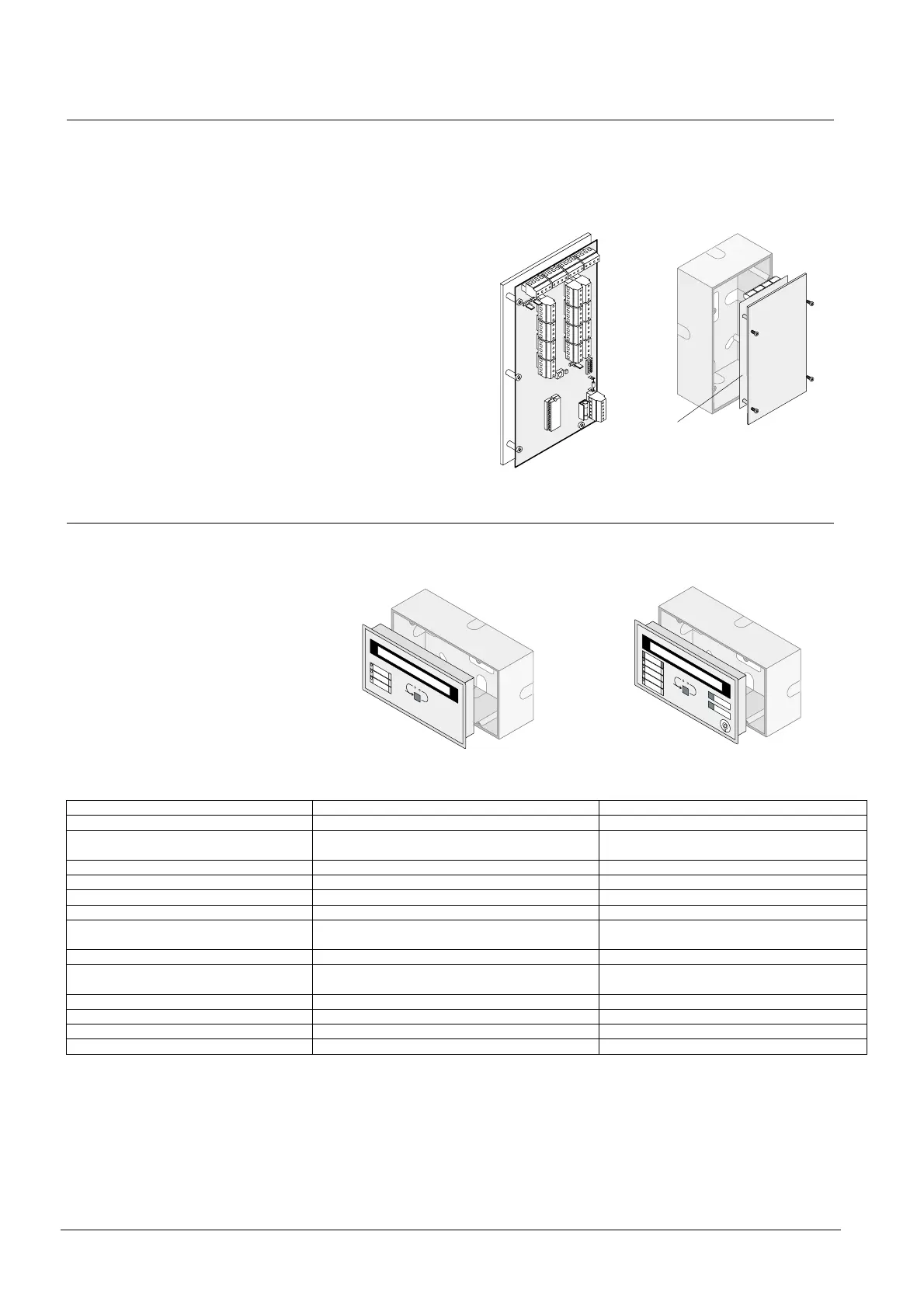

28.5 LON I/O board K3I110
 Input/output board
– 16 programmable monitored control inputs
– 16 programmable control outputs
Measurements:
122 x 220 x 14 mm
K3I110
H23G230
K3I110
28.6 Display devices B3Q580 and B3Q590/595
 Both devices with identical sizes
 For recessed mounting, see page 55
B3Q580
H23G230
B3Q590
B3Q595
H23G230
B3Q590 (Nordic lock)
B3Q595 (KABA lock)
Function B3Q580 plain text display terminal B3Q590/595 plain text operating terminal
LCD 2x40 characters, yellow backlit
 
Alarm events display All OBJECTS from
1..16 selectable SECTIONS
All OBJECTS per station (cannot be selected)
Fault events display Can be selected (yes/no via AlgoWorks) Can be selected (yes/no via AlgoWorks)
Selectable display operating modes 14 (can be selected via AlgoWorks) 14 (can be selected via AlgoWorks)
Buzzer can be turned off
 
3 programmable LEDs –

'Continue' function key

(also used for Buzzer off + lamp test)

(also used for Buzzer off + lamp test)
'Acknowledge' / 'Reset' function keys
–

Key switch for operating access
–
B3Q590 = Nordic
B3Q595 = KABA
Can be fitted in housing H23G230
 
Insertable inscription strips
 
Operating voltage 9...45 V DC 9...45 V DC
Current consumption at 24 V Standby: 20 mA / max: 180 mA Standby: 18 mA / max: 185 mA
